ZF 4143.121.005 OIL PIPE
ZF Part Number: 4143.121.005 (also written as 4143121005 / 4143.121.005 / 4143 121 005)
Application / Compatibility
| Assembly | Section | Model |
|---|---|---|
| 4143.000.126 | OIL PIPE | — |
| 4143.000.130 | OIL PIPE | — |
| 4143.000.132 | OIL PIPE | — |
| 4143.000.137 | OIL PIPE | — |
| 4143.000.141 | OIL PIPE | — |
| 4143.000.143 | OIL PIPE | — |
| 4143.000.152 | OIL PIPE | — |
| 4143.000.154 | OIL PIPE | — |
| 4143.000.160 | OIL PIPE | — |
| 4143.000.162 | OIL PIPE | — |
Related Parts in Same Assembly
- 4143.101.009 — HOUSING (Qty: 1)
- 4143.101.413 — HOUSING (Qty: 1)
- 4143.102.002 — INPUT (Qty: 1)
- 4143.102.414 — INPUT (Qty: 1)
- 4143.103.003 — OUTPUT (Qty: 1)
- 4143.103.402 — OUTPUT (Qty: 1)
- 4461.173.047 — DIFFERENTIAL (Qty: 1)
- 4143.115.003 — PLANETARY DRIVE (Qty: 1)
Frequently Asked Questions
What is ZF part number 4143.121.005?
ZF 4143.121.005 is an OEM oil pipe produced by ZF Friedrichshafen AG, one of the world’s largest automotive suppliers. It is designed for use in ZF powershift transmissions, specifically in models such as various ZF transmission models. This is a genuine ZF component, not an aftermarket reproduction.
Where is ZF 4143.121.005 installed in the transmission?
This oil pipe is located in the oil pipe area of the transmission. It appears in 30 different assembly configurations.
How do I look up ZF part 4143.121.005?
This part can be found under several formats: 4143121005 / 4143.121.005 / 4143 121 005. All formats refer to the same genuine ZF component. When ordering, any of these numbers will work. The official ZF catalog uses the dotted format (4143.121.005).
Where can I buy ZF 4143.121.005?
You can purchase genuine ZF 4143.121.005 from PartsZF.com (operated by Tianjin Xiaohang Construction Machinery Co., Ltd). We maintain direct supply channels with ZF and offer worldwide shipping. Contact our parts specialists for current pricing and lead times.
Need this part? Contact our ZF parts specialist for pricing and availability. We ship worldwide with OEM quality guarantee.

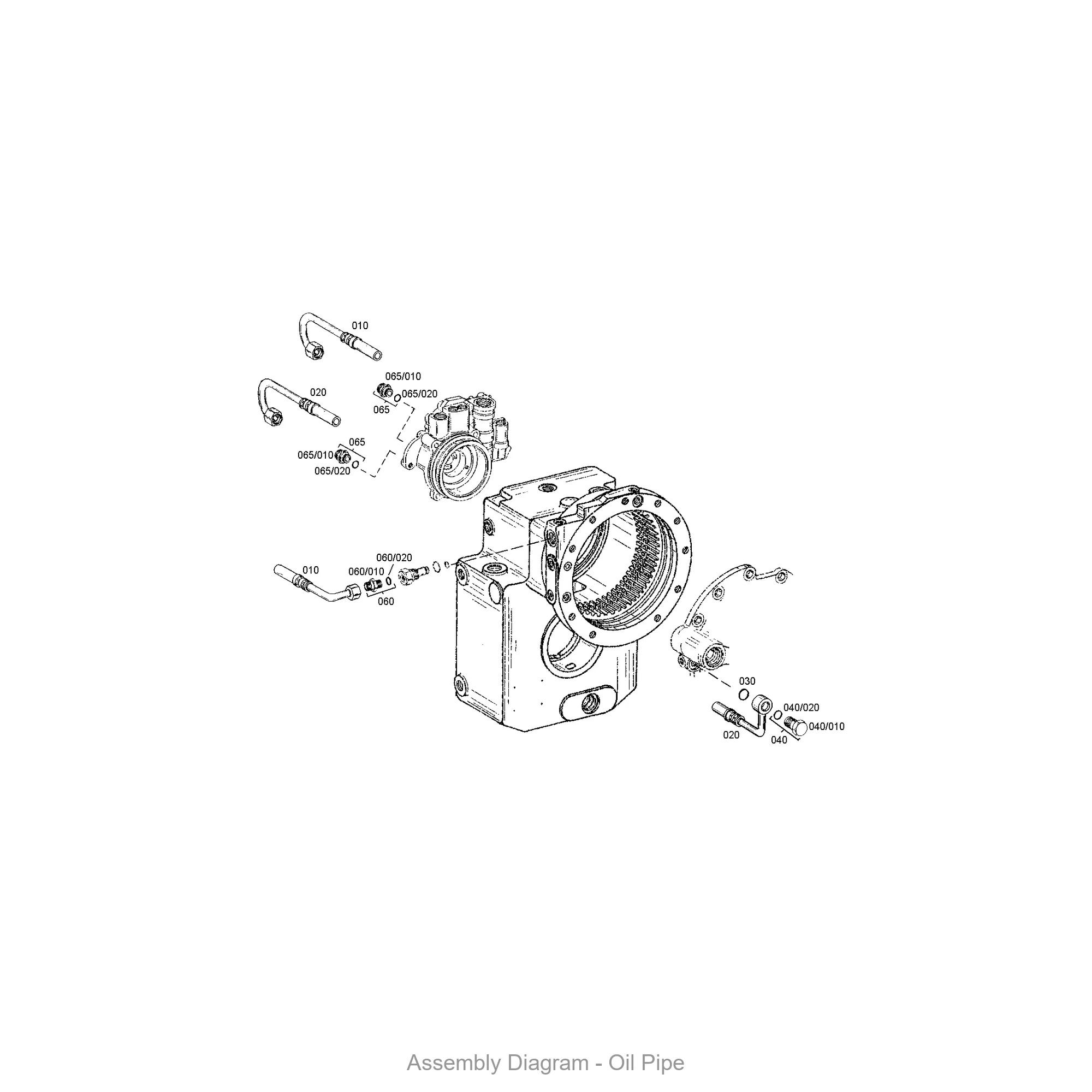

Exploded View / Assembly Diagram
The diagram below shows where ZF 4143.121.005 is located within the transmission assembly.
