Overview

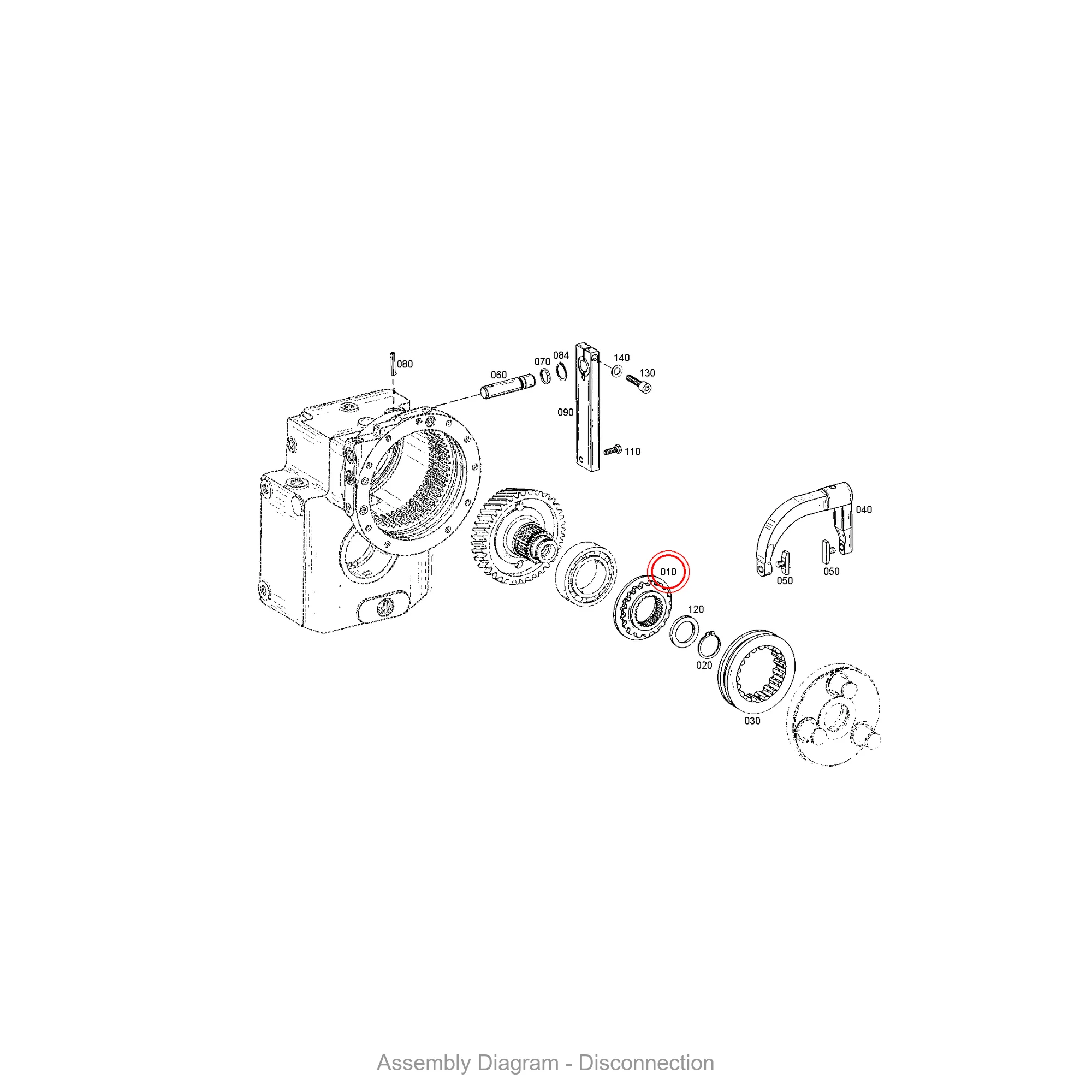

The ZF 4143.334.011 SHIFTING DOG is a critical mechanical component within the HL 100 and HL 270 series transmissions. This OEM genuine part functions as the primary engagement mechanism, transferring rotational force from the shift fork to the synchronizer assembly. Positioned directly on the main shaft, the shifting dog ensures precise gear selection by locking into corresponding grooves during transmission operation. The SKU 4143.334.011 is manufactured to ZF’s exacting tolerances, guaranteeing a perfect fit and reliable performance in heavy-duty industrial applications. When paired with the 4143101009: HOUSING and the 4143301025: HOUSING, this component forms a sealed, high-torque assembly that withstands extreme operational stresses.
Symptoms of Failure
- Gear Slipping Under Load: A worn shifting dog fails to maintain positive engagement, causing the transmission to unexpectedly jump out of gear during acceleration or hill climbs.
- Hard Shifting or Grinding Noises: Damaged engagement teeth produce audible grinding sounds when attempting to shift, particularly between 2nd and 3rd gears.
- Metallic Debris in Transmission Oil: As the shifting dog wears, small metal particles contaminate the fluid, often visible during oil changes or when inspecting the 0634313603: O-RING seal area.
- Intermittent Neutral Position: The transmission may momentarily disengage from gear, creating a dangerous “false neutral” condition that requires immediate attention.
Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | 4143.334.011 |
| Material | Case-hardened alloy steel (20MnCr5) |
| Overall Length | 68.5 mm |
| Outer Diameter | 42.0 mm |
| Internal Spline Count | 18 teeth |
| Weight | 0.34 kg |
| OEM Reference | ZF 4143.334.011 |
| Hardness Rating | 58-62 HRC |
Compatibility
This shifting dog is engineered for ZF’s HL series transmissions, specifically the HL 100 and HL 270 models. It is also compatible with the WG180, WG200, and WG210 series when used in conjunction with the 4475280018: SCREW PLUG and proper seal kits. For complete assembly, always verify the condition of the 0501342341: SUPPORT RING and the 4143298457: SEAL KIT to prevent premature wear. The part also integrates with the 0634313591: O-RING and 0636101068: CAP SCREW for secure mounting. Additional compatible models include the Ecomat 4HP and 5HP series, though always cross-reference with your transmission’s serial number.
Related Components
| Part Number | Name | Function |
|---|---|---|
| 4143101009 | HOUSING | Encloses the shifting mechanism |
| 4143301025 | HOUSING | Secondary housing for shaft support |
| 0634313603 | O-RING | Seals the housing interface |
| 4475280018 | SCREW PLUG | Closes oil passages |
| 0501342341 | SUPPORT RING | Provides axial support for the dog |
| 4143298457 | SEAL KIT | Complete sealing solution |
| 0634313591 | O-RING | Secondary sealing element |
| 0636101068 | CAP SCREW | Fastens the housing assembly |
| 4143221013 | THROTTLE VALVE | Controls hydraulic pressure |
| 0634304484 | O-RING | Seals the throttle valve |
