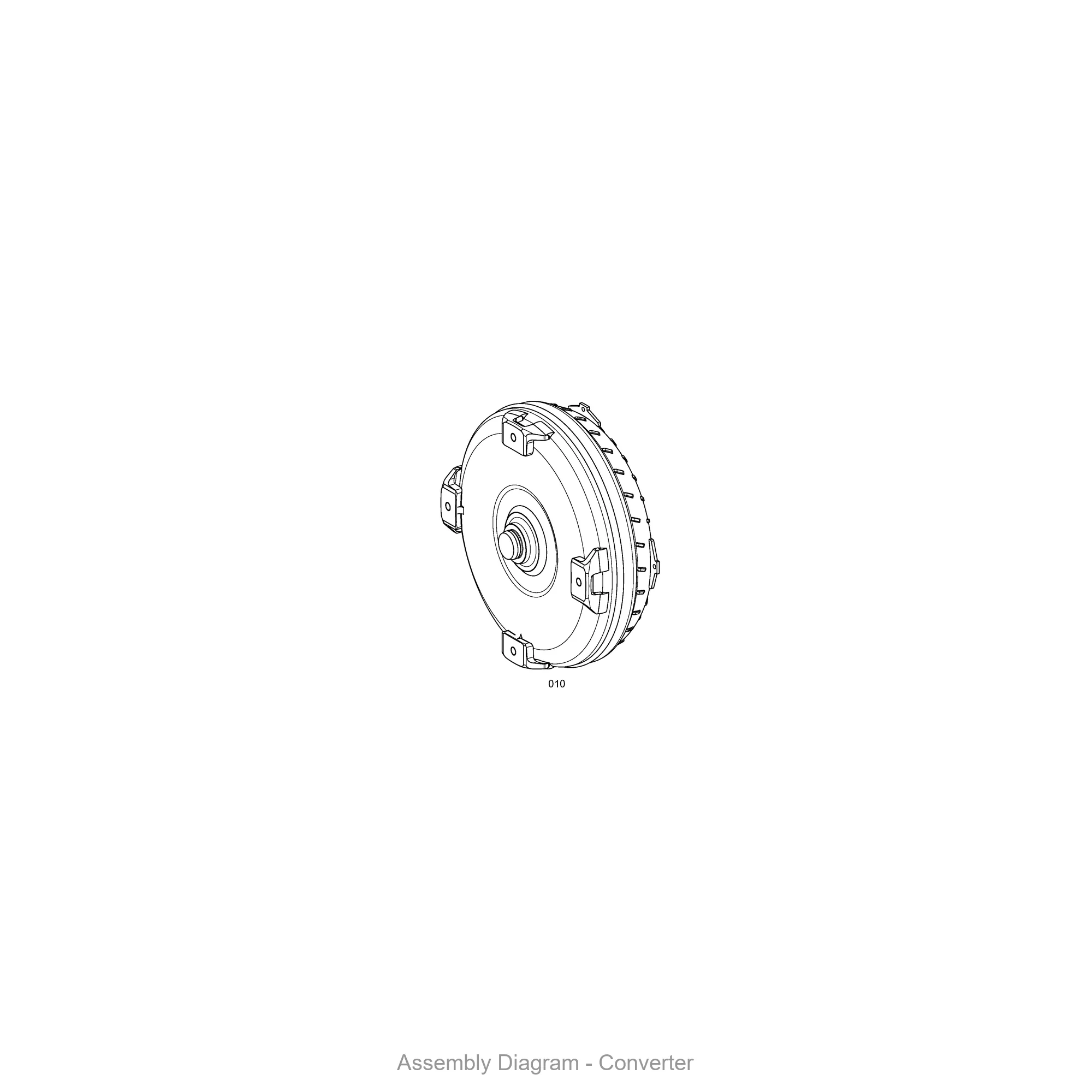

ZF 4166.034.186 CONVERTER Torque Converter Assembly | Complete Unit

Overview

The ZF 4166.034.186 CONVERTER Torque Converter Assembly is a critical hydraulic coupling component that sits between the engine flywheel and the transmission input shaft within the WG 210 Series. This complete unit transfers and multiplies engine torque through fluid dynamics, enabling smooth power delivery and load handling in heavy-duty industrial drivetrains. The SKU 4166.034.186 is a direct replacement assembly designed to restore factory-specified stall speed and lock-up performance. This converter works in concert with the TRANSMISSION HOUSING to maintain precise alignment and oil flow paths, ensuring reliable operation under sustained high-torque conditions.

Symptoms of Failure

• Shuddering or vibration during acceleration: A worn converter clutch or damaged turbine splines cause inconsistent torque transfer, often felt as a low-frequency shudder between 20-40 mph.
• Transmission fluid overheating and darkening: Internal stator clutch failure or excessive slippage generates abnormal heat, leading to burnt-smelling, discolored ATF and potential seal damage.
• Delayed or harsh engagement from Park to Drive: A failing one-way clutch or worn impeller hub reduces hydraulic pressure buildup, causing a noticeable lag or thud when shifting into gear.
• Audible rattling or grinding noises from the bell housing: Broken converter bolts or damaged flexplate mounting lugs produce metallic sounds, especially at idle or during gear changes.

Technical Specifications

Compatibility

This torque converter assembly is engineered for the ZF WG 210 Series powershift transmissions. It is also compatible with earlier WG 180 and WG 200 variants that share the same bell housing pattern and input shaft spline count. The converter interfaces directly with the HOUS.FRONT SECT and the HOUSING REAR PART to form the complete torque converter housing assembly. For units requiring a full rear enclosure, the HOUSING REAR SECTION provides the necessary sealing and bearing support. Common applications include ZF WG210, WG200, and WG180 series found in forklifts, wheel loaders, and industrial tractors.

Related Components

Frequently Asked Questions

Q: Can this torque converter be rebuilt, or must it be replaced as a complete unit?
A: While individual components like the stator clutch or turbine hub can theoretically be serviced, the 4166.034.186 is a welded, non-serviceable assembly in most cases. Replacement as a complete unit is strongly recommended to avoid balance issues and internal leakage.

Q: What is the typical stall speed range for this converter in a WG 210 transmission?
A: For standard industrial applications (e.g., wheel loaders), the stall speed typically falls between 1800 and 2100 RPM. Exact values depend on engine torque output and vehicle weight; always verify with your specific ZF application manual.

Q: Do I need to replace the flexplate or pilot bearing when installing this converter?
A: Yes, it is best practice to inspect and replace the flexplate (if warped or cracked) and the pilot bearing in the crankshaft. Using a worn pilot bearing can cause converter wobble and premature seal failure in the HOUS.FRONT SECT.
