ZF 4475.280.149 UNION SCREW
ZF Part Number: 4475.280.149 (also written as 4475280149 / 4475.280.149 / 4475 280 149)
Compatible ZF Transmission Models
This union screw is used in the following ZF transmission models:
- ZF 4 WG 201(4)
- ZF 4 WG 201(5)
- ZF 4 WG 260
- ZF 4 WG 260(2)
- ZF 4 WG 260(4)
- ZF 5 WG 260
- ZF 6 WG 201
Part Location in Assembly
| Section | Position No. | Qty |
|---|---|---|
| Control Unit | 060 | 2 |
| Countershaft | 290 | 1 |
| Oil Pipe | 430 | 6 |
| Oil Pipes | 432 | 6 |
Related Parts in Same Assembly
- 0501.317.160 — INDUCTIVE SENSOR (Qty: 1)
- 0750.131.053 — REPLACEMENT FILTER (Qty: 1)
- 4168.030.102 — CONVERTER (Qty: 1)
- 4642.231.127 — OIL LEVEL TUBE (Qty: 1)
- 4644.221.076 — SUCTION TUBE (Qty: 1)
- 4644.301.323 — TRANSMISSION HOUSING (Qty: 1)
- 4644.302.229 — INPUT SHAFT (Qty: 1)
- 4644.306.362 — GASKET (Qty: 1)
Frequently Asked Questions
What is ZF part number 4475.280.149?
ZF 4475.280.149 is an OEM union screw produced by ZF Friedrichshafen AG, one of the world’s largest automotive suppliers. It is designed for use in ZF powershift transmissions, specifically in models such as 4 WG 201(4), 4 WG 201(5), 4 WG 260, 4 WG 260(2), 4 WG 260(4). This is a genuine ZF component, not an aftermarket reproduction.
Which ZF transmissions use 4475.280.149?
This union screw is found in 7 ZF transmission variants, including: 4 WG 201(4), 4 WG 201(5), 4 WG 260, 4 WG 260(2), 4 WG 260(4), 5 WG 260, 6 WG 201. These transmissions are commonly used in wheel loaders, graders, and other heavy construction equipment. Contact us to verify fitment for your specific machine.
Where is ZF 4475.280.149 installed in the transmission?
This union screw is located in the control unit, countershaft, oil pipes area of the transmission. It appears in 30 different assembly configurations. In the service manual, look for position number 060 in the Control Unit section.
How do I look up ZF part 4475.280.149?
This part can be found under several formats: 4475280149 / 4475.280.149 / 4475 280 149. All formats refer to the same genuine ZF component. When ordering, any of these numbers will work. The official ZF catalog uses the dotted format (4475.280.149).
Where can I buy ZF 4475.280.149?
You can purchase genuine ZF 4475.280.149 from PartsZF.com (operated by Tianjin Xiaohang Construction Machinery Co., Ltd). We maintain direct supply channels with ZF and offer worldwide shipping. Contact our parts specialists for current pricing and lead times.
Need this part? Contact our ZF parts specialist for pricing and availability. We ship worldwide with OEM quality guarantee.

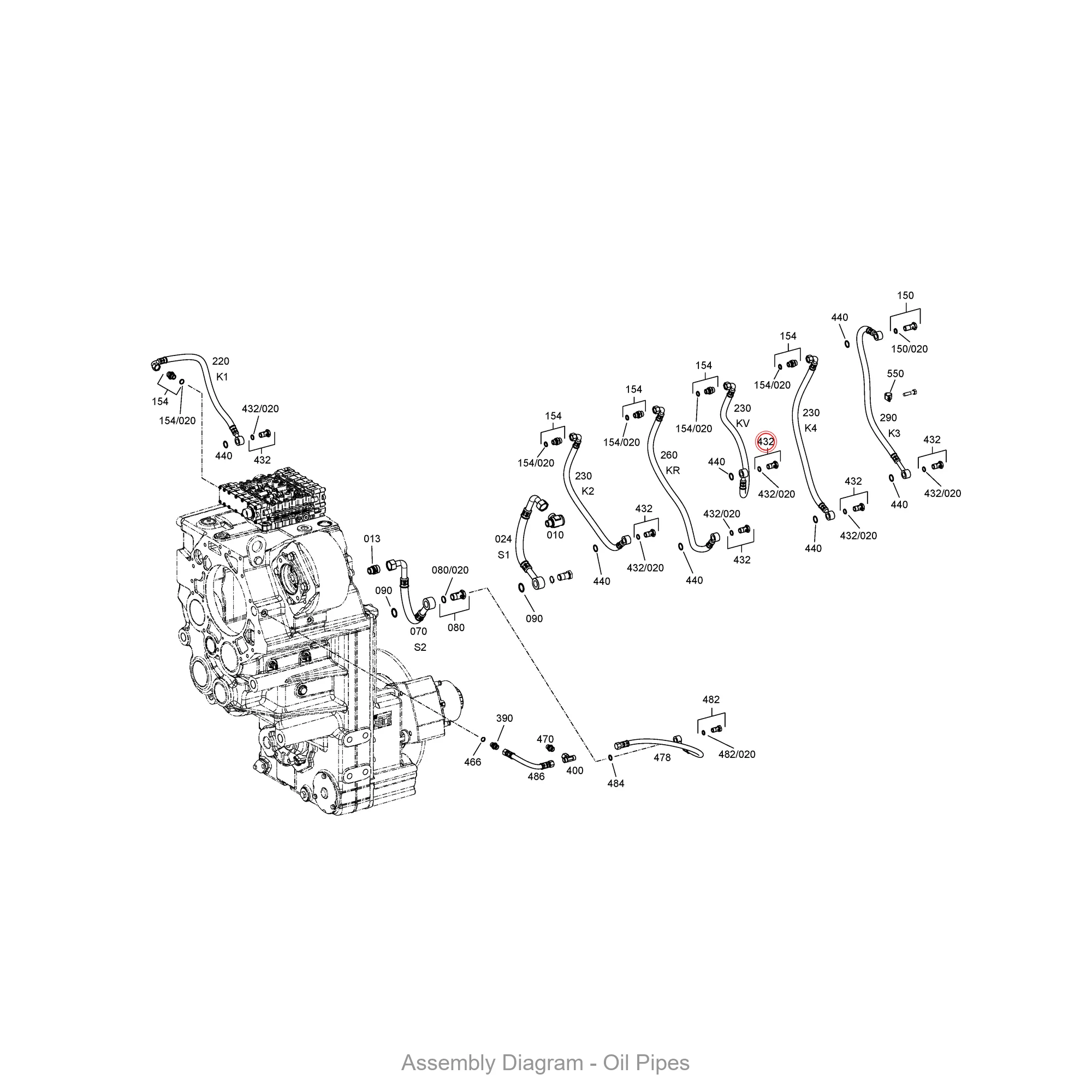

Exploded View / Assembly Diagram
The diagram below shows where ZF 4475.280.149 is located within the transmission assembly.
