ZF 4616.306.109 SCREW-IN SLEEVE
ZF Part Number: 4616.306.109 (also written as 4616306109 / 4616.306.109 / 4616 306 109)
OEM Cross Reference / Interchange Numbers
ZF 4616.306.109 (SCREW-IN SLEEVE) is the original manufacturer part. The following OEM and third-party part numbers are direct cross-references:
| Brand / OEM | Part Number | Type |
|---|---|---|
| 山东临工 | 7200001732 | OEM Cross Ref |
| 柳工 | SP106636 | OEM Cross Ref |
| 柳工 | SP106636RE | OEM Cross Ref |
This ZF part (4616.306.109) directly replaces the following OEM numbers: 山东临工: 7200001732; 柳工: SP106636, SP106636RE. All listed cross-reference numbers are confirmed compatible with ZF 4616.306.109.
Compatible ZF Transmission Models
This screw-in sleeve is used in the following ZF transmission models:
- ZF 3 WG 200
- ZF 4 WG 150
- ZF 4 WG 158
- ZF 4 WG 180
- ZF 4 WG 180(555)
- ZF 4 WG 200(555)
- ZF 4 WG 200(555/5)
- ZF 4 WG 65 II(D)
Part Location in Assembly
| Section | Position No. | Qty |
|---|---|---|
| Shift System | 1101/010 | 1 |
| Shift System | 620/010 | 1 |
Related Parts in Same Assembly
- 4616.101.101 — TRANSMISSION HOUSING (Qty: 1)
- 4616.101.405 — TRANSMISSION HOUSING (Qty: 1)
- 4616.102.057 — INPUT (Qty: 1)
- 4616.102.420 — INPUT (Qty: 1)
- 4616.103.048 — OUTPUT (Qty: 1)
- 4616.105.014 — OUTPUT (Qty: 1)
- 4616.106.016 — SHIFT SYSTEM (Qty: 1)
- 4616.159.021 — SHIFT SYSTEM (Qty: 1)
Frequently Asked Questions
What is ZF part number 4616.306.109?
ZF 4616.306.109 is an OEM screw-in sleeve produced by ZF Friedrichshafen AG, one of the world’s largest automotive suppliers. It is designed for use in ZF powershift transmissions, specifically in models such as 3 WG 200, 4 WG 150, 4 WG 158, 4 WG 180, 4 WG 180(555). This is a genuine ZF component, not an aftermarket reproduction.
Which ZF transmissions use 4616.306.109?
This screw-in sleeve is found in 8 ZF transmission variants, including: 3 WG 200, 4 WG 150, 4 WG 158, 4 WG 180, 4 WG 180(555), 4 WG 200(555), 4 WG 200(555/5), 4 WG 65 II(D). These transmissions are commonly used in wheel loaders, graders, and other heavy construction equipment. Contact us to verify fitment for your specific machine.
Where is ZF 4616.306.109 installed in the transmission?
This screw-in sleeve is located in the shift system area of the transmission. It appears in 30 different assembly configurations. In the service manual, look for position number 1101/010 in the Shift System section.
How do I look up ZF part 4616.306.109?
This part can be found under several formats: 4616306109 / 4616.306.109 / 4616 306 109. All formats refer to the same genuine ZF component. When ordering, any of these numbers will work. The official ZF catalog uses the dotted format (4616.306.109).
Where can I buy ZF 4616.306.109?
You can purchase genuine ZF 4616.306.109 from PartsZF.com (operated by Tianjin Xiaohang Construction Machinery Co., Ltd). We maintain direct supply channels with ZF and offer worldwide shipping. Contact our parts specialists for current pricing and lead times.
Need this part? Contact our ZF parts specialist for pricing and availability. We ship worldwide with OEM quality guarantee.

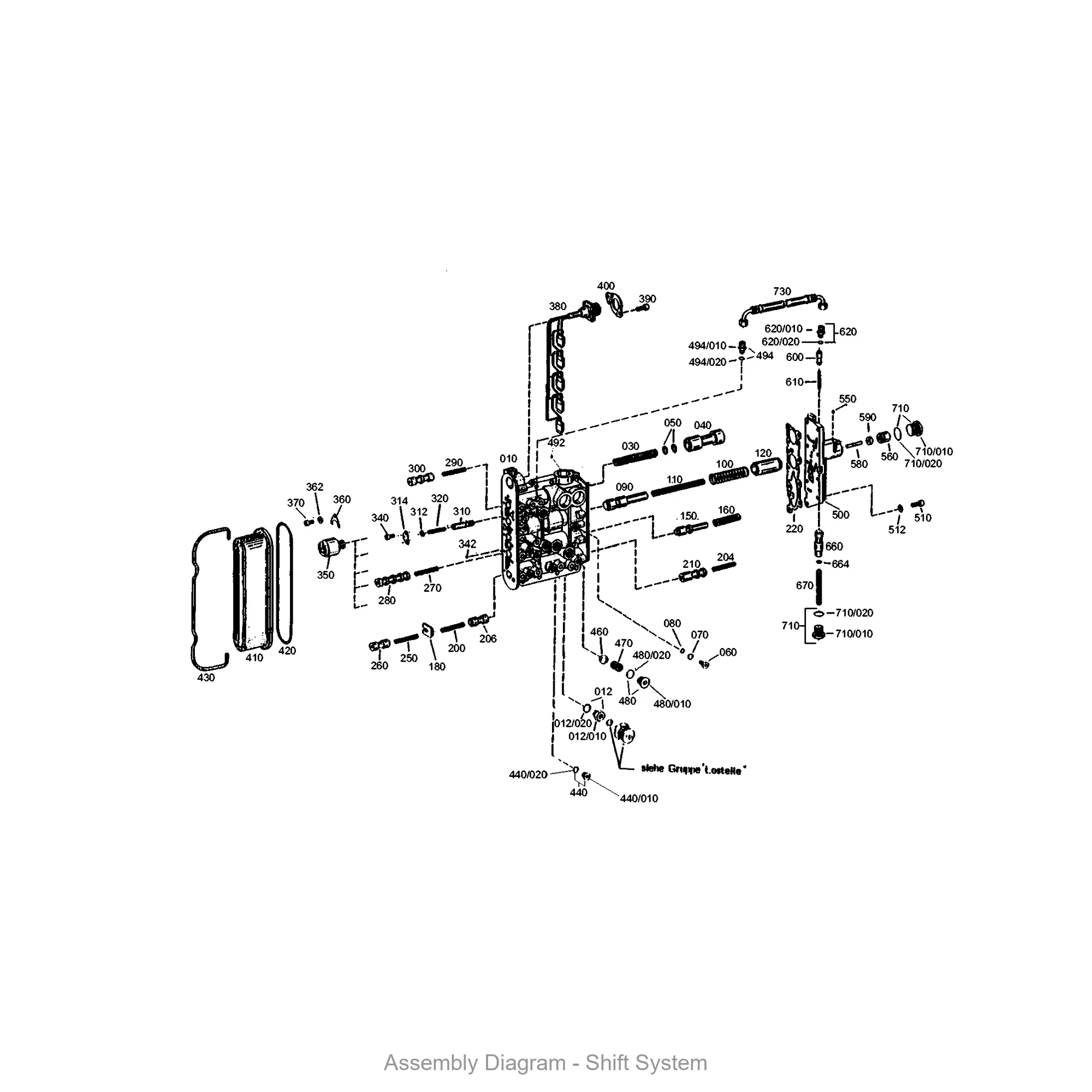

Exploded View / Assembly Diagram
The diagram below shows where ZF 4616.306.109 is located within the transmission assembly.
