ZF 4620.303.247 WASHER
ZF Part Number: 4620.303.247 (also written as 4620303247 / 4620.303.247 / 4620 303 247)
OEM Cross Reference / Interchange Numbers
ZF 4620.303.247 (WASHER) is the original manufacturer part. The following OEM and third-party part numbers are direct cross-references:
| Brand / OEM | Part Number | Type |
|---|---|---|
| 山东临工 | 7200001503 | OEM Cross Ref |
| 柳工 | SP100394 | OEM Cross Ref |
| 柳工 | SP100394RE | OEM Cross Ref |
This ZF part (4620.303.247) directly replaces the following OEM numbers: 山东临工: 7200001503; 柳工: SP100394, SP100394RE. All listed cross-reference numbers are confirmed compatible with ZF 4620.303.247.
Compatible ZF Transmission Models
This washer is used in the following ZF transmission models:
- ZF 4 WG 180
- ZF 4 WG 180(500)
- ZF 4 WG 65
- ZF 4 WG 65 II(D)
- ZF 6 WG 180(500)
- ZF 6 WG 65
Part Location in Assembly
| Section | Position No. | Qty |
|---|---|---|
| Crawler | 510 | 1 |
| Differential | 04.040 | 2 |
| Differential | 040 | 1 |
| Disconnection | 05.494 | 1 |
| Disconnection | 260 | 2 |
| Engine Connection | 120 | 1 |
| Engine Connection | 150 | 1 |
| Input | 062 | 1 |
| Input | 100 | 1 |
| Output | 03.040 | 2 |
| Output | 040 | 2 |
| Retarder | 290 | 1 |
Related Parts in Same Assembly
- 4616.101.066 — TRANSMISSION HOUSING (Qty: 1)
- 4616.101.406 — TRANSMISSION HOUSING (Qty: 1)
- 4616.102.057 — INPUT (Qty: 1)
- 4616.102.420 — INPUT (Qty: 1)
- 4616.103.048 — OUTPUT (Qty: 1)
- 4616.105.014 — OUTPUT (Qty: 1)
- 4616.106.016 — SHIFT SYSTEM (Qty: 1)
- 4616.159.022 — SHIFT SYSTEM (Qty: 1)
Frequently Asked Questions
What is ZF part number 4620.303.247?
ZF 4620.303.247 is an OEM washer produced by ZF Friedrichshafen AG, one of the world’s largest automotive suppliers. It is designed for use in ZF powershift transmissions, specifically in models such as 4 WG 180, 4 WG 180(500), 4 WG 65, 4 WG 65 II(D), 6 WG 180(500). This is a genuine ZF component, not an aftermarket reproduction.
Which ZF transmissions use 4620.303.247?
This washer is found in 6 ZF transmission variants, including: 4 WG 180, 4 WG 180(500), 4 WG 65, 4 WG 65 II(D), 6 WG 180(500), 6 WG 65. These transmissions are commonly used in wheel loaders, graders, and other heavy construction equipment. Contact us to verify fitment for your specific machine.
Where is ZF 4620.303.247 installed in the transmission?
This washer is located in the differential, input, output area of the transmission. It appears in 30 different assembly configurations. In the service manual, look for position number 510 in the Crawler section.
How do I look up ZF part 4620.303.247?
This part can be found under several formats: 4620303247 / 4620.303.247 / 4620 303 247. All formats refer to the same genuine ZF component. When ordering, any of these numbers will work. The official ZF catalog uses the dotted format (4620.303.247).
Where can I buy ZF 4620.303.247?
You can purchase genuine ZF 4620.303.247 from PartsZF.com (operated by Tianjin Xiaohang Construction Machinery Co., Ltd). We maintain direct supply channels with ZF and offer worldwide shipping. Contact our parts specialists for current pricing and lead times.
Need this part? Contact our ZF parts specialist for pricing and availability. We ship worldwide with OEM quality guarantee.

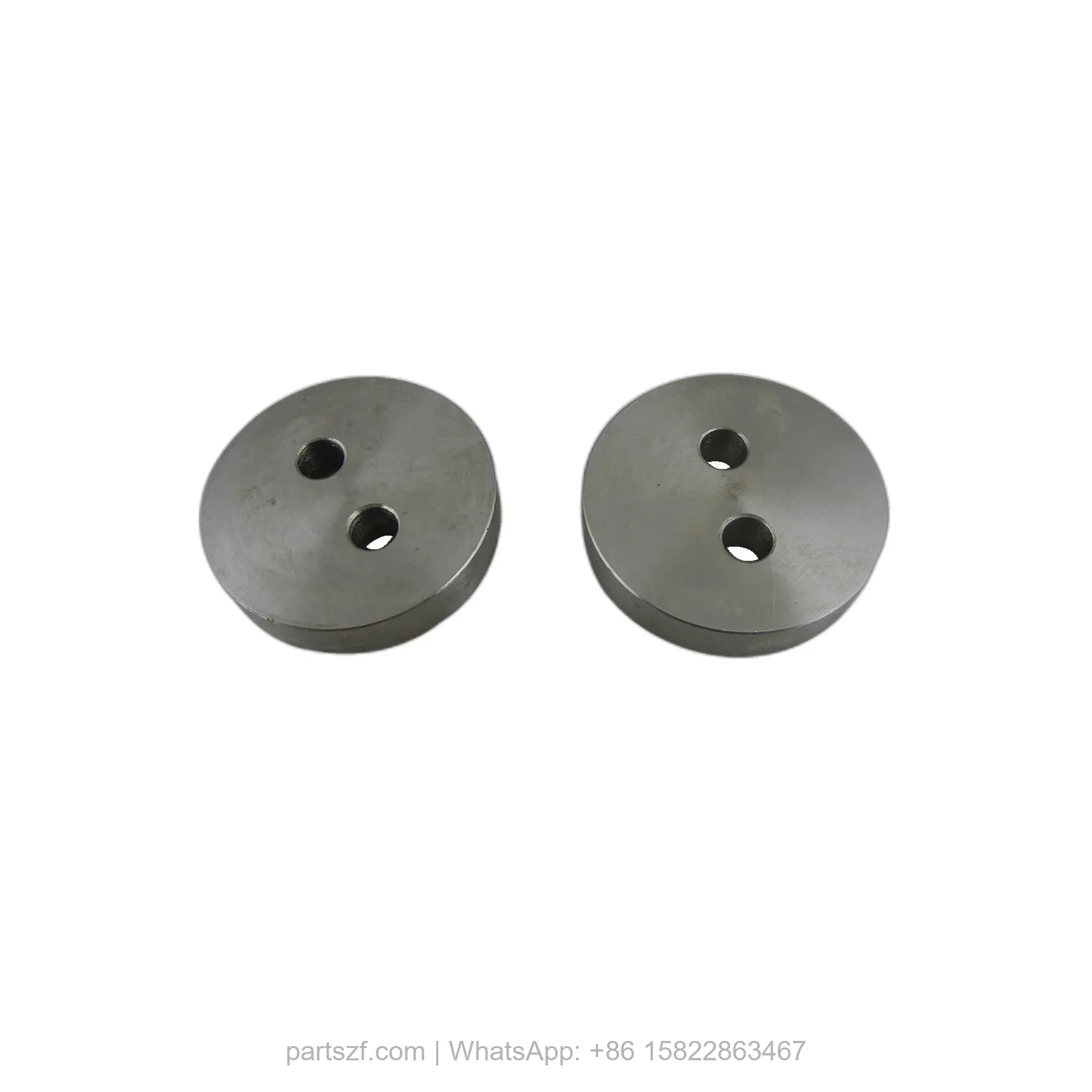

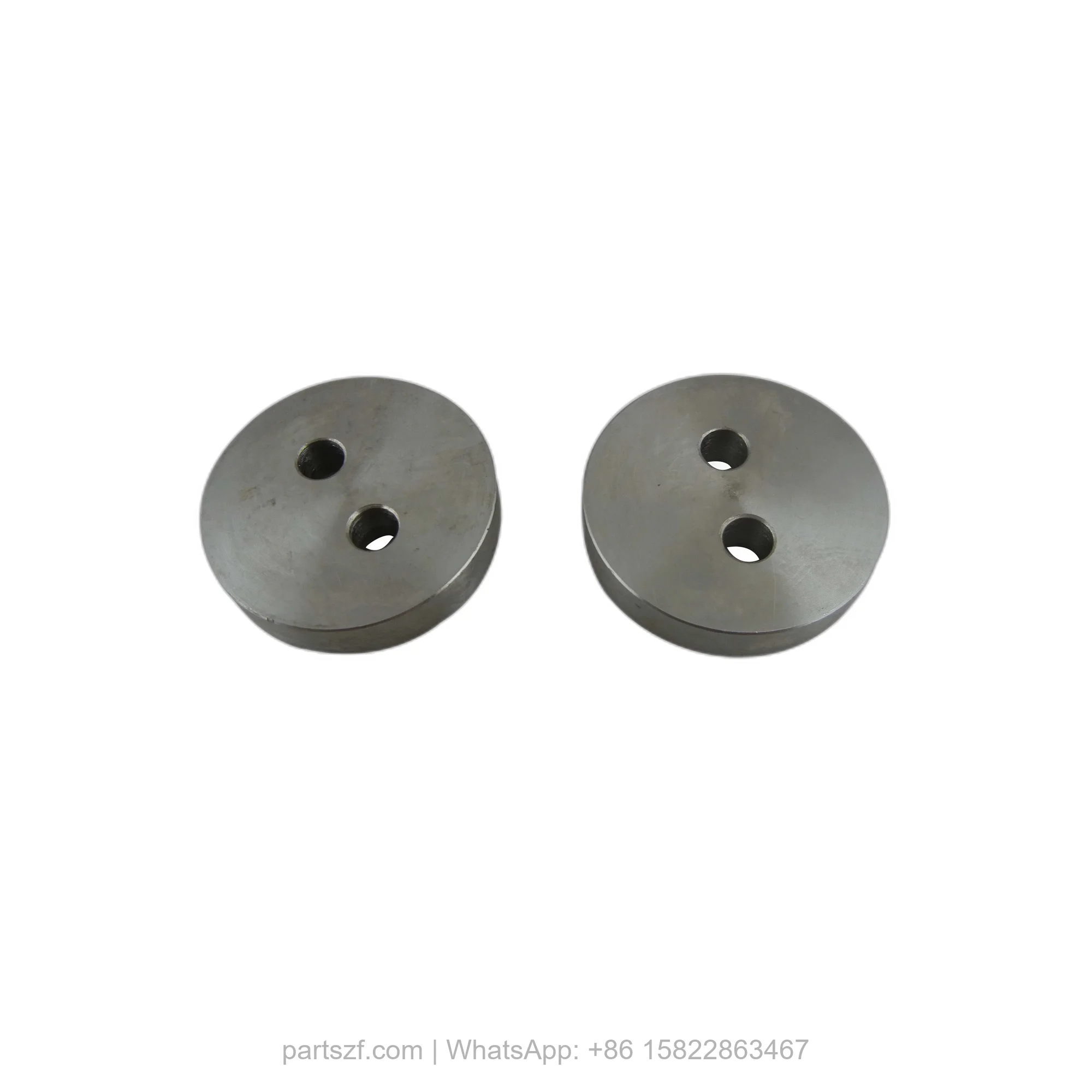

Product Photos

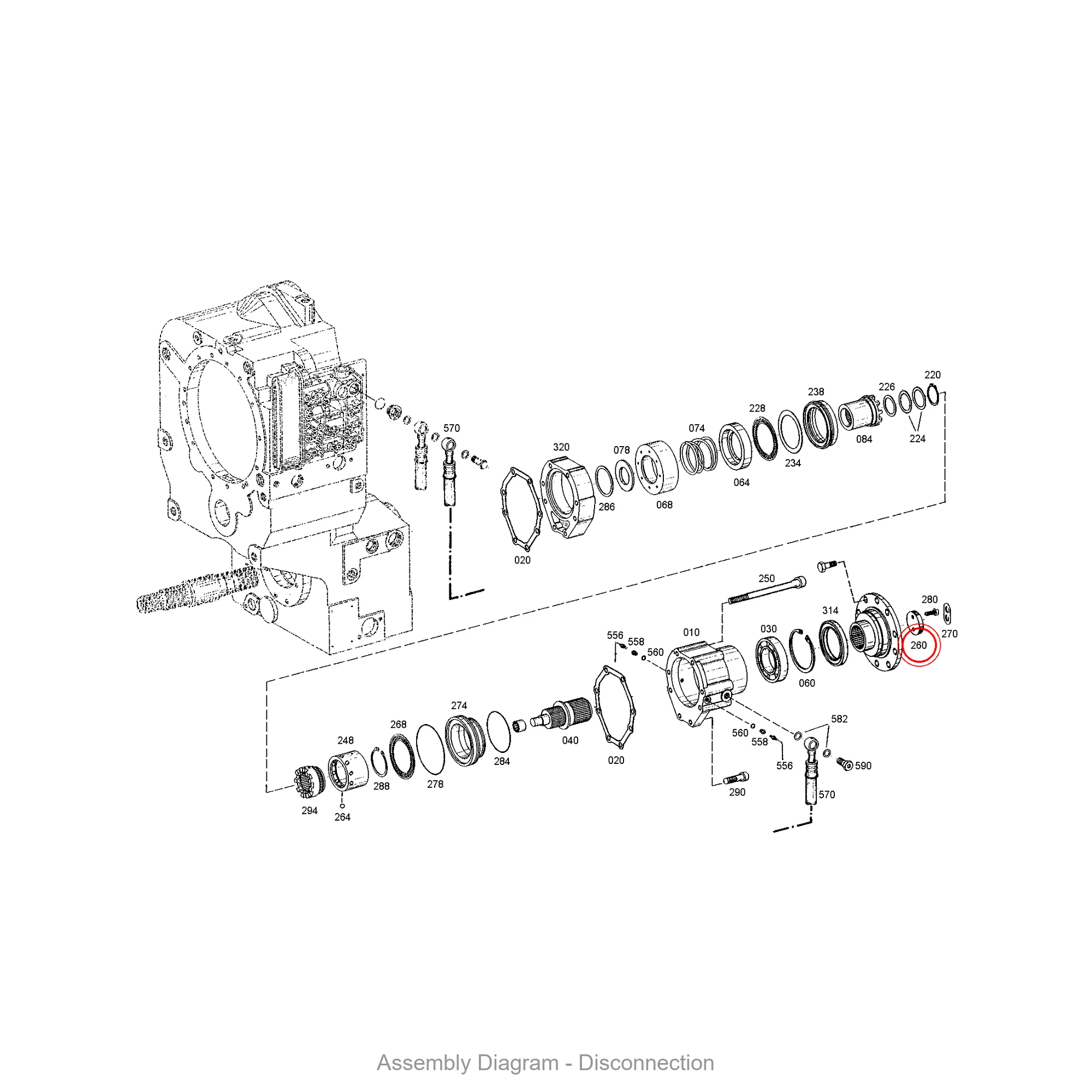

Exploded View / Assembly Diagram
The diagram below shows where ZF 4620.303.247 is located within the transmission assembly.
