ZF 4627.330.015 DIAPHRAGM
ZF Part Number: 4627.330.015 (also written as 4627330015 / 4627.330.015 / 4627 330 015)
Compatible ZF Transmission Models
This diaphragm is used in the following ZF transmission models:
- ZF 3 WG 100(500)
- ZF 4 WG 100(500)
- ZF 4 WG 110
- ZF 4 WG 110(500)
- ZF 4 WG 150
- ZF 4 WG 98 TC
- ZF 6 WG 110
- ZF 6 WG 110(500)
- ZF 6 WG 150
- ZF WG 98 TC
Part Location in Assembly
| Section | Position No. | Qty |
|---|---|---|
| Engine Connection | 010 | 1 |
| Engine Connection | 030 | 1 |
| Engine Connection | 034 | 1 |
Related Parts in Same Assembly
- 0501.317.160 — INDUCTIVE SENSOR (Qty: 1)
- 4168.030.125 — CONVERTER (Qty: 1)
- 4642.221.149 — SUCTION TUBE (Qty: 1)
- 4642.231.127 — OIL LEVEL TUBE (Qty: 1)
- 4642.301.207 — TRANSMISSION HOUSING (Qty: 1)
- 4642.302.161 — INPUT SHAFT (Qty: 1)
- 4642.303.002 — OUTPUT SHAFT (Qty: 1)
- 4642.307.005 — SPEEDO CONN.PCE (Qty: 1)
Frequently Asked Questions
What is ZF part number 4627.330.015?
ZF 4627.330.015 is an OEM diaphragm produced by ZF Friedrichshafen AG, one of the world’s largest automotive suppliers. It is designed for use in ZF powershift transmissions, specifically in models such as 3 WG 100(500), 4 WG 100(500), 4 WG 110, 4 WG 110(500), 4 WG 150. This is a genuine ZF component, not an aftermarket reproduction.
Which ZF transmissions use 4627.330.015?
This diaphragm is found in 10 ZF transmission variants, including: 3 WG 100(500), 4 WG 100(500), 4 WG 110, 4 WG 110(500), 4 WG 150, 4 WG 98 TC, 6 WG 110, 6 WG 110(500), 6 WG 150, WG 98 TC. These transmissions are commonly used in wheel loaders, graders, and other heavy construction equipment. Contact us to verify fitment for your specific machine.
Where is ZF 4627.330.015 installed in the transmission?
This diaphragm is located in the engine connection area of the transmission. It appears in 27 different assembly configurations. In the service manual, look for position number 010 in the Engine Connection section.
How do I look up ZF part 4627.330.015?
This part can be found under several formats: 4627330015 / 4627.330.015 / 4627 330 015. All formats refer to the same genuine ZF component. When ordering, any of these numbers will work. The official ZF catalog uses the dotted format (4627.330.015).
Where can I buy ZF 4627.330.015?
You can purchase genuine ZF 4627.330.015 from PartsZF.com (operated by Tianjin Xiaohang Construction Machinery Co., Ltd). We maintain direct supply channels with ZF and offer worldwide shipping. Contact our parts specialists for current pricing and lead times.
Need this part? Contact our ZF parts specialist for pricing and availability. We ship worldwide with OEM quality guarantee.

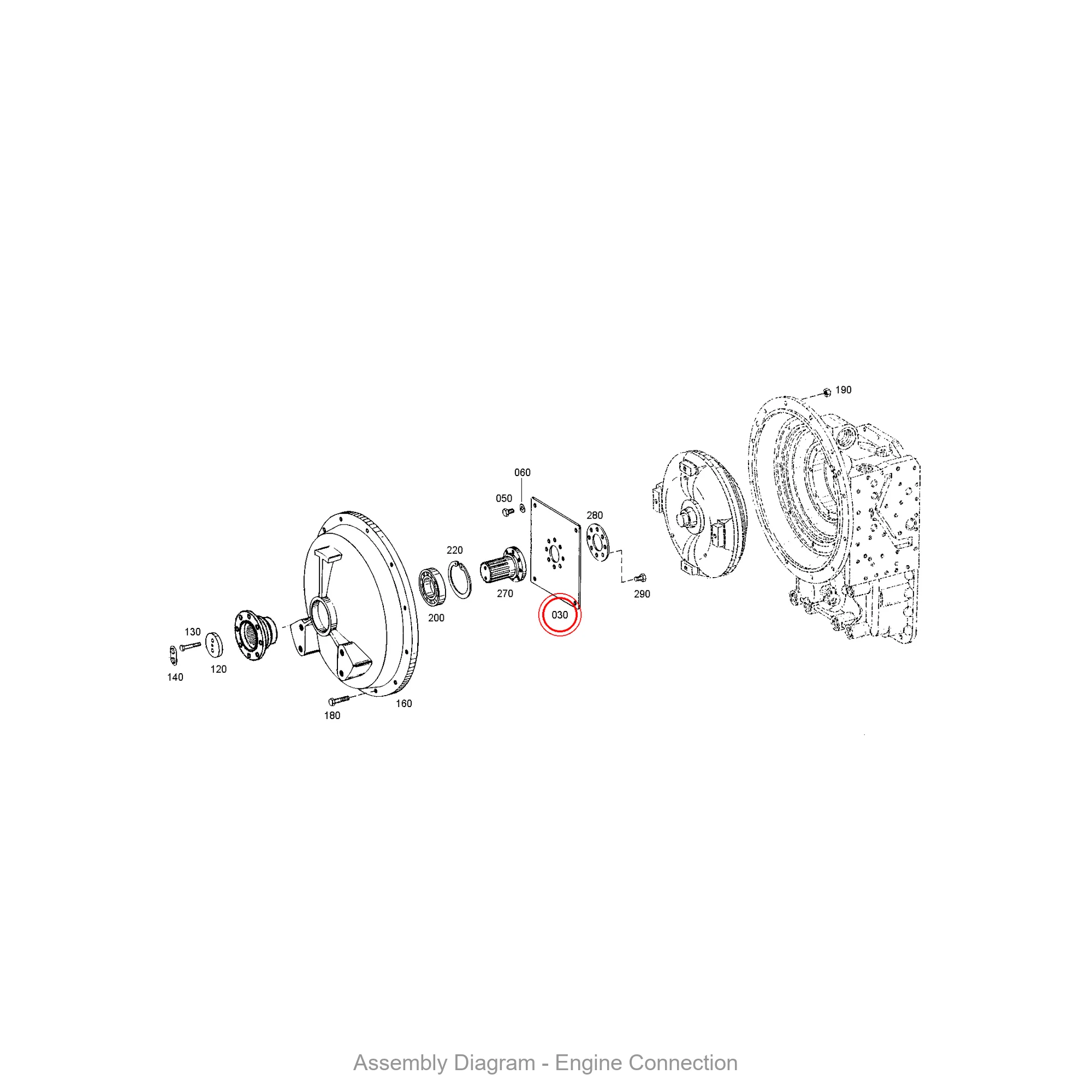

Exploded View / Assembly Diagram
The diagram below shows where ZF 4627.330.015 is located within the transmission assembly.
