ZF 4642.231.127 OIL LEVEL TUBE
ZF Part Number: 4642.231.127 (also written as 4642231127 / 4642.231.127 / 4642 231 127)
OEM Cross Reference / Interchange Numbers
ZF 4642.231.127 (OIL LEVEL TUBE) is the original manufacturer part. The following OEM and third-party part numbers are direct cross-references:
| Brand / OEM | Part Number | Type |
|---|---|---|
| 徐工筑路 | 860171753 | OEM Cross Ref |
| 徐工铲运 | 860129559 | OEM Cross Ref |
| 柳工 | SP107950 | OEM Cross Ref |
This ZF part (4642.231.127) directly replaces the following OEM numbers: 徐工筑路: 860171753; 徐工铲运: 860129559; 柳工: SP107950. All listed cross-reference numbers are confirmed compatible with ZF 4642.231.127.
Compatible ZF Transmission Models
This oil level tube is used in the following ZF transmission models:
- ZF 3 WG 200
- ZF 3 WG 201
- ZF 4 WG 150
- ZF 4 WG 180(500)
- ZF 4 WG 200(555/3)
- ZF 4 WG 200(555/5)
- ZF 6 WG 150
- ZF 6 WG 200(555)
- ZF 6 WG 200(555/5)
Part Location in Assembly
| Section | Position No. | Qty |
|---|---|---|
| Filler Nozzle | 010 | 1 |
| Loose Parts | 170 | 1 |
| Loose Parts | 280 | 1 |
| Oil Dipstick | 010 | 1 |
Related Parts in Same Assembly
- 0501.317.160 — INDUCTIVE SENSOR (Qty: 1)
- 4168.030.125 — CONVERTER (Qty: 1)
- 4642.221.149 — SUCTION TUBE (Qty: 1)
- 4642.301.207 — TRANSMISSION HOUSING (Qty: 1)
- 4642.302.161 — INPUT SHAFT (Qty: 1)
- 4642.303.002 — OUTPUT SHAFT (Qty: 1)
- 4642.307.005 — SPEEDO CONN.PCE (Qty: 1)
- 4642.308.549 — AXLE (Qty: 1)
Frequently Asked Questions
What is ZF part number 4642.231.127?
ZF 4642.231.127 is an OEM oil level tube produced by ZF Friedrichshafen AG, one of the world’s largest automotive suppliers. It is designed for use in ZF powershift transmissions, specifically in models such as 3 WG 200, 3 WG 201, 4 WG 150, 4 WG 180(500), 4 WG 200(555/3). This is a genuine ZF component, not an aftermarket reproduction.
Which ZF transmissions use 4642.231.127?
This oil level tube is found in 9 ZF transmission variants, including: 3 WG 200, 3 WG 201, 4 WG 150, 4 WG 180(500), 4 WG 200(555/3), 4 WG 200(555/5), 6 WG 150, 6 WG 200(555), 6 WG 200(555/5). These transmissions are commonly used in wheel loaders, graders, and other heavy construction equipment. Contact us to verify fitment for your specific machine.
Where is ZF 4642.231.127 installed in the transmission?
This oil level tube is located in the filler nozzle, loose parts area of the transmission. It appears in 30 different assembly configurations. In the service manual, look for position number 010 in the Filler Nozzle section.
How do I look up ZF part 4642.231.127?
This part can be found under several formats: 4642231127 / 4642.231.127 / 4642 231 127. All formats refer to the same genuine ZF component. When ordering, any of these numbers will work. The official ZF catalog uses the dotted format (4642.231.127).
Where can I buy ZF 4642.231.127?
You can purchase genuine ZF 4642.231.127 from PartsZF.com (operated by Tianjin Xiaohang Construction Machinery Co., Ltd). We maintain direct supply channels with ZF and offer worldwide shipping. Contact our parts specialists for current pricing and lead times.
Need this part? Contact our ZF parts specialist for pricing and availability. We ship worldwide with OEM quality guarantee.

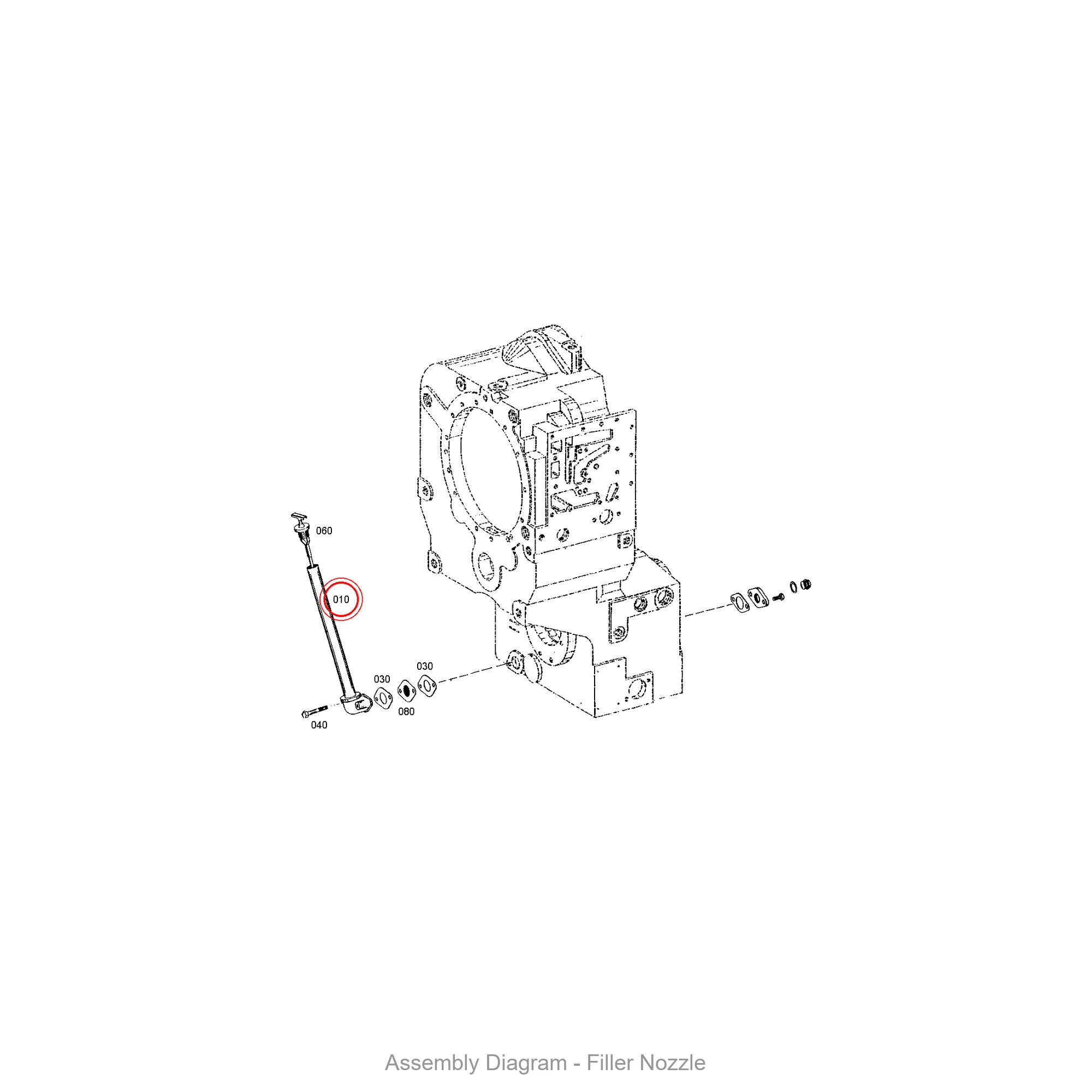

Exploded View / Assembly Diagram
The diagram below shows where ZF 4642.231.127 is located within the transmission assembly.
