Overview

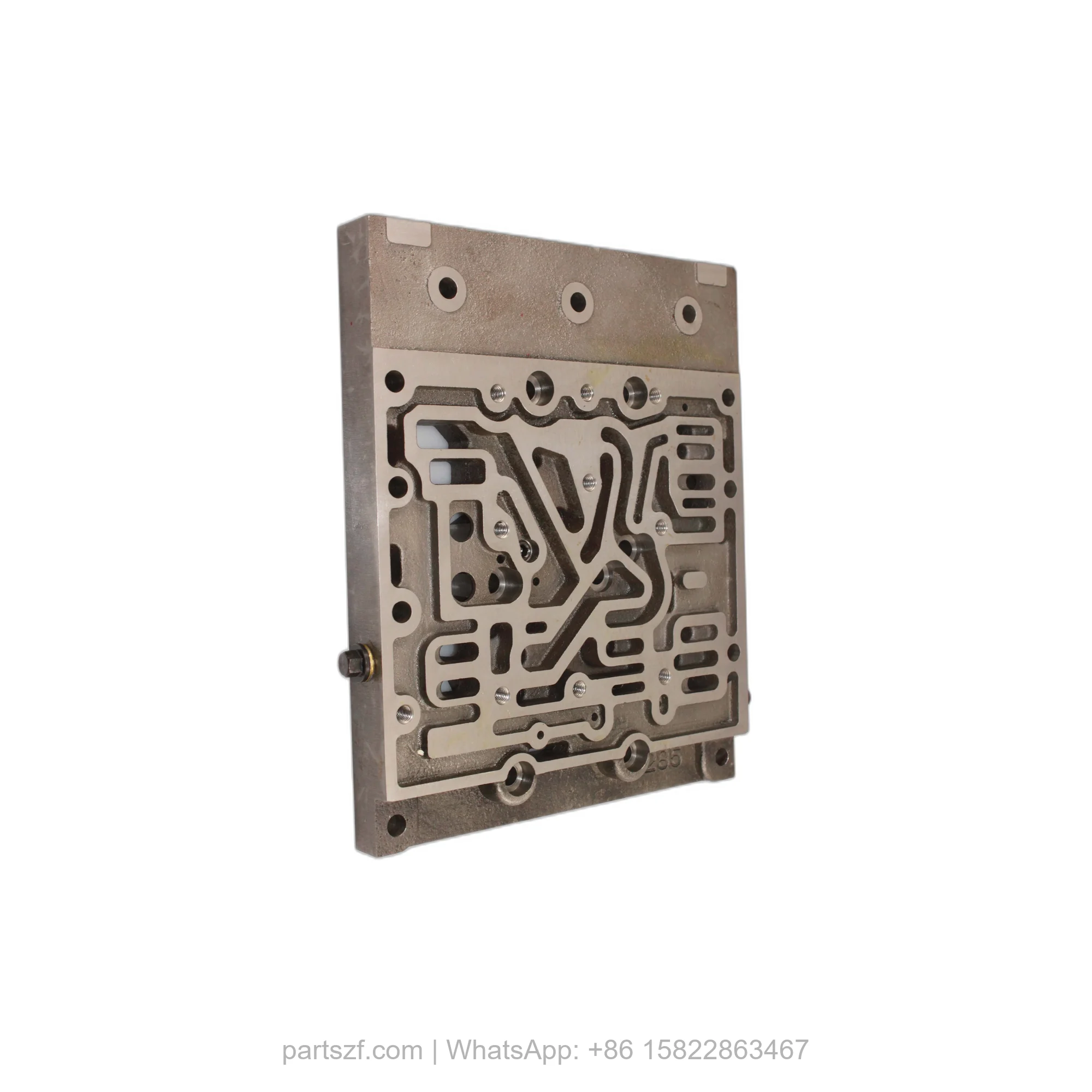

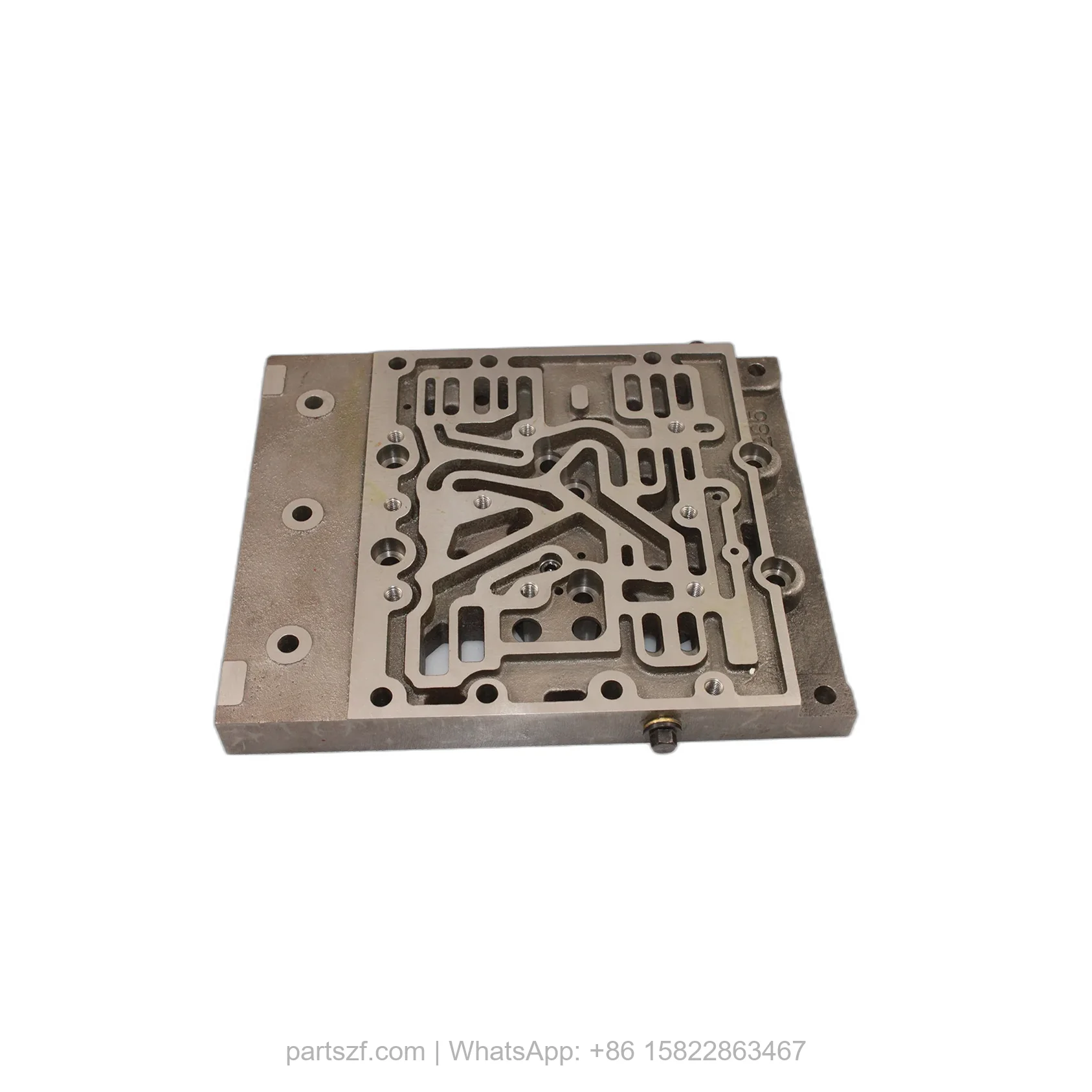

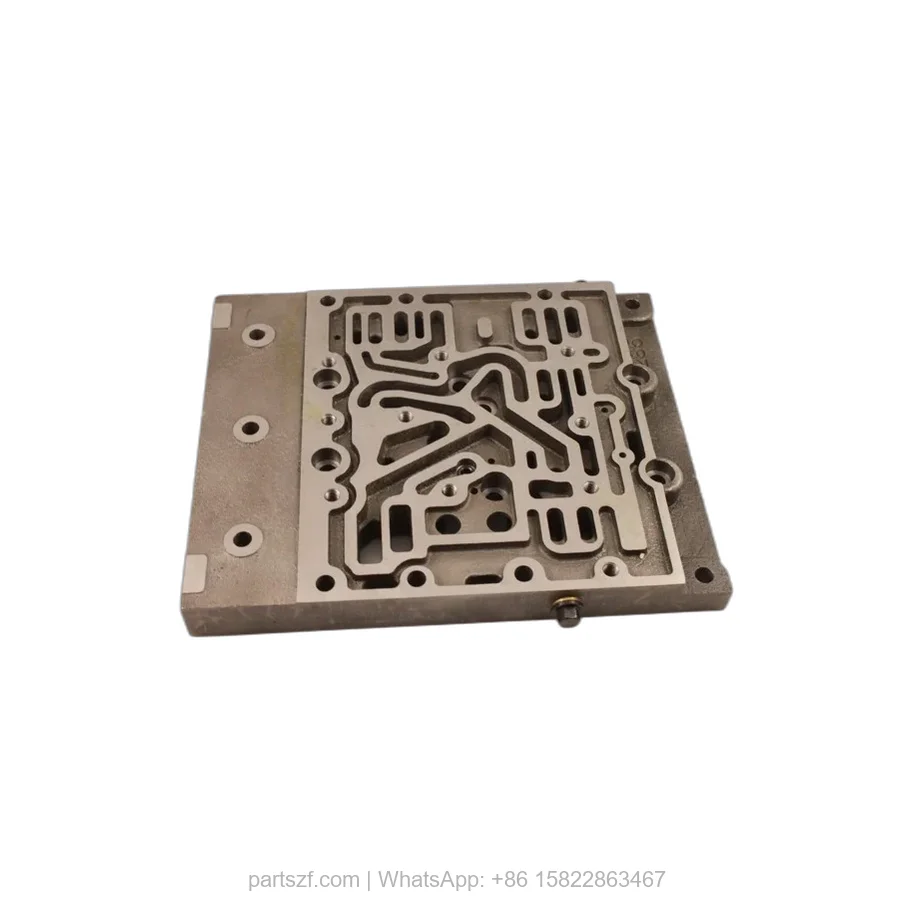

The ZF 4642.306.149 DUCT PLATE is a precision-engineered internal component designed for the WG150, WG180, and WG181 transmission series. This genuine OEM part, identified by SKU 4642.306.149, functions as a critical fluid routing guide within the transmission housing assembly. It directs hydraulic oil flow to ensure proper lubrication and cooling of planetary gear sets. Positioned between the main casing and the valve body, this duct plate works in concert with the TRANSMISSION HOUSING (4642101109) and the TRANSMISSION HOUSING (4642301205) to maintain internal pressure integrity. Without this plate, oil circulation becomes erratic, leading to accelerated wear on adjacent components.
Symptoms of Failure
When the ZF 4642.306.149 DUCT PLATE degrades or cracks, operators will notice distinct operational issues. Look for these specific failure symptoms:
- Oil leaks at the transmission housing seam: A warped or fractured duct plate allows pressurized fluid to escape between the housing halves, often mistaken for a gasket failure.
- Erratic gear engagement or delayed shifting: Insufficient oil routing to the shift system causes hesitation, particularly under load in WG150 and WG181 units.
- Overheating in the planetary section: Restricted oil flow through a damaged plate leads to localized hot spots, triggering thermal warnings on the TYPE PLATE (0730365125).
- Metallic debris in the oil pan: A broken duct plate can shed material into the sump, often accompanied by a whining noise from the gear train.
Technical Specifications
| Specification | Value |
|---|---|
| OEM Part Number | 4642.306.149 |
| Material | High-strength aluminum alloy (die-cast) |
| Overall Length | 210 mm |
| Overall Width | 95 mm |
| Thickness | 8.5 mm |
| Weight | 0.42 kg |
| Surface Treatment | Anodized corrosion protection |
| OEM Reference | ZF 4642.306.149 (Genuine) |
| Mounting Holes | 6 x M8 threaded |
Compatibility
This DUCT PLATE is engineered for ZF’s WG-series powershift transmissions. It is directly compatible with the following models:
- WG 150 Series (all variants including WG150-3, WG150-4)
- WG 180 Series (WG180-3, WG180-4)
- WG 181 Series (WG181-3, WG181-4)
- WG 200 Series (limited compatibility; verify housing casting number)
Installation requires removal of the GROOVED STUD (0631311009) and careful alignment with the transmission housing. Always replace the mating gaskets and check the condition of the SHIFT SYSTEM (4644106085) during service.
Related Components
| Part Number | Name | Function |
|---|---|---|
| 4642101109 | TRANSMISSION HOUSING | Main casing for gear and shaft support |
| 4642301205 | TRANSMISSION HOUSING | Secondary housing for valve body mounting |
| 0730365125 | TYPE PLATE | Identification tag with model and serial number |
| 0631311009 | GROOVED STUD | Alignment dowel for housing assembly |
| 4642301168 | SCREEN SHEET | Oil filter mesh for sump protection |
| 4642301169 | SCREEN SHEET | Fine mesh filter for valve body circuit |
| 0636100621 | HEXAGON SCREW | Fastener for duct plate retention |
| 4642301186 | SCREEN SHEET | Coarse strainer for pump inlet |
| 4644106085 | SHIFT SYSTEM | Hydraulic valve assembly for gear selection |
| 4642306050 | COVER PLATE | Access cover for duct plate inspection |
