ZF 4644.221.194 TUBE
ZF Part Number: 4644.221.194 (also written as 4644221194 / 4644.221.194 / 4644 221 194)
Compatible ZF Transmission Models
This tube is used in the following ZF transmission models:
- ZF 3 WG 200
Part Location in Assembly
| Section | Position No. | Qty |
|---|---|---|
| Oil Pipe | 370 | 1 |
Related Parts in Same Assembly
- 0501.317.159 — INDUCTIVE SENSOR (Qty: 1)
- 0750.131.053 — REPLACEMENT FILTER (Qty: 1)
- 4642.231.127 — OIL LEVEL TUBE (Qty: 1)
- 4644.221.200 — SUCTION TUBE (Qty: 1)
- 4644.301.346 — TRANSMISSION HOUSING (Qty: 1)
- 4644.302.245 — INPUT SHAFT (Qty: 1)
- 4644.303.566 — OUTPUT SHAFT (Qty: 1)
- 4644.305.023 — HOUSING (Qty: 2)
Frequently Asked Questions
What is ZF part number 4644.221.194?
ZF 4644.221.194 is an OEM tube produced by ZF Friedrichshafen AG, one of the world’s largest automotive suppliers. It is designed for use in ZF powershift transmissions, specifically in models such as 3 WG 200. This is a genuine ZF component, not an aftermarket reproduction.
Which ZF transmissions use 4644.221.194?
This tube is found in 1 ZF transmission variants, including: 3 WG 200. These transmissions are commonly used in wheel loaders, graders, and other heavy construction equipment. Contact us to verify fitment for your specific machine.
Where is ZF 4644.221.194 installed in the transmission?
This tube is located in the oil pipe area of the transmission. It appears in 2 different assembly configurations. In the service manual, look for position number 370 in the Oil Pipe section.
How do I look up ZF part 4644.221.194?
This part can be found under several formats: 4644221194 / 4644.221.194 / 4644 221 194. All formats refer to the same genuine ZF component. When ordering, any of these numbers will work. The official ZF catalog uses the dotted format (4644.221.194).
Where can I buy ZF 4644.221.194?
You can purchase genuine ZF 4644.221.194 from PartsZF.com (operated by Tianjin Xiaohang Construction Machinery Co., Ltd). We maintain direct supply channels with ZF and offer worldwide shipping. Contact our parts specialists for current pricing and lead times.
Need this part? Contact our ZF parts specialist for pricing and availability. We ship worldwide with OEM quality guarantee.

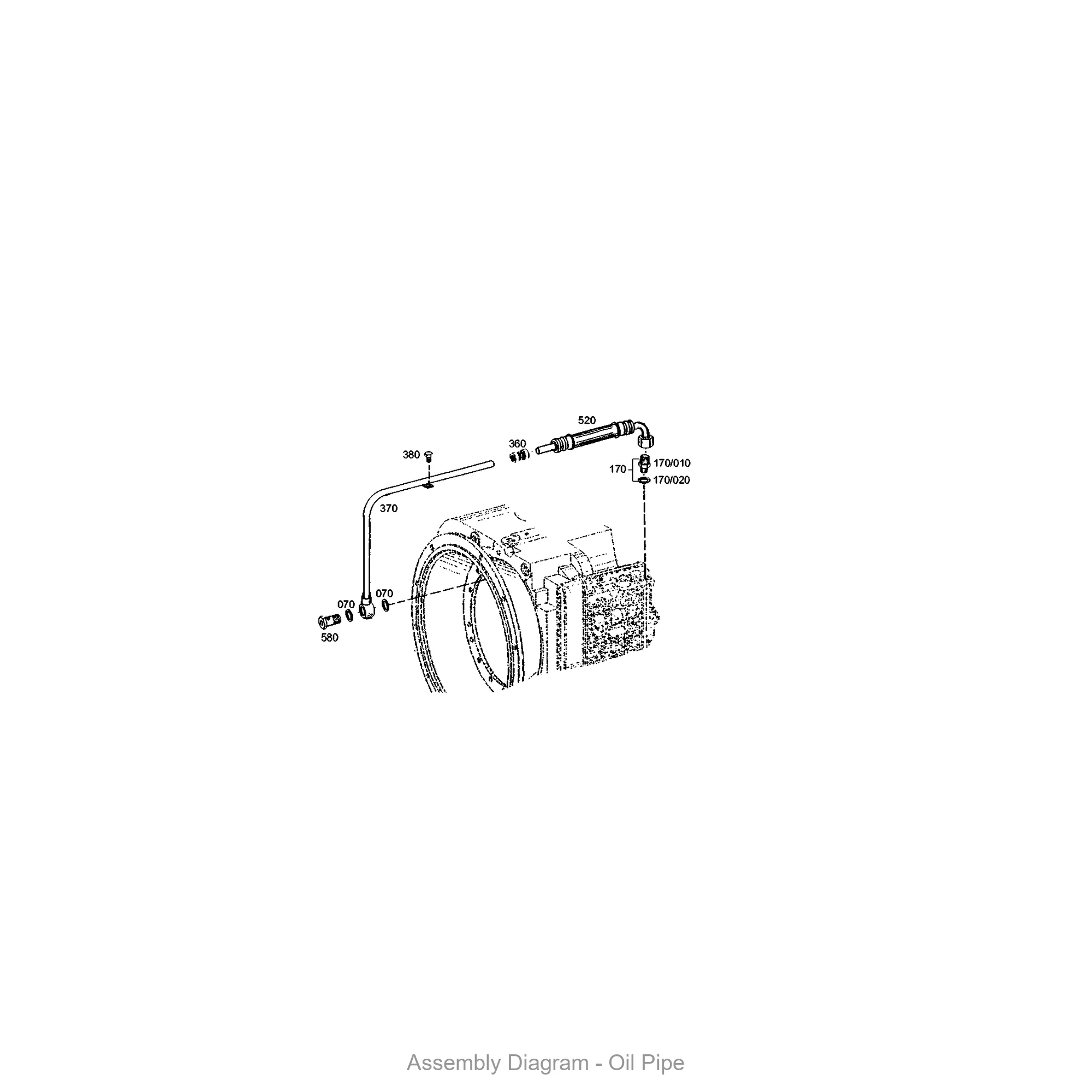

Exploded View / Assembly Diagram
The diagram below shows where ZF 4644.221.194 is located within the transmission assembly.
