ZF 4644.252.016 SPUR GEAR
ZF Part Number: 4644.252.016 (also written as 4644252016 / 4644.252.016 / 4644 252 016)
Compatible ZF Transmission Models
This spur gear is used in the following ZF transmission models:
- ZF 4 WG 200(555)
- ZF 4 WG 200(555/5)
Part Location in Assembly
| Section | Position No. | Qty |
|---|---|---|
| Clutch | 318 | 1 |
Related Parts in Same Assembly
- 0501.317.160 — INDUCTIVE SENSOR (Qty: 1)
- 0750.131.053 — REPLACEMENT FILTER (Qty: 1)
- 4044.319.023 — DRIVER (Qty: 1)
- 4168.030.107 — CONVERTER (Qty: 1)
- 4642.231.127 — OIL LEVEL TUBE (Qty: 1)
- 4644.221.197 — SUCTION TUBE (Qty: 1)
- 4644.301.301 — HOUSING (Qty: 1)
- 4644.302.188 — INPUT SHAFT (Qty: 1)
Frequently Asked Questions
What is ZF part number 4644.252.016?
ZF 4644.252.016 is an OEM spur gear produced by ZF Friedrichshafen AG, one of the world’s largest automotive suppliers. It is designed for use in ZF powershift transmissions, specifically in models such as 4 WG 200(555), 4 WG 200(555/5). This is a genuine ZF component, not an aftermarket reproduction.
Which ZF transmissions use 4644.252.016?
This spur gear is found in 2 ZF transmission variants, including: 4 WG 200(555), 4 WG 200(555/5). These transmissions are commonly used in wheel loaders, graders, and other heavy construction equipment. Contact us to verify fitment for your specific machine.
Where is ZF 4644.252.016 installed in the transmission?
This spur gear is located in the clutch area of the transmission. It appears in 7 different assembly configurations. In the service manual, look for position number 318 in the Clutch section.
How do I look up ZF part 4644.252.016?
This part can be found under several formats: 4644252016 / 4644.252.016 / 4644 252 016. All formats refer to the same genuine ZF component. When ordering, any of these numbers will work. The official ZF catalog uses the dotted format (4644.252.016).
How do I inspect ZF 4644.252.016?
Inspect gear teeth for pitting, spalling, cracks, and abnormal wear patterns. Check tooth contact pattern using marking compound. Replace if damage exceeds ZF service limits.
Where can I buy ZF 4644.252.016?
You can purchase genuine ZF 4644.252.016 from PartsZF.com (operated by Tianjin Xiaohang Construction Machinery Co., Ltd). We maintain direct supply channels with ZF and offer worldwide shipping. Contact our parts specialists for current pricing and lead times.
Need this part? Contact our ZF parts specialist for pricing and availability. We ship worldwide with OEM quality guarantee.

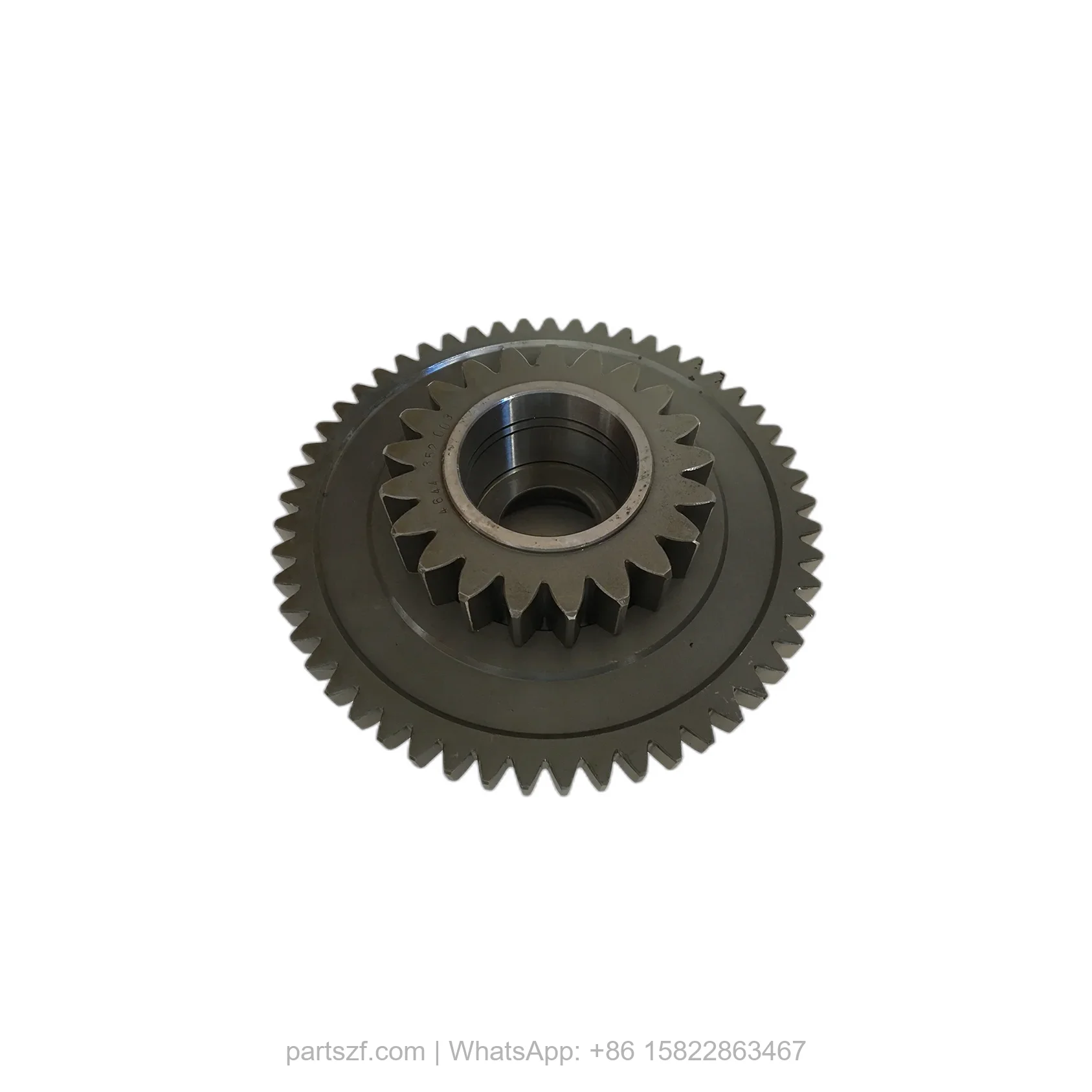

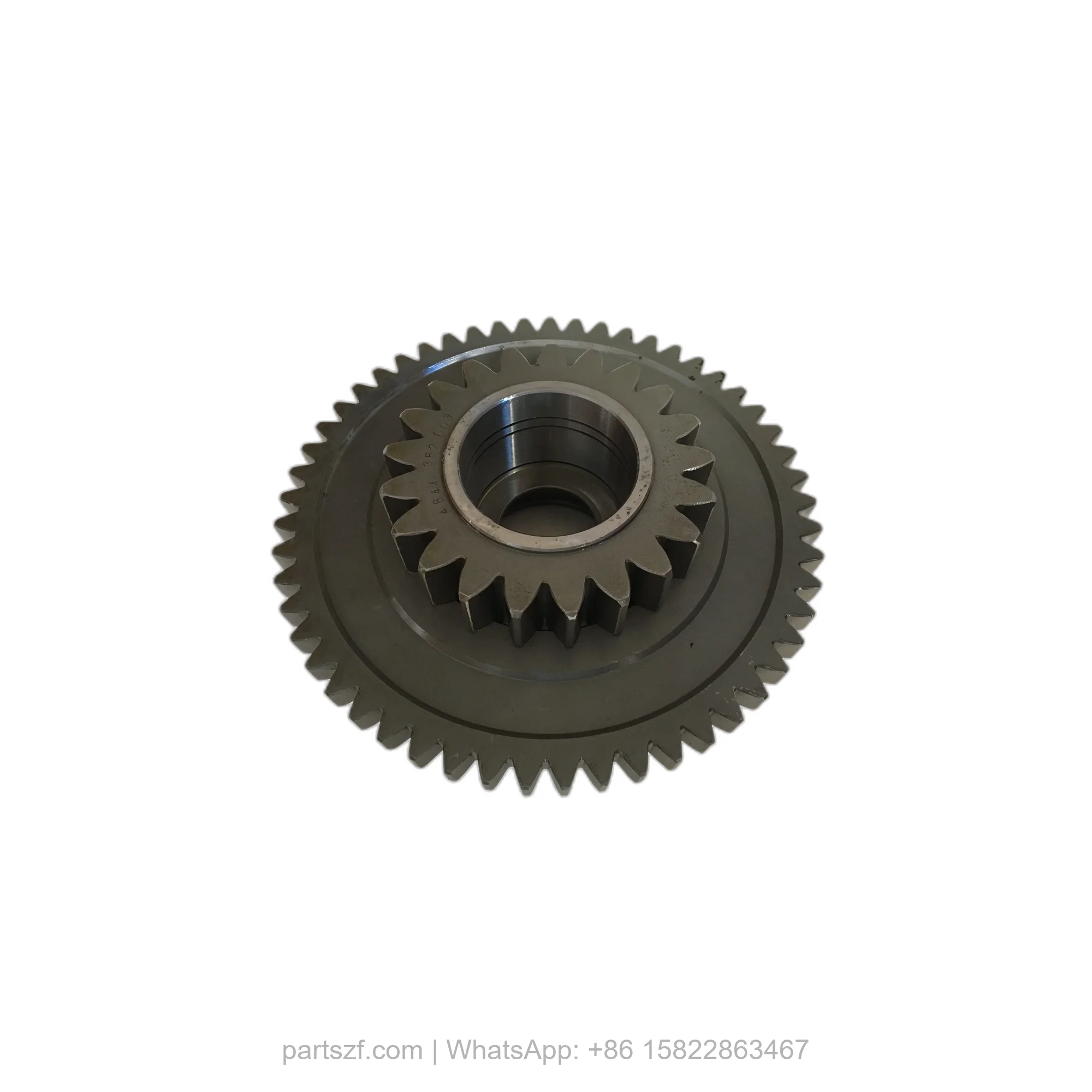

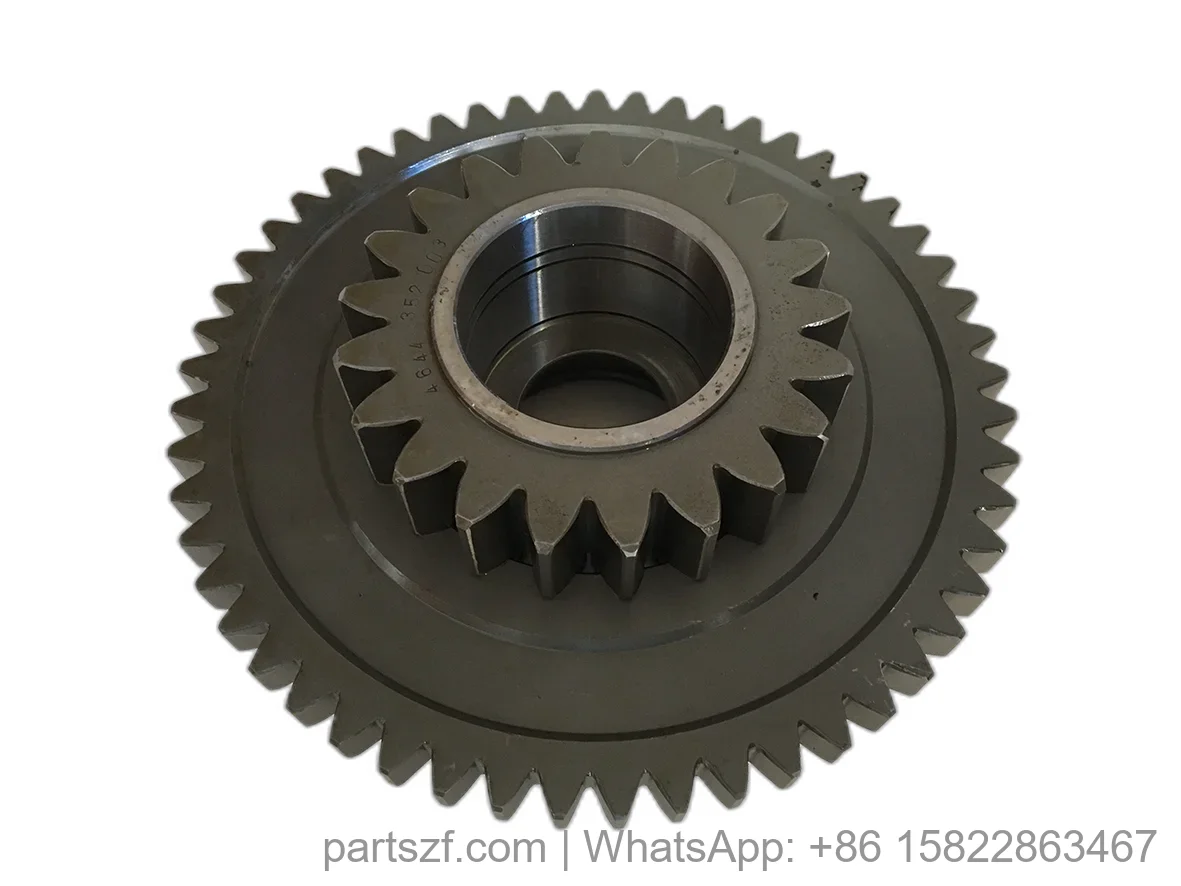

Product Photos

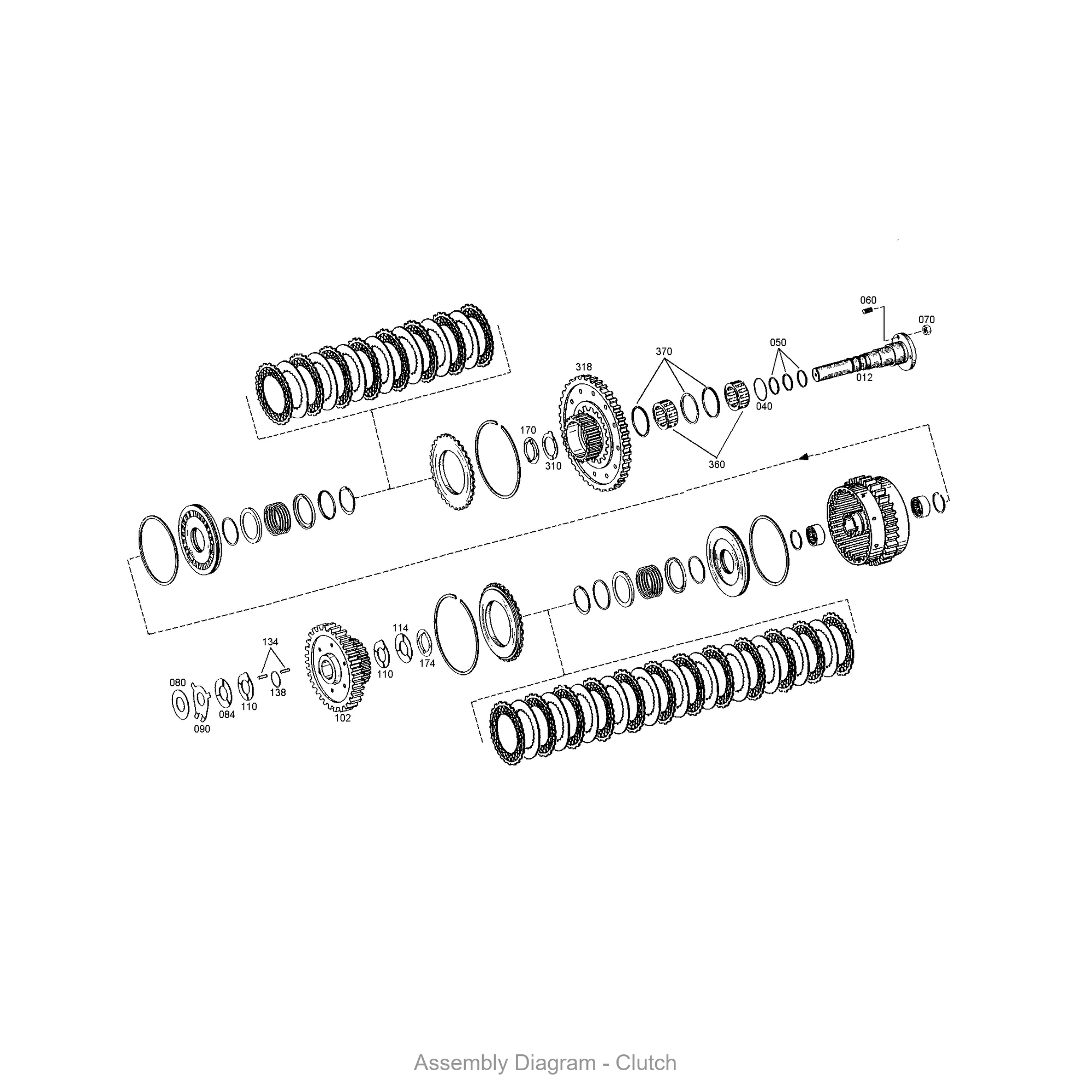

Exploded View / Assembly Diagram
The diagram below shows where ZF 4644.252.016 is located within the transmission assembly.
