ZF 4644.301.247 THREADED BUSH
ZF Part Number: 4644.301.247 (also written as 4644301247 / 4644.301.247 / 4644 301 247)
Compatible ZF Transmission Models
This threaded bush is used in the following ZF transmission models:
- ZF 4 WG 180(500)
- ZF 4 WG 200(500)
- ZF 6 WG 180(500)
- ZF 6 WG 200(500)
Part Location in Assembly
| Section | Position No. | Qty |
|---|---|---|
| Transmission Housing | 466 | 1 |
Related Parts in Same Assembly
- 0501.003.819 — BRAKE (Qty: 1)
- 4168.030.104 — CONVERTER (Qty: 1)
- 4642.306.050 — COVER PLATE (Qty: 1)
- 4642.306.161 — VALVE HOUSING (Qty: 1)
- 4644.221.197 — SUCTION TUBE (Qty: 1)
- 4644.231.059 — OIL LEVEL TUBE (Qty: 1)
- 4644.301.333 — HOUSING (Qty: 1)
- 4644.302.188 — INPUT SHAFT (Qty: 1)
Frequently Asked Questions
What is ZF part number 4644.301.247?
ZF 4644.301.247 is an OEM threaded bush produced by ZF Friedrichshafen AG, one of the world’s largest automotive suppliers. It is designed for use in ZF powershift transmissions, specifically in models such as 4 WG 180(500), 4 WG 200(500), 6 WG 180(500), 6 WG 200(500). This is a genuine ZF component, not an aftermarket reproduction.
Which ZF transmissions use 4644.301.247?
This threaded bush is found in 4 ZF transmission variants, including: 4 WG 180(500), 4 WG 200(500), 6 WG 180(500), 6 WG 200(500). These transmissions are commonly used in wheel loaders, graders, and other heavy construction equipment. Contact us to verify fitment for your specific machine.
Where is ZF 4644.301.247 installed in the transmission?
This threaded bush is located in the transmission housing area of the transmission. It appears in 8 different assembly configurations. In the service manual, look for position number 466 in the Transmission Housing section.
How do I look up ZF part 4644.301.247?
This part can be found under several formats: 4644301247 / 4644.301.247 / 4644 301 247. All formats refer to the same genuine ZF component. When ordering, any of these numbers will work. The official ZF catalog uses the dotted format (4644.301.247).
Where can I buy ZF 4644.301.247?
You can purchase genuine ZF 4644.301.247 from PartsZF.com (operated by Tianjin Xiaohang Construction Machinery Co., Ltd). We maintain direct supply channels with ZF and offer worldwide shipping. Contact our parts specialists for current pricing and lead times.
Need this part? Contact our ZF parts specialist for pricing and availability. We ship worldwide with OEM quality guarantee.

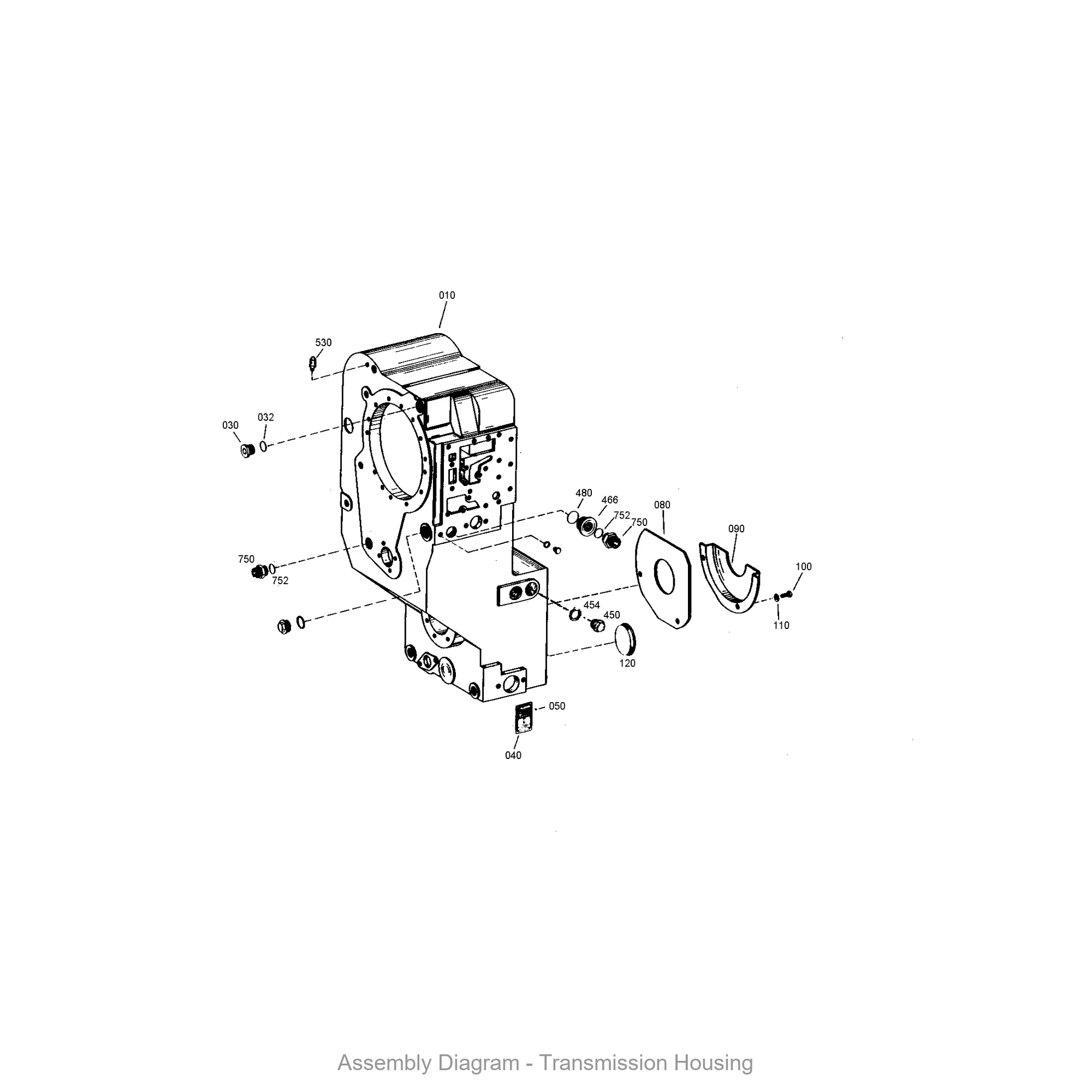

Exploded View / Assembly Diagram
The diagram below shows where ZF 4644.301.247 is located within the transmission assembly.
