Overview
The ZF 4645.351.024 Outer Clutch Disk is a critical friction component engineered for the WG100, WG130, and WG131 transmission series. This OEM genuine part sits within the clutch pack assembly, where it transfers torque between rotating shafts during gear engagement. By providing precise frictional grip, it ensures smooth power delivery and prevents slippage under heavy loads. The SKU 4645.351.024 is manufactured to ZF’s exacting tolerances, making it essential for maintaining hydraulic pressure balance inside the clutch drum. When paired with a properly sealed 4143101009: HOUSING and a robust 4143301025: HOUSING, this disk delivers reliable performance in demanding industrial applications.
Symptoms of Failure
- Delayed gear engagement or clutch shudder: Worn friction material causes hesitation when shifting, often accompanied by a vibrating sensation during acceleration.
- Transmission fluid overheating: Slipping disks generate excess heat, leading to burnt-smelling oil and potential damage to the 0634313603: O-RING seals.
- Erratic shift patterns under load: The transmission may unexpectedly drop gears or fail to hold torque, especially when towing or climbing inclines.
- Metallic debris in oil pan: Flaking friction material contaminates the hydraulic circuit, accelerating wear on the 4475280018: SCREW PLUG and valve body components.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 4645.351.024 |
| Outer Diameter | 245 mm |
| Inner Diameter | 165 mm |
| Thickness | 3.2 mm |
| Material | Sintered bronze on steel core |
| Weight | 0.85 kg |
| OEM Reference | ZF 4645.351.024 |
| Friction Coefficient | 0.12 (dry) / 0.08 (wet) |
Compatibility
This outer clutch disk is specifically designed for ZF’s WG100, WG130, and WG131 powershift transmissions. It also fits select variants of the WG180 and WG200 series when used with the correct 0501342341: SUPPORT RING. Always verify the clutch pack stack height using the 4143298457: SEAL KIT to ensure proper clearance. For complete assembly integrity, replace the 0634313591: O-RING and 0636101068: CAP SCREW during installation. The disk is not backward-compatible with older WG120 models without modifying the 4143221013: THROTTLE VALVE calibration.
Related Components
| Part Number | Name | Function |
|---|---|---|
| 4143101009 | HOUSING | Encloses clutch pack assembly |
| 4143301025 | HOUSING | Outer drum for torque transfer |
| 0634313603 | O-RING | Seals hydraulic pressure passages |
| 4475280018 | SCREW PLUG | Closes oil gallery access ports |
| 0501342341 | SUPPORT RING | Positions clutch disk stack |
| 4143298457 | SEAL KIT | Contains all gaskets for overhaul |
| 0634313591 | O-RING | Piston seal for clutch apply |
| 0636101068 | CAP SCREW | Fastens clutch drum to hub |
| 4143221013 | THROTTLE VALVE | Modulates shift feel pressure |
| 0634304484 | O-RING | Seals valve body passages |
ZF 4645.351.024 OUTER CLUTCH DISK – Clutch Disk RFQ Support
PartsZF helps B2B buyers source ZF 4645.351.024 OUTER CLUTCH DISK with fast RFQ support, expert part-number lookup, documentation review, and export coordination. This clutch disk page is built from confirmed catalog, media, and reference data to reduce sourcing uncertainty for construction machinery transmission parts.
Part-Number Summary
Use ZF number 4645.351.024 when sending your RFQ. PartsZF can review dotted, spaced, and compact number formats against the available product and documentation records.
Application Context

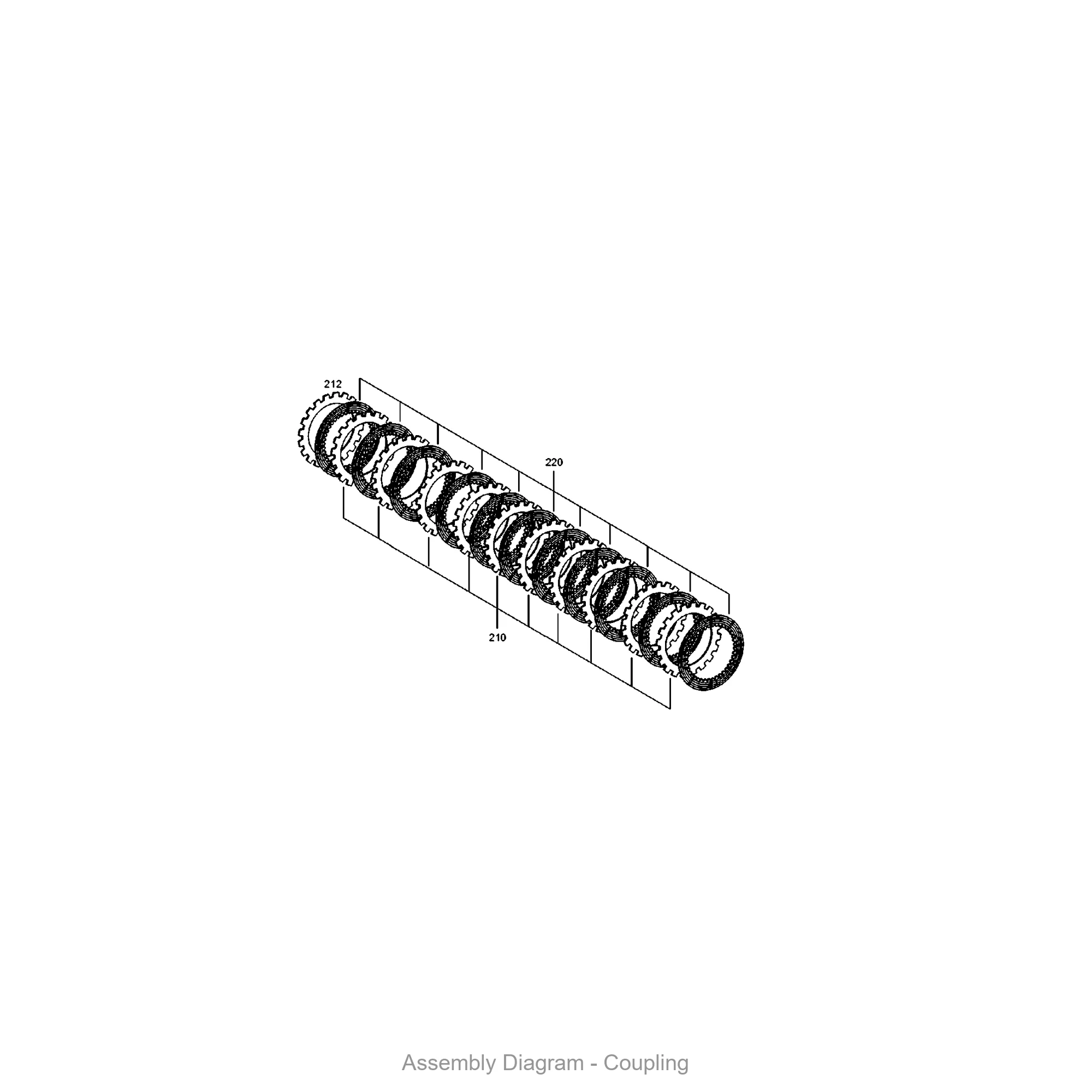

- Illustration section: COUPLING
Cross Reference Support
If you have an OEM number, old supplier number, or visible marking, include it with your RFQ so PartsZF can compare it with the available records.
Specification Snapshot
| ZF part number | 4645.351.024 |
|---|---|
| Normalized SKU | 4645351024 |
| Part name | OUTER CLUTCH DISK |
| Product category | clutch disk |
| Cross-reference support | Available for RFQ review |
| Weight | 0.057 |
Image and Documentation Notes
Current product media status: diagram. Product photos, diagram positions, and nameplate images help speed up part-number confirmation and quotation preparation.
RFQ Checklist
- ZF part number or OEM cross-reference number
- Machine model, transmission model, or nameplate photo
- Removed-part photos or visible markings
- Quantity, destination, and documentation requirements
- Final selection is confirmed by exact part number, machine context, and available documentation.
Related Parts
- ZF 4646.351.182 INNER CLUTCH DISK
- ZF 2093.359.051 INNER CLUTCH DISK
- ZF 0501.313.598 OUTER CLUTCH DISK
- ZF 4661.351.003 OUTER CLUTCH DISK
- ZF 0501.228.272 INNER CLUTCH DISK
