ZF 4646.121.416 OIL PIPE
ZF Part Number: 4646.121.416 (also written as 4646121416 / 4646.121.416 / 4646 121 416)
Compatible ZF Transmission Models
This oil pipe is used in the following ZF transmission models:
- ZF 3 WG 260
- ZF 4 WG 258
- ZF 4 WG 260
- ZF 4 WG 260(4)
- ZF 4 WG 308
- ZF 6 WG 258
Part Location in Assembly
| Section | Position No. | Qty |
|---|---|---|
| Wg 260 | 215 | 1 |
Related Parts in Same Assembly
- 0501.006.922 — BRAKE (Qty: 1)
- 0501.214.082 — SUCTION FILTER (Qty: 1)
- 0501.214.611 — GEAR PUMP (Qty: 1)
- 0501.216.209 — RANGE SELECTOR (Qty: 1)
- 0637.100.196 — PIPE UNION (Qty: 1)
- 4168.037.054 — CONVERTER (Qty: 1)
- 4475.280.011 — SCREW PLUG (Qty: 3)
- 4475.280.232 — UNION SCREW (Qty: 1)
Frequently Asked Questions
What is ZF part number 4646.121.416?
ZF 4646.121.416 is an OEM oil pipe produced by ZF Friedrichshafen AG, one of the world’s largest automotive suppliers. It is designed for use in ZF powershift transmissions, specifically in models such as 3 WG 260, 4 WG 258, 4 WG 260, 4 WG 260(4), 4 WG 308. This is a genuine ZF component, not an aftermarket reproduction.
Which ZF transmissions use 4646.121.416?
This oil pipe is found in 6 ZF transmission variants, including: 3 WG 260, 4 WG 258, 4 WG 260, 4 WG 260(4), 4 WG 308, 6 WG 258. These transmissions are commonly used in wheel loaders, graders, and other heavy construction equipment. Contact us to verify fitment for your specific machine.
Where is ZF 4646.121.416 installed in the transmission?
This oil pipe is located in the oil pipe, wg 260 area of the transmission. It appears in 30 different assembly configurations. In the service manual, look for position number 215 in the Wg 260 section.
How do I look up ZF part 4646.121.416?
This part can be found under several formats: 4646121416 / 4646.121.416 / 4646 121 416. All formats refer to the same genuine ZF component. When ordering, any of these numbers will work. The official ZF catalog uses the dotted format (4646.121.416).
Where can I buy ZF 4646.121.416?
You can purchase genuine ZF 4646.121.416 from PartsZF.com (operated by Tianjin Xiaohang Construction Machinery Co., Ltd). We maintain direct supply channels with ZF and offer worldwide shipping. Contact our parts specialists for current pricing and lead times.
Need this part? Contact our ZF parts specialist for pricing and availability. We ship worldwide with OEM quality guarantee.

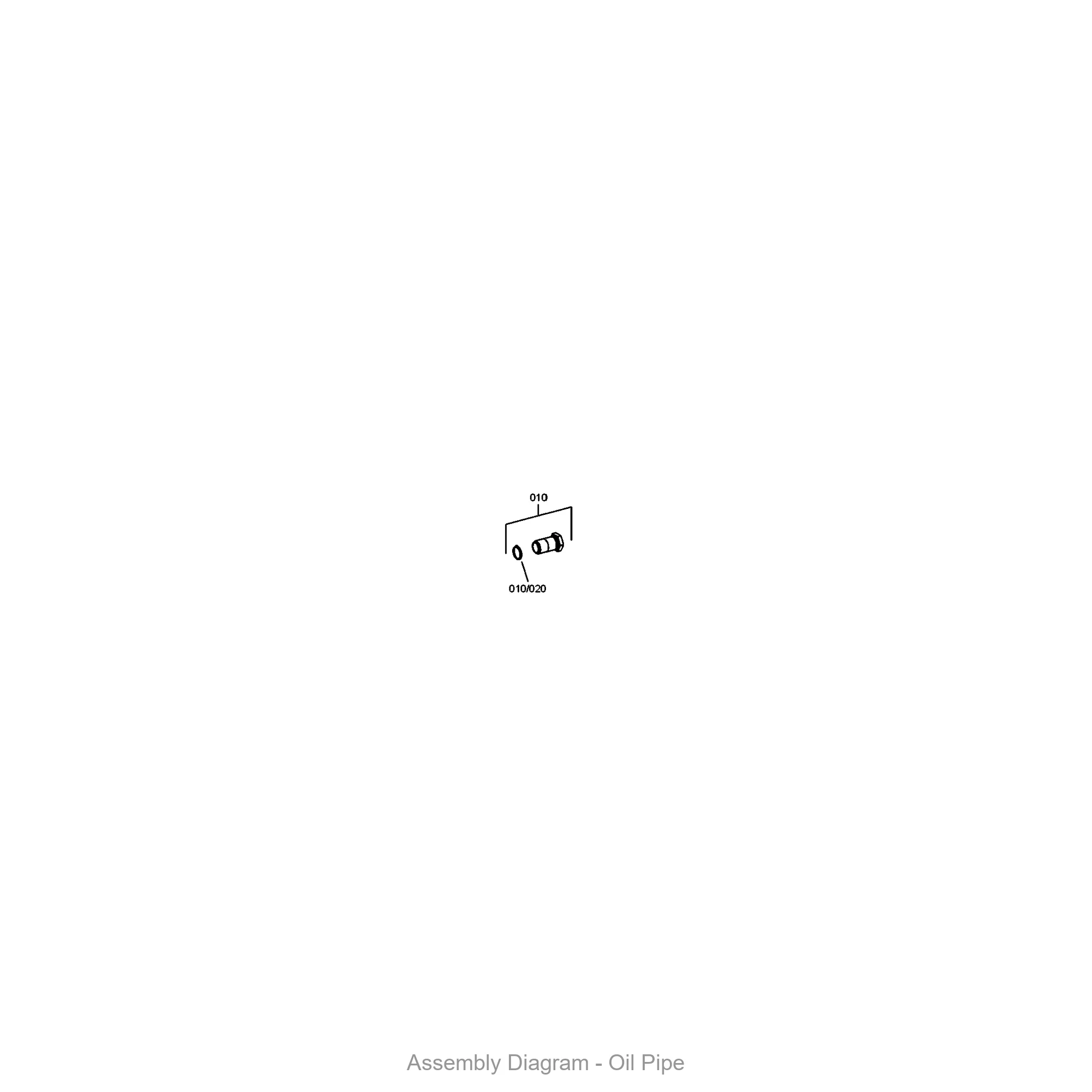

Exploded View / Assembly Diagram
The diagram below shows where ZF 4646.121.416 is located within the transmission assembly.
