ZF 4646.231.001 OIL DIPSTICK
ZF Part Number: 4646.231.001 (also written as 4646231001 / 4646.231.001 / 4646 231 001)
OEM Cross Reference / Interchange Numbers
ZF 4646.231.001 (OIL DIPSTICK) is the original manufacturer part. The following OEM and third-party part numbers are direct cross-references:
| Brand / OEM | Part Number | Type |
|---|---|---|
| 柳工 | SP100496 | OEM Cross Ref |
If you are looking for 柳工 SP100496, the correct ZF original part number is 4646.231.001. This is a 100% genuine ZF replacement, guaranteed to be fully compatible with 柳工 equipment that uses ZF transmissions.
Compatible ZF Transmission Models
This oil dipstick is used in the following ZF transmission models:
- ZF 3 WG 310
- ZF 4 WG 250(2)
- ZF 4 WG 260
- ZF 4 WG 310
Part Location in Assembly
| Section | Position No. | Qty |
|---|---|---|
| Filler Nozzle | 050 | 1 |
| Loose Parts | 320 | 1 |
Related Parts in Same Assembly
- 0501.213.026 — GEAR PUMP (Qty: 1)
- 0501.214.082 — SUCTION FILTER (Qty: 1)
- 0737.835.182 — UNION SCREW (Qty: 3)
- 4168.037.069 — CONVERTER (Qty: 1)
- 4644.306.558 — VALVE BLOCK (Qty: 1)
- 4646.301.095 — HOUSING (Qty: 1)
- 4646.302.013 — INPUT SHAFT (Qty: 1)
- 4646.303.030 — OUTPUT SHAFT (Qty: 1)
Frequently Asked Questions
What is ZF part number 4646.231.001?
ZF 4646.231.001 is an OEM oil dipstick produced by ZF Friedrichshafen AG, one of the world’s largest automotive suppliers. It is designed for use in ZF powershift transmissions, specifically in models such as 3 WG 310, 4 WG 250(2), 4 WG 260, 4 WG 310. This is a genuine ZF component, not an aftermarket reproduction.
Which ZF transmissions use 4646.231.001?
This oil dipstick is found in 4 ZF transmission variants, including: 3 WG 310, 4 WG 250(2), 4 WG 260, 4 WG 310. These transmissions are commonly used in wheel loaders, graders, and other heavy construction equipment. Contact us to verify fitment for your specific machine.
Where is ZF 4646.231.001 installed in the transmission?
This oil dipstick is located in the filler nozzle, loose parts area of the transmission. It appears in 6 different assembly configurations. In the service manual, look for position number 050 in the Filler Nozzle section.
How do I look up ZF part 4646.231.001?
This part can be found under several formats: 4646231001 / 4646.231.001 / 4646 231 001. All formats refer to the same genuine ZF component. When ordering, any of these numbers will work. The official ZF catalog uses the dotted format (4646.231.001).
Where can I buy ZF 4646.231.001?
You can purchase genuine ZF 4646.231.001 from PartsZF.com (operated by Tianjin Xiaohang Construction Machinery Co., Ltd). We maintain direct supply channels with ZF and offer worldwide shipping. Contact our parts specialists for current pricing and lead times.
Need this part? Contact our ZF parts specialist for pricing and availability. We ship worldwide with OEM quality guarantee.

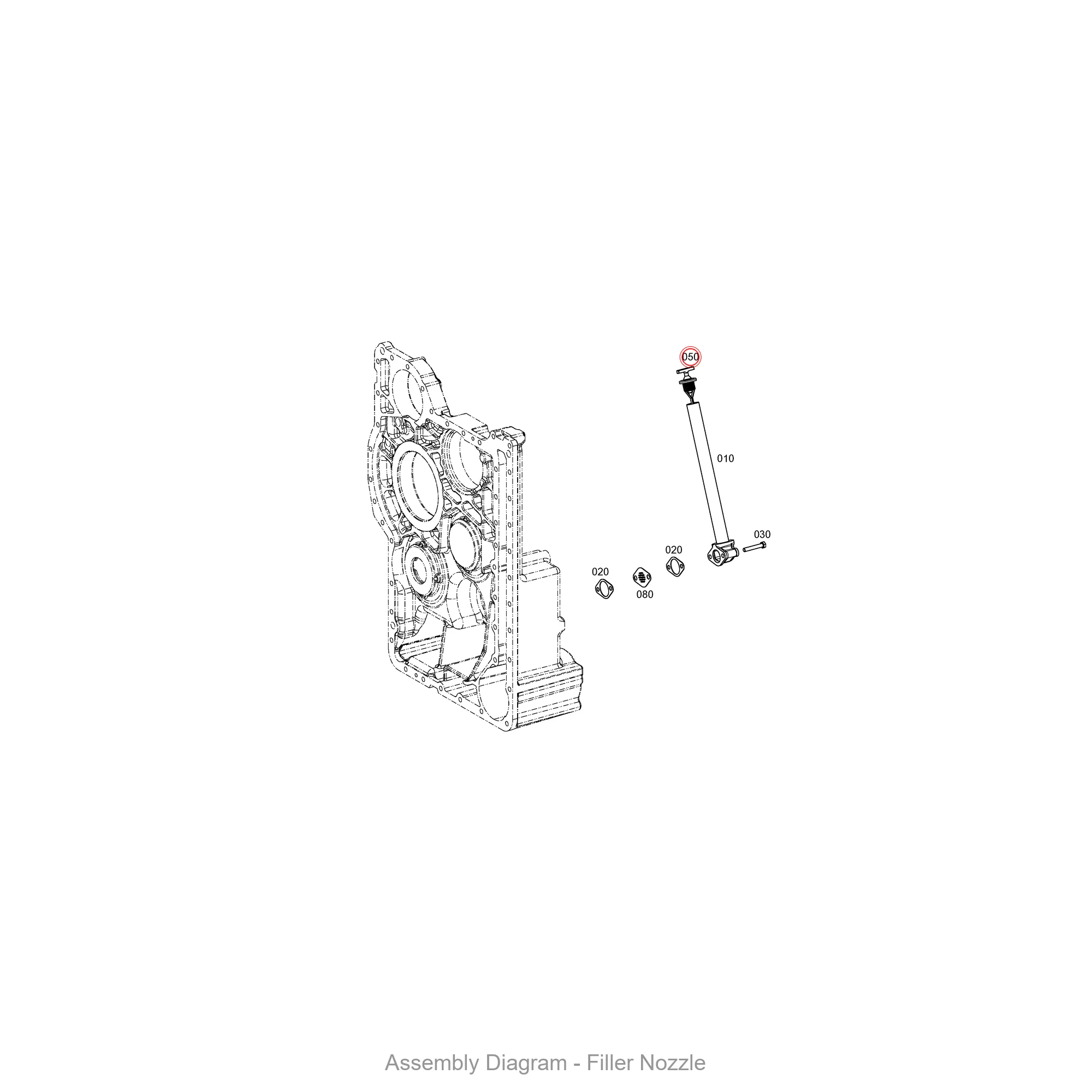

Exploded View / Assembly Diagram
The diagram below shows where ZF 4646.231.001 is located within the transmission assembly.
