ZF 4646.302.172 CONVERTER BELL
ZF Part Number: 4646.302.172 (also written as 4646302172 / 4646.302.172 / 4646 302 172)
OEM Cross Reference / Interchange Numbers
ZF 4646.302.172 (CONVERTER BELL) is the original manufacturer part. The following OEM and third-party part numbers are direct cross-references:
| Brand / OEM | Part Number | Type |
|---|---|---|
| 徐工铲运 | 860587713 | OEM Cross Ref |
| 柳工 | SP160234 | OEM Cross Ref |
This ZF part (4646.302.172) directly replaces the following OEM numbers: 徐工铲运: 860587713; 柳工: SP160234. All listed cross-reference numbers are confirmed compatible with ZF 4646.302.172.
Compatible ZF Transmission Models
This converter bell is used in the following ZF transmission models:
- ZF 3 WG 260
- ZF 4 WG 260
- ZF 4 WG 260(4)
- ZF 4 WG 310
Part Location in Assembly
| Section | Position No. | Qty |
|---|---|---|
| Input | 060 | 1 |
Related Parts in Same Assembly
- 0501.209.719 — INDUCTIVE SENSOR (Qty: 1)
- 0501.214.082 — SUCTION FILTER (Qty: 1)
- 0501.214.611 — GEAR PUMP (Qty: 1)
- 0501.223.163 — PISTON PUMP (Qty: 1)
- 0501.326.183 — SOLENOID VALVE (Qty: 1)
- 0636.015.124 — HEXAGON SCREW (Qty: 8)
- 0636.015.130 — HEXAGON SCREW (Qty: 6)
- 0637.100.196 — PIPE UNION (Qty: 2)
Frequently Asked Questions
What is ZF part number 4646.302.172?
ZF 4646.302.172 is an OEM converter bell produced by ZF Friedrichshafen AG, one of the world’s largest automotive suppliers. It is designed for use in ZF powershift transmissions, specifically in models such as 3 WG 260, 4 WG 260, 4 WG 260(4), 4 WG 310. This is a genuine ZF component, not an aftermarket reproduction.
Which ZF transmissions use 4646.302.172?
This converter bell is found in 4 ZF transmission variants, including: 3 WG 260, 4 WG 260, 4 WG 260(4), 4 WG 310. These transmissions are commonly used in wheel loaders, graders, and other heavy construction equipment. Contact us to verify fitment for your specific machine.
Where is ZF 4646.302.172 installed in the transmission?
This converter bell is located in the input area of the transmission. It appears in 12 different assembly configurations. In the service manual, look for position number 060 in the Input section.
How do I look up ZF part 4646.302.172?
This part can be found under several formats: 4646302172 / 4646.302.172 / 4646 302 172. All formats refer to the same genuine ZF component. When ordering, any of these numbers will work. The official ZF catalog uses the dotted format (4646.302.172).
Where can I buy ZF 4646.302.172?
You can purchase genuine ZF 4646.302.172 from PartsZF.com (operated by Tianjin Xiaohang Construction Machinery Co., Ltd). We maintain direct supply channels with ZF and offer worldwide shipping. Contact our parts specialists for current pricing and lead times.
Need this part? Contact our ZF parts specialist for pricing and availability. We ship worldwide with OEM quality guarantee.

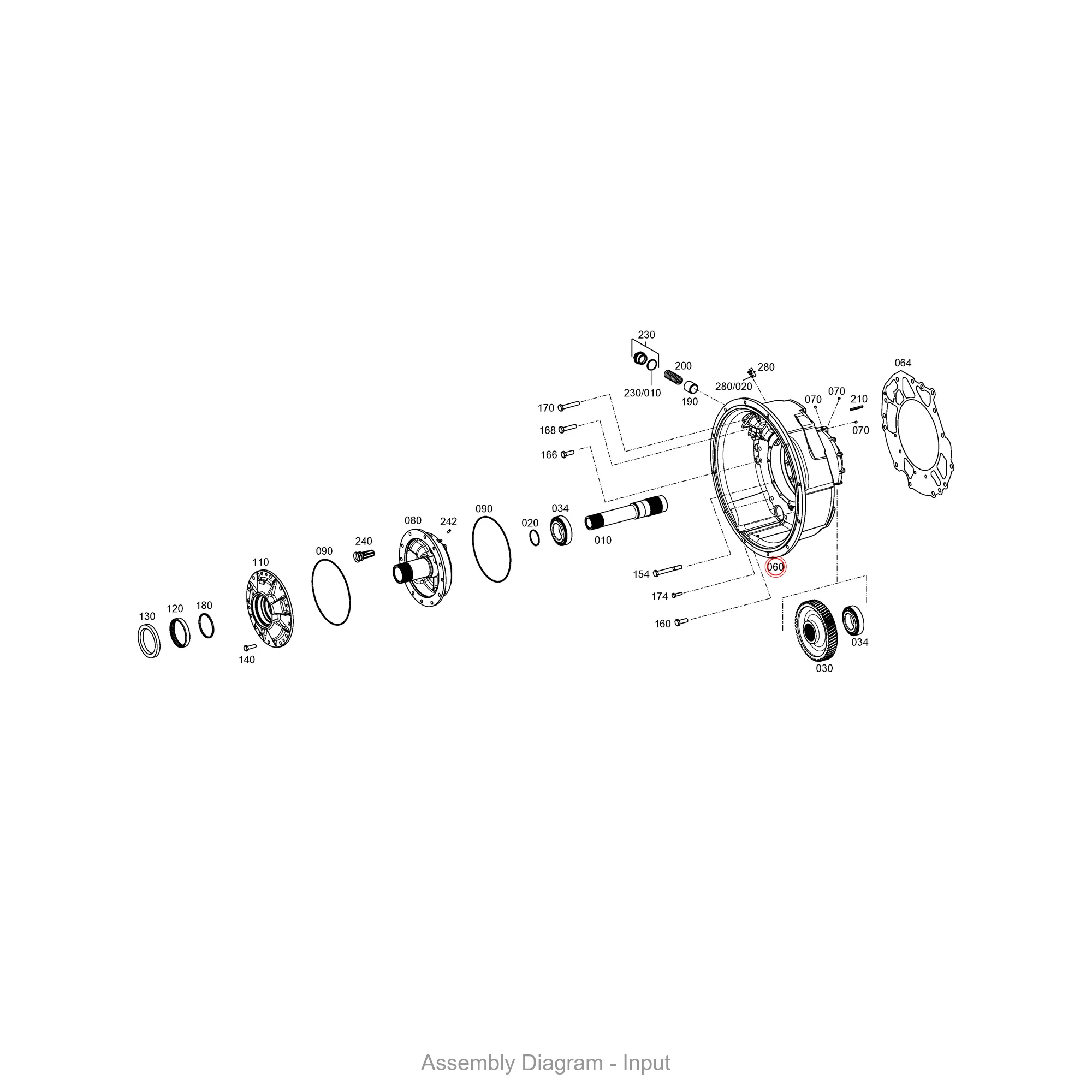

Exploded View / Assembly Diagram
The diagram below shows where ZF 4646.302.172 is located within the transmission assembly.
