ZF 4646.304.060 RING GEAR CARRIER
ZF Part Number: 4646.304.060 (also written as 4646304060 / 4646.304.060 / 4646 304 060)
Compatible ZF Transmission Models
This ring gear carrier is used in the following ZF transmission models:
- ZF 5 WG 260
- ZF 6 WG 250
- ZF 6 WG 260
- ZF 6 WG 260(4)
Part Location in Assembly
| Section | Position No. | Qty |
|---|---|---|
| Crawler | 210 | 1 |
| Differential | 160 | 1 |
| Output | 210 | 1 |
Related Parts in Same Assembly
- 0501.213.026 — GEAR PUMP (Qty: 1)
- 0501.214.082 — SUCTION FILTER (Qty: 1)
- 0637.100.508 — UNION SCREW (Qty: 2)
- 0899.316.841 — HOSE PIPE (Qty: 1)
- 4168.037.057 — CONVERTER (Qty: 1)
- 4644.306.560 — VALVE BLOCK (Qty: 1)
- 4646.301.228 — HOUSING (Qty: 1)
- 4646.302.013 — INPUT SHAFT (Qty: 1)
Frequently Asked Questions
What is ZF part number 4646.304.060?
ZF 4646.304.060 is an OEM ring gear carrier produced by ZF Friedrichshafen AG, one of the world’s largest automotive suppliers. It is designed for use in ZF powershift transmissions, specifically in models such as 5 WG 260, 6 WG 250, 6 WG 260, 6 WG 260(4). This is a genuine ZF component, not an aftermarket reproduction.
Which ZF transmissions use 4646.304.060?
This ring gear carrier is found in 4 ZF transmission variants, including: 5 WG 260, 6 WG 250, 6 WG 260, 6 WG 260(4). These transmissions are commonly used in wheel loaders, graders, and other heavy construction equipment. Contact us to verify fitment for your specific machine.
Where is ZF 4646.304.060 installed in the transmission?
This ring gear carrier is located in the differential, output area of the transmission. It appears in 30 different assembly configurations. In the service manual, look for position number 210 in the Crawler section.
How do I look up ZF part 4646.304.060?
This part can be found under several formats: 4646304060 / 4646.304.060 / 4646 304 060. All formats refer to the same genuine ZF component. When ordering, any of these numbers will work. The official ZF catalog uses the dotted format (4646.304.060).
How do I inspect ZF 4646.304.060?
Inspect gear teeth for pitting, spalling, cracks, and abnormal wear patterns. Check tooth contact pattern using marking compound. Replace if damage exceeds ZF service limits.
Where can I buy ZF 4646.304.060?
You can purchase genuine ZF 4646.304.060 from PartsZF.com (operated by Tianjin Xiaohang Construction Machinery Co., Ltd). We maintain direct supply channels with ZF and offer worldwide shipping. Contact our parts specialists for current pricing and lead times.
Need this part? Contact our ZF parts specialist for pricing and availability. We ship worldwide with OEM quality guarantee.

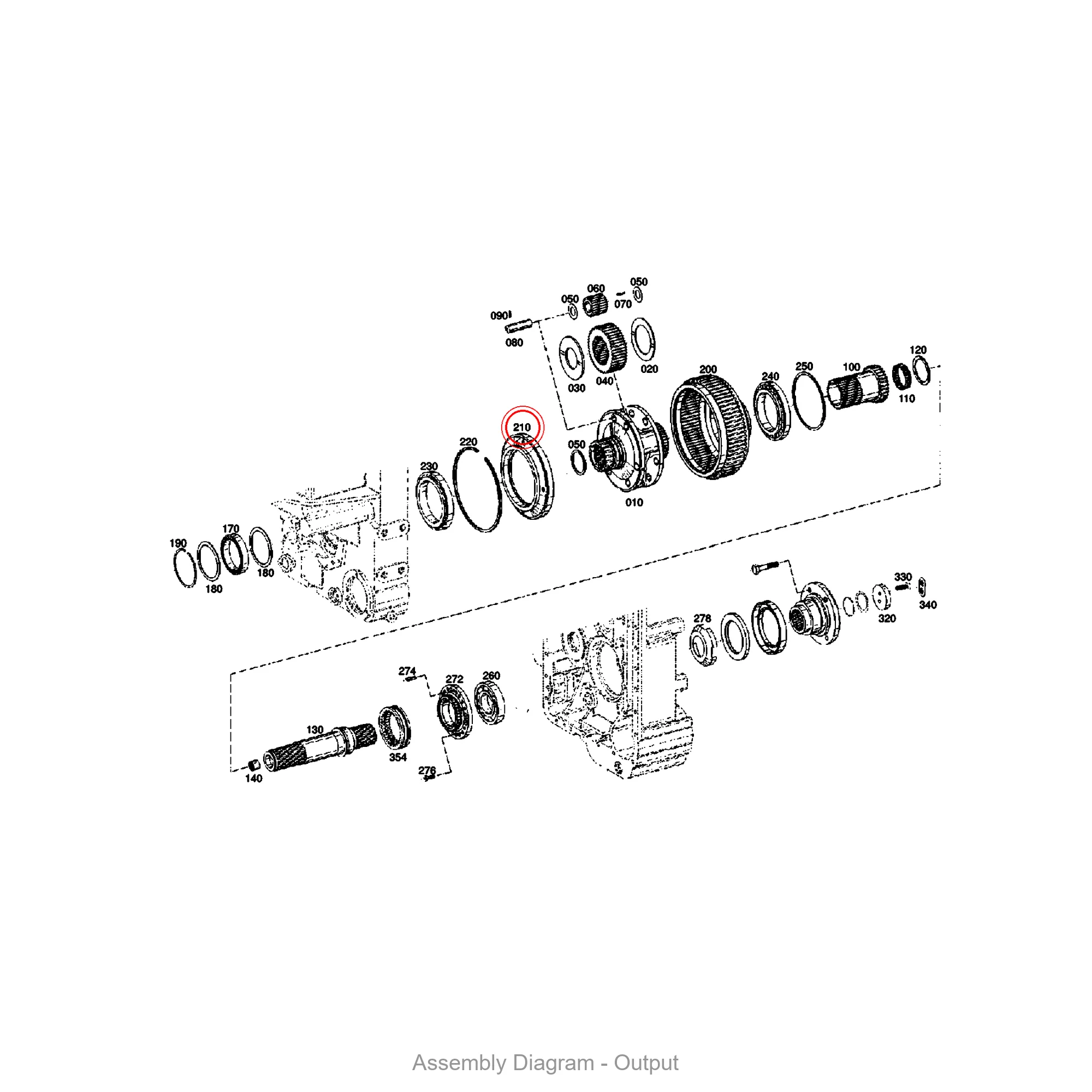

Exploded View / Assembly Diagram
The diagram below shows where ZF 4646.304.060 is located within the transmission assembly.
