ZF 4646.305.036 PISTON
ZF Part Number: 4646.305.036 (also written as 4646305036 / 4646.305.036 / 4646 305 036)
Compatible ZF Transmission Models
This piston is used in the following ZF transmission models:
- ZF 5 WG 260
- ZF 6 WG 250
- ZF 6 WG 260
- ZF 6 WG 260(4)
Part Location in Assembly
| Section | Position No. | Qty |
|---|---|---|
| Axle Disconnection | 080 | 1 |
| Crawler | 680 | 1 |
| Differential | 680 | 1 |
Related Parts in Same Assembly
- 0501.213.026 — GEAR PUMP (Qty: 1)
- 0501.214.082 — SUCTION FILTER (Qty: 1)
- 0637.100.508 — UNION SCREW (Qty: 2)
- 0899.316.841 — HOSE PIPE (Qty: 1)
- 4168.037.057 — CONVERTER (Qty: 1)
- 4644.306.560 — VALVE BLOCK (Qty: 1)
- 4646.301.228 — HOUSING (Qty: 1)
- 4646.302.013 — INPUT SHAFT (Qty: 1)
Frequently Asked Questions
What is ZF part number 4646.305.036?
ZF 4646.305.036 is an OEM piston produced by ZF Friedrichshafen AG, one of the world’s largest automotive suppliers. It is designed for use in ZF powershift transmissions, specifically in models such as 5 WG 260, 6 WG 250, 6 WG 260, 6 WG 260(4). This is a genuine ZF component, not an aftermarket reproduction.
Which ZF transmissions use 4646.305.036?
This piston is found in 4 ZF transmission variants, including: 5 WG 260, 6 WG 250, 6 WG 260, 6 WG 260(4). These transmissions are commonly used in wheel loaders, graders, and other heavy construction equipment. Contact us to verify fitment for your specific machine.
Where is ZF 4646.305.036 installed in the transmission?
This piston is located in the axle disconnection, differential area of the transmission. It appears in 30 different assembly configurations. In the service manual, look for position number 080 in the Axle Disconnection section.
How do I look up ZF part 4646.305.036?
This part can be found under several formats: 4646305036 / 4646.305.036 / 4646 305 036. All formats refer to the same genuine ZF component. When ordering, any of these numbers will work. The official ZF catalog uses the dotted format (4646.305.036).
Where can I buy ZF 4646.305.036?
You can purchase genuine ZF 4646.305.036 from PartsZF.com (operated by Tianjin Xiaohang Construction Machinery Co., Ltd). We maintain direct supply channels with ZF and offer worldwide shipping. Contact our parts specialists for current pricing and lead times.
Need this part? Contact our ZF parts specialist for pricing and availability. We ship worldwide with OEM quality guarantee.

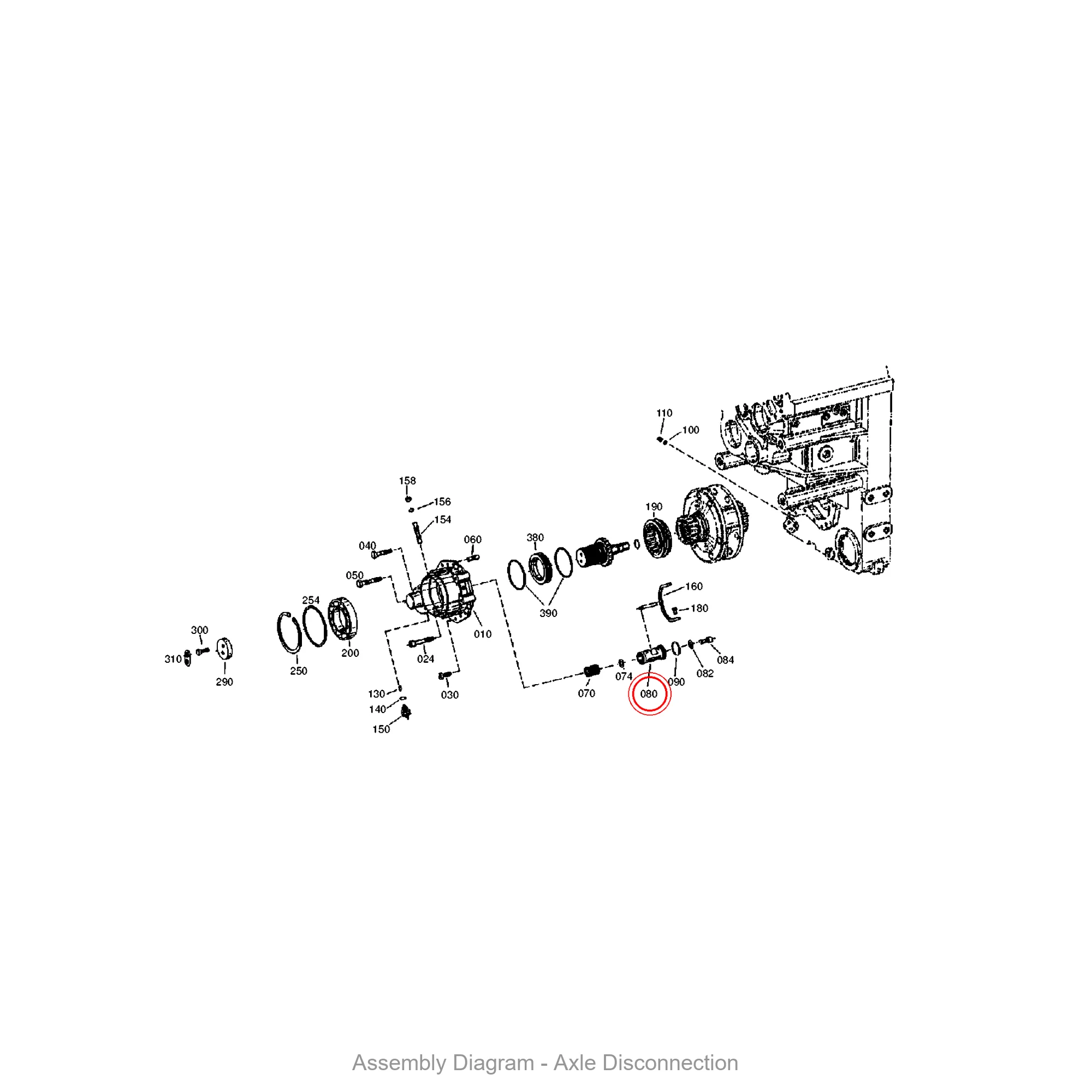

Exploded View / Assembly Diagram
The diagram below shows where ZF 4646.305.036 is located within the transmission assembly.
