ZF 4646.323.022 SUPPORT RING
ZF Part Number: 4646.323.022 (also written as 4646323022 / 4646.323.022 / 4646 323 022)
Compatible ZF Transmission Models
This support ring is used in the following ZF transmission models:
- ZF 3 WG 310
- ZF 3 WG 310(4)
Part Location in Assembly
| Section | Position No. | Qty |
|---|---|---|
| Crawler | 140 | 1 |
| Output | 140 | 1 |
Related Parts in Same Assembly
- 4646.301.316 — HOUSING (Qty: 1)
- 4646.301.283 — COVER (Qty: 1)
- 0630.361.049 — SEALING CAP (Qty: 1)
- 0636.015.304 — HEXAGON SCREW (Qty: 11)
- 0636.101.828 — CAP SCREW (Qty: 2)
- 0631.306.621 — CYLINDRICAL PIN (Qty: 2)
- 4646.201.022 — COVER SHEET (Qty: 1)
- 4646.301.295 — SCREEN SHEET (Qty: 1)
Frequently Asked Questions
What is ZF part number 4646.323.022?
ZF 4646.323.022 is an OEM support ring produced by ZF Friedrichshafen AG, one of the world’s largest automotive suppliers. It is designed for use in ZF powershift transmissions, specifically in models such as 3 WG 310, 3 WG 310(4). This is a genuine ZF component, not an aftermarket reproduction.
Which ZF transmissions use 4646.323.022?
This support ring is found in 2 ZF transmission variants, including: 3 WG 310, 3 WG 310(4). These transmissions are commonly used in wheel loaders, graders, and other heavy construction equipment. Contact us to verify fitment for your specific machine.
Where is ZF 4646.323.022 installed in the transmission?
This support ring is located in the crawler, output area of the transmission. It appears in 2 different assembly configurations. In the service manual, look for position number 140 in the Crawler section.
How do I look up ZF part 4646.323.022?
This part can be found under several formats: 4646323022 / 4646.323.022 / 4646 323 022. All formats refer to the same genuine ZF component. When ordering, any of these numbers will work. The official ZF catalog uses the dotted format (4646.323.022).
Where can I buy ZF 4646.323.022?
You can purchase genuine ZF 4646.323.022 from PartsZF.com (operated by Tianjin Xiaohang Construction Machinery Co., Ltd). We maintain direct supply channels with ZF and offer worldwide shipping. Contact our parts specialists for current pricing and lead times.
Need this part? Contact our ZF parts specialist for pricing and availability. We ship worldwide with OEM quality guarantee.

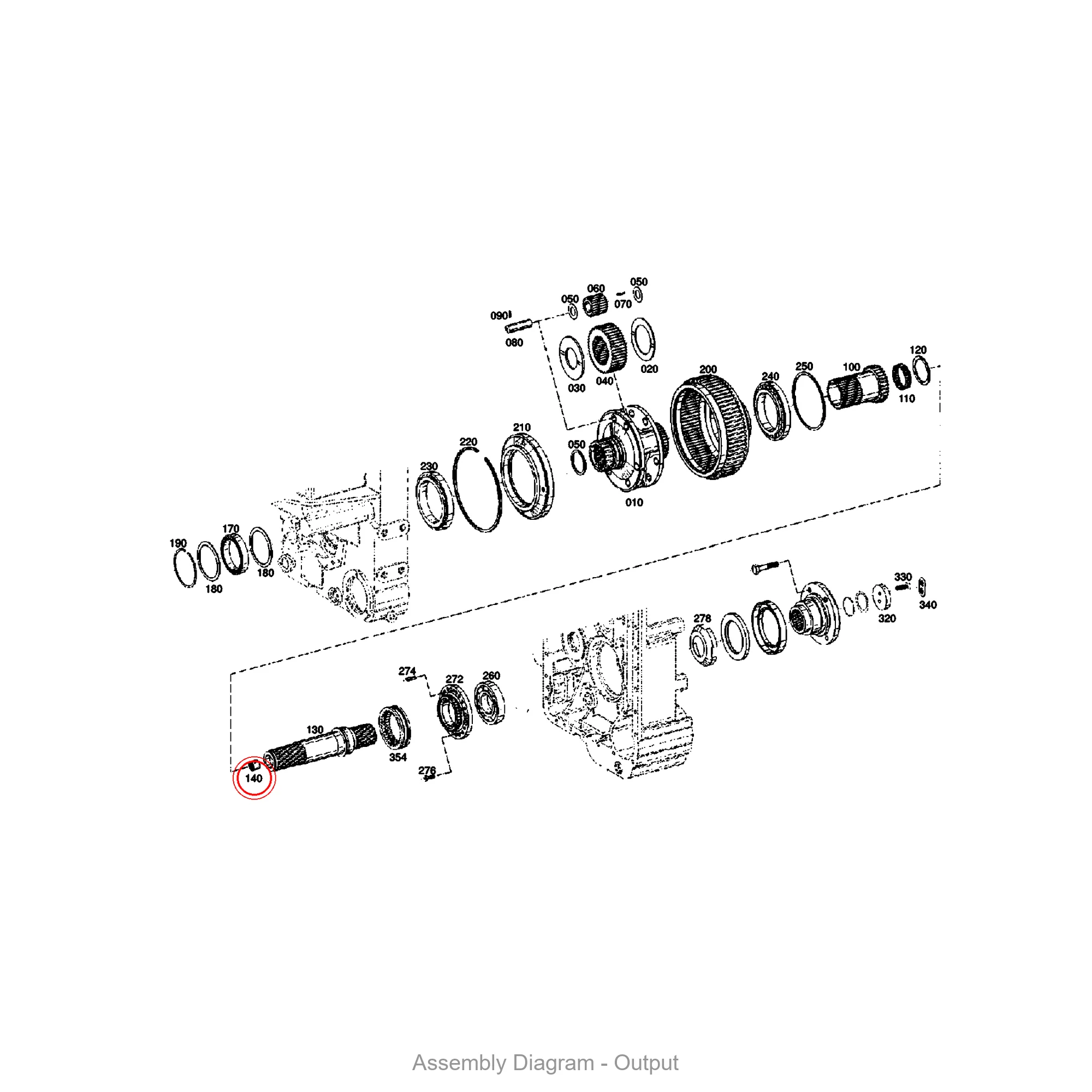

Exploded View / Assembly Diagram
The diagram below shows where ZF 4646.323.022 is located within the transmission assembly.
