ZF 4646.323.026 CONNECTION PLATE
ZF Part Number: 4646.323.026 (also written as 4646323026 / 4646.323.026 / 4646 323 026)
Compatible ZF Transmission Models
This connection plate is used in the following ZF transmission models:
- ZF 3 WG 260
- ZF 3 WG 310
- ZF 3 WG 310(4)
- ZF 4 WG 310
- ZF 4 WG 310(4)
- ZF 6 WG 250
- ZF 6 WG 260
- ZF 6 WG 310
Part Location in Assembly
| Section | Position No. | Qty |
|---|---|---|
| Axle Disconnection | 470 | 1 |
| Crawler | 470 | 1 |
| Output | 470 | 1 |
Related Parts in Same Assembly
- 0501.208.244 — SUCTION FILTER (Qty: 1)
- 0501.213.026 — GEAR PUMP (Qty: 1)
- 0501.223.158 — PISTON PUMP (Qty: 1)
- 0637.100.508 — UNION SCREW (Qty: 3)
- 4168.037.034 — CONVERTER (Qty: 1)
- 4644.306.560 — VALVE BLOCK (Qty: 1)
- 4646.301.104 — HOUSING (Qty: 1)
- 4646.302.013 — INPUT SHAFT (Qty: 1)
Frequently Asked Questions
What is ZF part number 4646.323.026?
ZF 4646.323.026 is an OEM connection plate produced by ZF Friedrichshafen AG, one of the world’s largest automotive suppliers. It is designed for use in ZF powershift transmissions, specifically in models such as 3 WG 260, 3 WG 310, 3 WG 310(4), 4 WG 310, 4 WG 310(4). This is a genuine ZF component, not an aftermarket reproduction.
Which ZF transmissions use 4646.323.026?
This connection plate is found in 8 ZF transmission variants, including: 3 WG 260, 3 WG 310, 3 WG 310(4), 4 WG 310, 4 WG 310(4), 6 WG 250, 6 WG 260, 6 WG 310. These transmissions are commonly used in wheel loaders, graders, and other heavy construction equipment. Contact us to verify fitment for your specific machine.
Where is ZF 4646.323.026 installed in the transmission?
This connection plate is located in the axle disconnection, crawler, output area of the transmission. It appears in 19 different assembly configurations. In the service manual, look for position number 470 in the Axle Disconnection section.
How do I look up ZF part 4646.323.026?
This part can be found under several formats: 4646323026 / 4646.323.026 / 4646 323 026. All formats refer to the same genuine ZF component. When ordering, any of these numbers will work. The official ZF catalog uses the dotted format (4646.323.026).
Where can I buy ZF 4646.323.026?
You can purchase genuine ZF 4646.323.026 from PartsZF.com (operated by Tianjin Xiaohang Construction Machinery Co., Ltd). We maintain direct supply channels with ZF and offer worldwide shipping. Contact our parts specialists for current pricing and lead times.
Need this part? Contact our ZF parts specialist for pricing and availability. We ship worldwide with OEM quality guarantee.

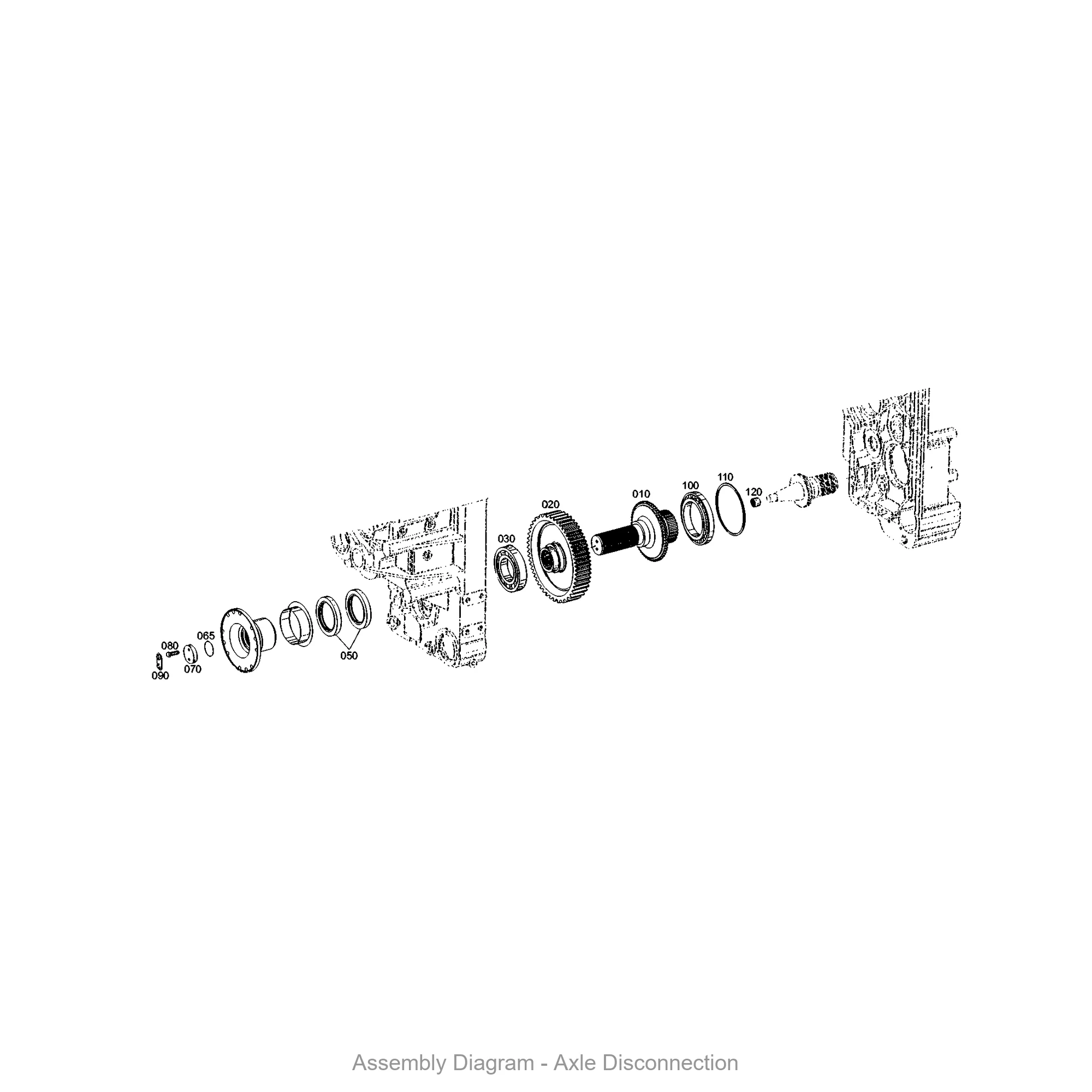

Exploded View / Assembly Diagram
The diagram below shows where ZF 4646.323.026 is located within the transmission assembly.
