ZF 4646.353.149 SPUR GEAR
ZF Part Number: 4646.353.149 (also written as 4646353149 / 4646.353.149 / 4646 353 149)
Compatible ZF Transmission Models
This spur gear is used in the following ZF transmission models:
- ZF 4 WG 258
- ZF 4 WG 260
- ZF 4 WG 260(2)
- ZF 4 WG 260(4)
- ZF 4 WG 261
- ZF 4 WG 261(4)
- ZF 4 WG 310
- ZF 4 WG 310(4)
Part Location in Assembly
| Section | Position No. | Qty |
|---|---|---|
| Coupling | 450 | 1 |
Related Parts in Same Assembly
- 0501.006.922 — BRAKE (Qty: 1)
- 0501.214.082 — SUCTION FILTER (Qty: 1)
- 0501.214.611 — GEAR PUMP (Qty: 1)
- 0501.216.209 — RANGE SELECTOR (Qty: 1)
- 0501.223.162 — PISTON PUMP (Qty: 1)
- 0636.015.124 — HEXAGON SCREW (Qty: 4)
- 0637.100.196 — PIPE UNION (Qty: 1)
- 4168.037.051 — CONVERTER (Qty: 1)
Frequently Asked Questions
What is ZF part number 4646.353.149?
ZF 4646.353.149 is an OEM spur gear produced by ZF Friedrichshafen AG, one of the world’s largest automotive suppliers. It is designed for use in ZF powershift transmissions, specifically in models such as 4 WG 258, 4 WG 260, 4 WG 260(2), 4 WG 260(4), 4 WG 261. Use this page for ZF part-number lookup and RFQ confirmation, not an aftermarket reproduction.
Which ZF transmissions use 4646.353.149?
This spur gear is found in 8 ZF transmission variants, including: 4 WG 258, 4 WG 260, 4 WG 260(2), 4 WG 260(4), 4 WG 261, 4 WG 261(4), 4 WG 310, 4 WG 310(4). These transmissions are commonly used in wheel loaders, graders, and other heavy construction equipment. Contact us to verify fitment for your specific machine.
Where is ZF 4646.353.149 installed in the transmission?
This spur gear is located in the coupling area of the transmission. It appears in 15 different assembly configurations. In the service manual, look for position number 450 in the Coupling section.
How do I look up ZF part 4646.353.149?
This part can be found under several formats: 4646353149 / 4646.353.149 / 4646 353 149. All formats refer to the same ZF component. When ordering, any of these numbers will work. The official ZF catalog uses the dotted format (4646.353.149).
How do I inspect ZF 4646.353.149?
Inspect gear teeth for pitting, spalling, cracks, and abnormal wear patterns. Check tooth contact pattern using marking compound. Replace if damage exceeds ZF service limits.
Where can I buy ZF 4646.353.149?
You can purchase ZF 4646.353.149 from PartsZF.com (operated by Tianjin Xiaohang Construction Machinery Co., Ltd). We maintain direct supply channels with ZF and offer worldwide shipping. Contact our parts specialists for current pricing and lead times.
Need this part? Contact our ZF parts specialist for pricing and availability. We ship worldwide with fitment confirmation required.

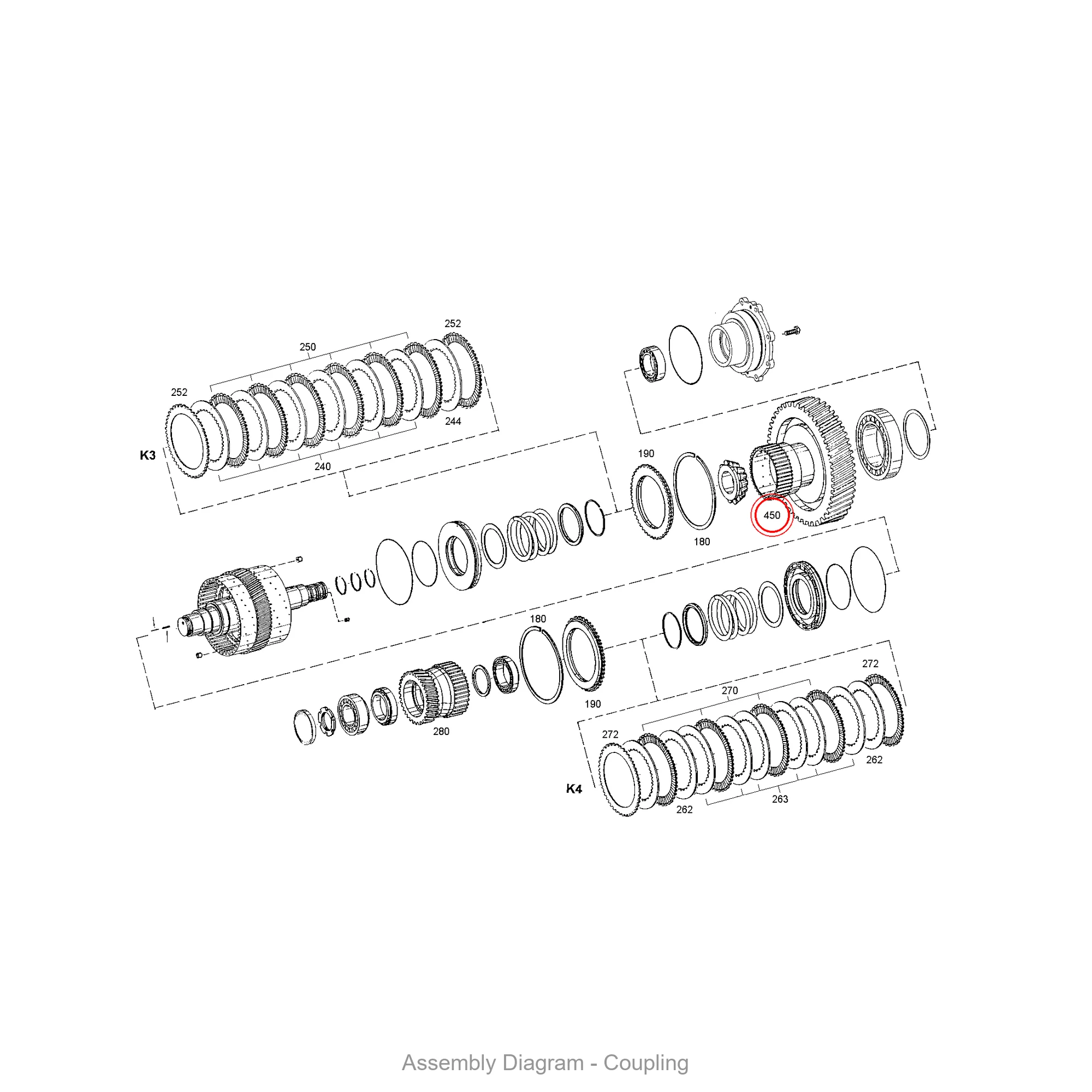

Exploded View / Assembly Diagram
The diagram below shows where ZF 4646.353.149 is located within the transmission assembly.
