Overview
The ZF 4651.106.013 SHIFT SYSTEM is a precision-engineered mechanical assembly designed for the WG 100 Series of heavy-duty transmissions. This genuine OEM part controls the engagement and disengagement of gear ratios by transmitting driver input from the selector lever to the transmission’s internal valve body. Positioned within the transmission housing, it ensures smooth, reliable shifting under high-torque conditions. The SKU 4651.106.013 is a direct replacement for worn or damaged shift mechanisms, restoring original shift feel and preventing driveline damage. For complete assembly integrity, this shift system integrates with the 4651101004: TRANSMISSION HOUSING and the 4651301014: HOUSING to maintain structural alignment.
Symptoms of Failure
- Hard or imprecise gear engagement – When the shift system wears, operators often experience difficulty moving the selector lever into gear, or the lever feels loose and sloppy, indicating internal linkage wear.
- Transmission slipping out of gear – A failing shift mechanism may fail to lock the selected gear, causing the transmission to unexpectedly slip into neutral under load, a common long-tail search query for “ZF WG100 shift system slipping.”
- Audible clunking or grinding during shifts – Worn shift forks or detent springs produce metallic noises when changing gears, signaling that the shift system no longer aligns properly with the clutch packs.
- Oil leaks near the shift shaft – Degraded seals within the shift system allow transmission fluid to escape, often visible as drips around the shift tower area, matching searches for “ZF shift shaft oil leak repair.”
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 4651.106.013 |
| OEM Reference | ZF 4651.106.013 |
| Material | Hardened steel with zinc-plated finish |
| Weight | 1.2 kg (2.65 lbs) |
| Dimensions (L x W x H) | 180 mm x 80 mm x 60 mm |
| Compatible Housing | 4651101004, 4651301008 |
| Sealing Component | 0634303928: O-RING |
Compatibility
This shift system is engineered for the ZF WG 100 Series, including models such as the WG180, WG200, and WG210. It is also compatible with select WG 80 and WG 120 variants that share the same shift tower interface. Always verify your transmission’s serial number against the OEM parts catalog. For related internal components, the 4651203002: SCREEN SHEET and 4651303005: SCREEN SHEET are frequently replaced during shift system overhauls to prevent debris contamination.
Related Components
| Part Number | Name | Function |
|---|---|---|
| 4651101004 | TRANSMISSION HOUSING | Main structural casing for gear train |
| 4651301014 | HOUSING | Secondary housing for shift mechanism |
| 0634303928 | O-RING | Seals shift shaft bore against leaks |
| 4651301008 | TRANSMISSION HOUSING | Alternate housing variant for WG200 |
| 4651203002 | SCREEN SHEET | Filters debris from hydraulic fluid |
| 4651303005 | SCREEN SHEET | Secondary filtration for valve body |
| 0636101032 | CAP SCREW | Fastens shift system to housing |
| 0630361028 | SEALING CAP | Protects shift shaft from contamination |
| 0636304032 | SCREW PLUG | Closes hydraulic test ports |
| 0634303312 | O-RING | Seals screw plug against pressure loss |
ZF 4651.106.013 SHIFT SYSTEM – Shift System RFQ Support
PartsZF supports ZF 4651.106.013 SHIFT SYSTEM RFQs by checking the part number, related documentation, and buyer-supplied transmission context before quotation.
Part-Number Summary
Use ZF number 4651.106.013 when sending your RFQ. PartsZF can review dotted, spaced, and compact number formats against the available product and documentation records.
Application Context

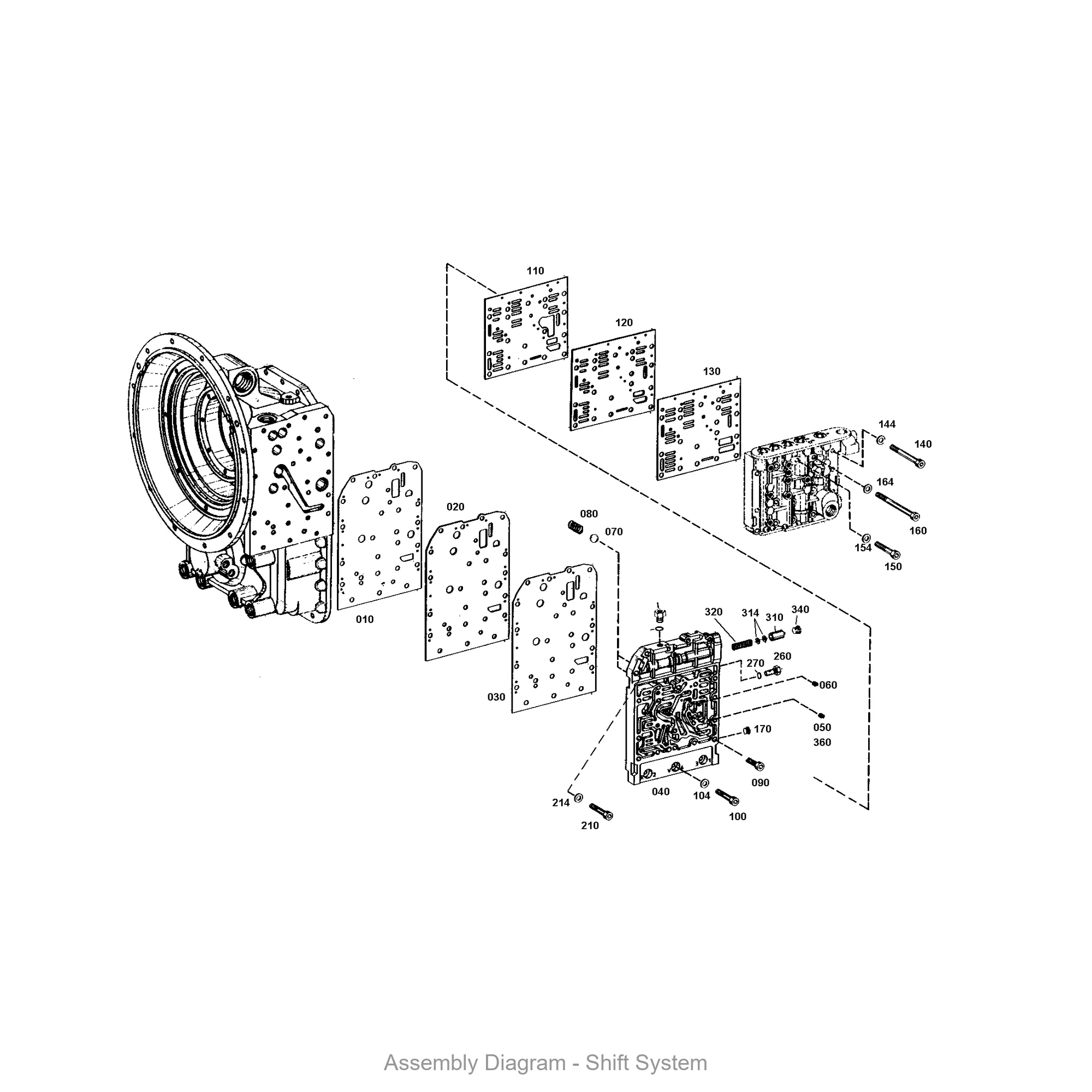

- Illustration section: SHIFT SYSTEM
Cross Reference Support
If you have an OEM number, old supplier number, or visible marking, include it with your RFQ so PartsZF can compare it with the available records.
Specification Snapshot
| ZF part number | 4651.106.013 |
|---|---|
| Normalized SKU | 4651106013 |
| Part name | SHIFT SYSTEM |
| Product category | shift system |
| RFQ support | Part-number lookup and documentation review |
| Media support | Product photo or diagram review when available |
Image and Documentation Notes
Current product media status: diagram. Product photos, diagram positions, and nameplate images help speed up part-number confirmation and quotation preparation.
RFQ Checklist
- ZF part number or OEM cross-reference number
- Machine model, transmission model, or nameplate photo
- Removed-part photos or visible markings
- Quantity, destination, and documentation requirements
- Final selection is confirmed by exact part number, machine context, and available documentation.
