Overview

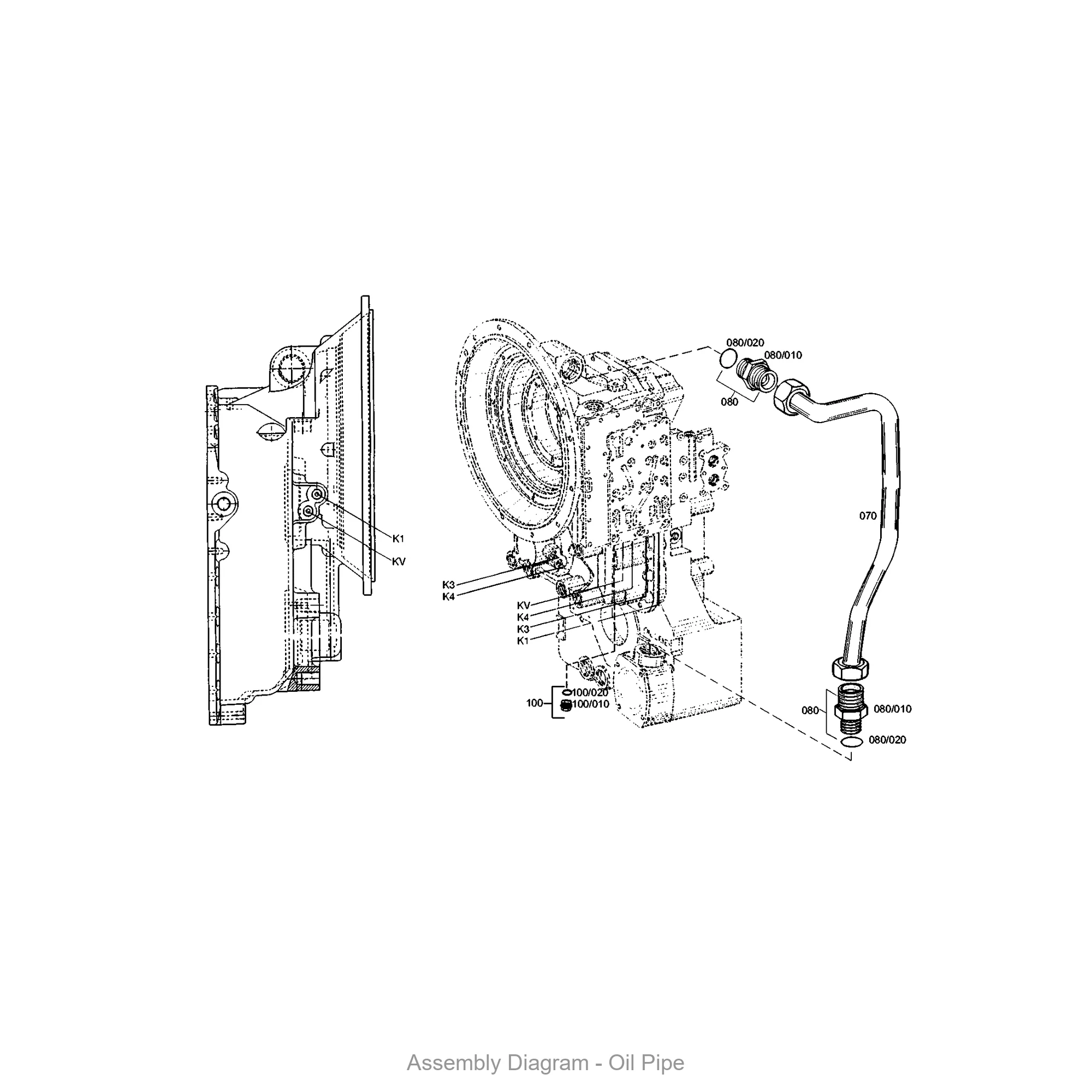

The ZF 4651.121.007 OIL PIPE is a critical fluid delivery component engineered specifically for the WG 100 series transmission. This OEM genuine part ensures precise lubrication and hydraulic pressure distribution within the gear train, directly supporting clutch pack engagement and planetary gearset cooling. Positioned inside the main valve body assembly, the SKU 4651.121.007 channels transmission fluid from the pump to the rotating clutches, preventing metal-on-metal contact during high-torque operations. Without this pipe, the transmission cannot maintain consistent oil flow, leading to rapid component wear. It integrates seamlessly with the 4651101004: TRANSMISSION HOUSING and the 4651301014: HOUSING to form a sealed fluid circuit.
Symptoms of Failure
- Transmission fluid leaks near the valve body: A cracked or corroded 4651.121.007 oil pipe will drip ATF externally, often pooling under the bell housing. This is a common “ZF WG100 oil leak” symptom.
- Delayed or harsh gear engagement: When the pipe loses pressure integrity, clutch packs receive insufficient hydraulic force, causing “WG100 transmission slipping” during 1-2 or 2-3 shifts.
- Overheating transmission fluid: Restricted oil flow through a blocked pipe leads to inadequate cooling, triggering “ZF transmission overheating” warnings on diagnostic tools.
- Whining or groaning noise from the transmission: Air entrainment from a loose pipe connection creates cavitation, producing audible “transmission pump noise” under load.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 4651.121.007 |
| Material | Seamless steel tube with zinc-nickel plating |
| Overall Length | 285 mm (estimated) |
| Tube Outer Diameter | 12 mm |
| Wall Thickness | 1.5 mm |
| Weight | 0.18 kg |
| OEM Reference | ZF 4651.121.007 |
| Sealing Interface | Compatible with 0634303928: O-RING |
| Mounting Torque | 8 Nm (for retaining bracket) |
Compatibility
This oil pipe is designed for the ZF WG100 series, but it also fits several other ZF power take-off and transmission models that share the same hydraulic architecture. Verified compatible units include the WG180, WG200, and WG210 series when equipped with the standard valve body. It is not compatible with the WG120 or WG150 without adapter fittings. Always verify the pipe routing against your existing 4651301008: TRANSMISSION HOUSING to confirm fitment. For heavy-duty applications, inspect the mating O-ring groove for debris before installation.
Related Components
| Part Number | Name | Function |
|---|---|---|
| 4651101004 | TRANSMISSION HOUSING | Main structural casing for gear train |
| 4651301014 | HOUSING | Secondary housing for valve body assembly |
| 0634303928 | O-RING | Seals oil pipe connection to housing |
| 4651301008 | TRANSMISSION HOUSING | Alternate housing variant for WG100 |
| 4651203002 | SCREEN SHEET | Filters debris from oil pump intake |
| 4651303005 | SCREEN SHEET | Secondary filtration mesh for valve body |
| 0636101032 | CAP SCREW | Fastens oil pipe retaining bracket |
| 0630361028 | SEALING CAP | Blocks unused oil ports during service |
| 0636304032 | SCREW PLUG | Seals pressure test ports on housing |
| 0634303312 | O-RING | Seals screw plug and cap screw interfaces |
