Overview

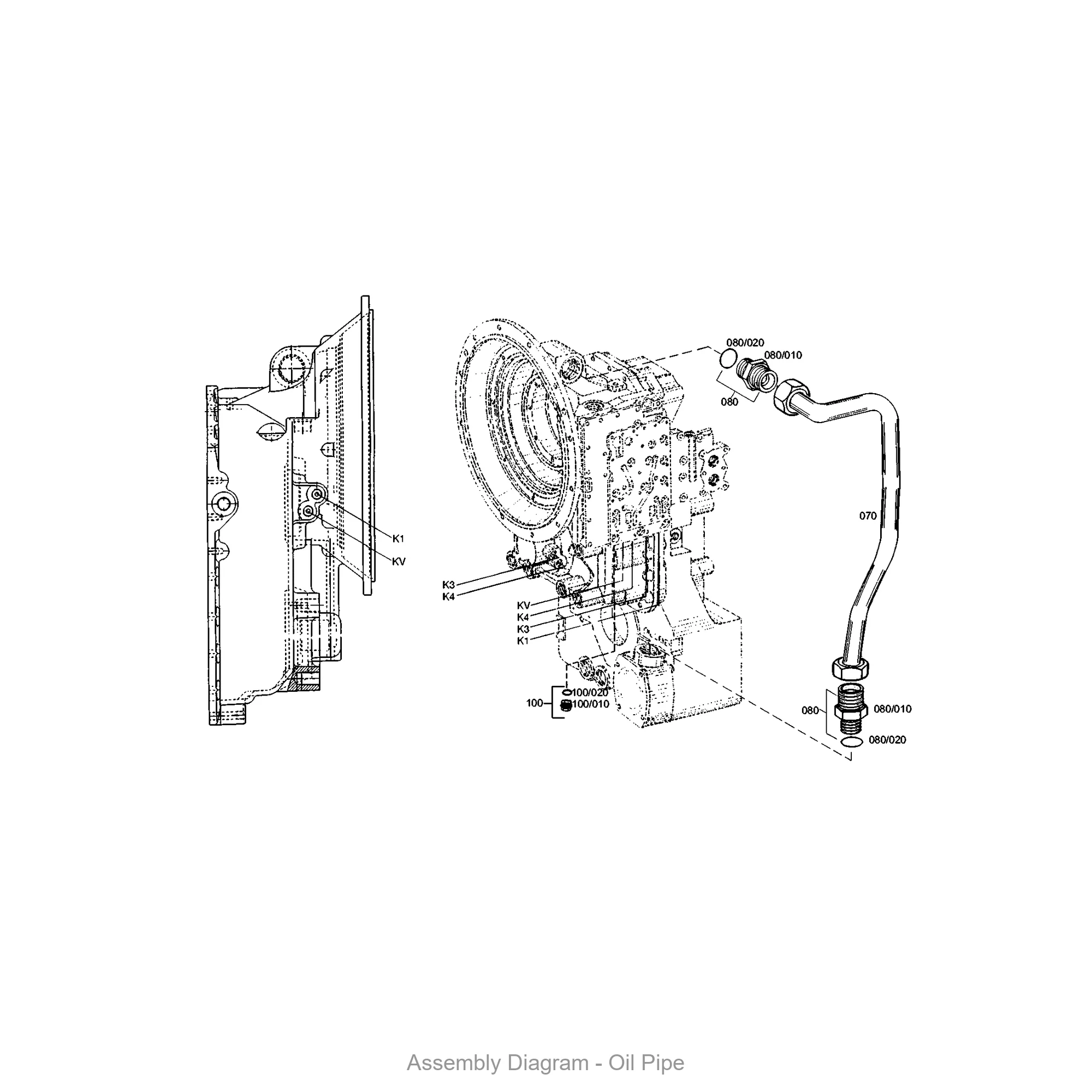

The ZF 4651.221.011 TUBE is a precision-engineered fluid conduit designed specifically for the WG 100 series transmission family. This OEM genuine part serves as a critical pressure line within the hydraulic control circuit, directing transmission fluid between the valve body and the clutch pack assembly. Constructed from high-strength steel with corrosion-resistant coating, the 4651.221.011 tube ensures consistent oil flow under extreme thermal and pressure conditions. When installed alongside the TRANSMISSION HOUSING (4651101007), this tube maintains the structural integrity of the lubrication system, preventing pressure drops that could compromise shift quality.
Symptoms of Failure
- External oil seepage at tube connections – A worn or cracked 4651.221.011 tube often causes visible fluid drips near the transmission housing, particularly around the O-ring sealing points.
- Delayed gear engagement under load – When this tube develops internal restrictions or micro-fractures, hydraulic pressure drops, resulting in sluggish shifts from neutral to drive or reverse.
- Transmission overheating – A compromised tube reduces fluid circulation, causing the WG100 to run hotter than normal, often triggering warning lights on heavy-duty equipment.
- Erratic shift patterns – Inconsistent fluid delivery through a damaged tube leads to harsh or slipping shifts, especially during uphill hauling or stop-and-go operations.
Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number (SKU) | 4651.221.011 |
| OEM Reference | ZF 4651.221.011 |
| Material | Seamless cold-drawn steel, zinc-nickel plated |
| Overall Length | 215 mm ± 0.5 mm |
| Outer Diameter | 12.7 mm (1/2 inch) |
| Wall Thickness | 1.5 mm |
| Weight | 0.18 kg (0.40 lbs) |
| Sealing Interface | Compatible with O-RING (0634303928) |
| Operating Pressure | Up to 18 bar (261 psi) |
| Temperature Range | -40°C to +150°C |
Compatibility
This tube is engineered for the ZF WG100 series, but its hydraulic routing design also makes it a direct fit for the WG180 and WG200 transmissions when used with the appropriate HOUSING (4651301029). It is commonly found in off-highway vehicles, wheel loaders, and agricultural tractors equipped with ZF powershift transmissions. For WG150 and WG250 models, verify the mounting flange pattern against the HOUSING (4651301024) before installation. Always pair this tube with fresh O-rings to ensure leak-free operation.
Related Components
| Part Number | Name | Function |
|---|---|---|
| 4651101007 | TRANSMISSION HOUSING | Main structural casing for gear and clutch assembly |
| 4651301029 | HOUSING | Secondary housing for valve body and tube routing |
| 0634303928 | O-RING | Seals tube-to-housing connection against fluid leaks |
| 4651301024 | HOUSING | Alternate housing variant for WG180/WG200 applications |
| 4651203002 | SCREEN SHEET | Fine mesh filter protecting tube inlet from debris |
| 4651303005 | SCREEN SHEET | Coarse pre-filter for high-flow hydraulic circuits |
| 0636101032 | CAP SCREW | Fastener for securing tube brackets to housing |
| 0630361028 | SEALING CAP | Protective cap for unused tube ports during transport |
| 4475280060 | SCREW PLUG | Threaded plug for pressure test ports on the tube |
| 0634303312 | O-RING | Alternate sealing ring for high-temperature applications |
