ZF 4656.130.023 ENGINE CONNECTION
ZF Part Number: 4656.130.023 (also written as 4656130023 / 4656.130.023 / 4656 130 023)
Compatible ZF Transmission Models
This engine connection is used in the following ZF transmission models:
- ZF 3 WG 130
- ZF 4 WG 115
- ZF 4 WG 130
- ZF 6 WG 115
Part Location in Assembly
| Section | Position No. | Qty |
|---|---|---|
| Wg 115 | 270 | 1 |
| Wg 130 | 270 | 1 |
| Wg 160 | 270 | 1 |
Related Parts in Same Assembly
- 0501.209.719 — INDUCTIVE SENSOR (Qty: 3)
- 0501.211.070 — BRAKE (Qty: 1)
- 0501.211.384 — VALVE (Qty: 1)
- 0501.214.894 — GEAR PUMP (Qty: 1)
- 0501.216.209 — RANGE SELECTOR (Qty: 1)
- 0501.333.764 — PRESSURE FILTER (Qty: 1)
- 0730.365.279 — TYPE PLATE (Qty: 1)
- 4168.030.270 — CONVERTER (Qty: 1)
Frequently Asked Questions
What is ZF part number 4656.130.023?
ZF 4656.130.023 is an OEM engine connection produced by ZF Friedrichshafen AG, one of the world’s largest automotive suppliers. It is designed for use in ZF powershift transmissions, specifically in models such as 3 WG 130, 4 WG 115, 4 WG 130, 6 WG 115. This is a genuine ZF component, not an aftermarket reproduction.
Which ZF transmissions use 4656.130.023?
This engine connection is found in 4 ZF transmission variants, including: 3 WG 130, 4 WG 115, 4 WG 130, 6 WG 115. These transmissions are commonly used in wheel loaders, graders, and other heavy construction equipment. Contact us to verify fitment for your specific machine.
Where is ZF 4656.130.023 installed in the transmission?
This engine connection is located in the engine connection, wg 115 area of the transmission. It appears in 30 different assembly configurations. In the service manual, look for position number 270 in the Wg 115 section.
How do I look up ZF part 4656.130.023?
This part can be found under several formats: 4656130023 / 4656.130.023 / 4656 130 023. All formats refer to the same genuine ZF component. When ordering, any of these numbers will work. The official ZF catalog uses the dotted format (4656.130.023).
Where can I buy ZF 4656.130.023?
You can purchase genuine ZF 4656.130.023 from PartsZF.com (operated by Tianjin Xiaohang Construction Machinery Co., Ltd). We maintain direct supply channels with ZF and offer worldwide shipping. Contact our parts specialists for current pricing and lead times.
Need this part? Contact our ZF parts specialist for pricing and availability. We ship worldwide with OEM quality guarantee.

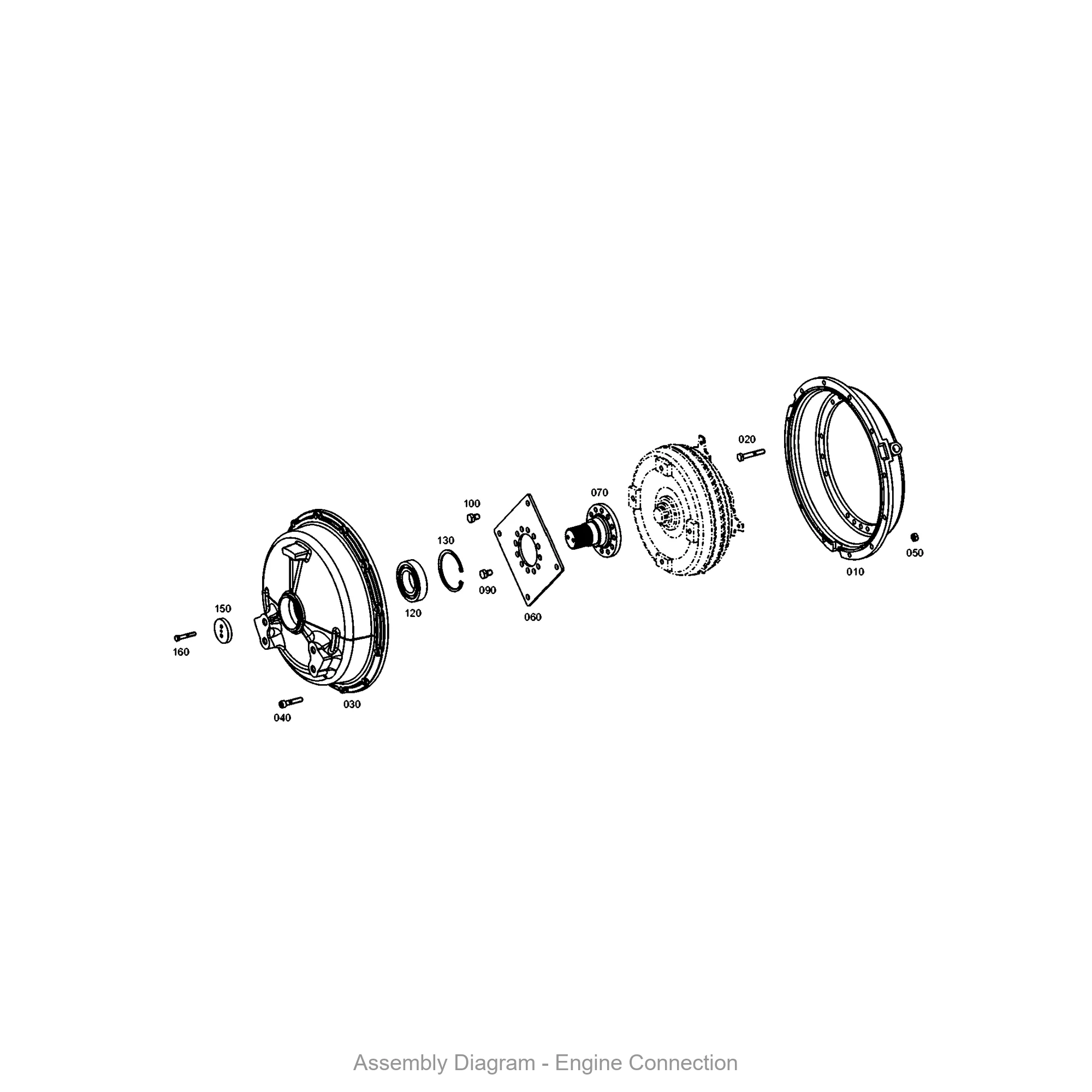

Exploded View / Assembly Diagram
The diagram below shows where ZF 4656.130.023 is located within the transmission assembly.
