ZF 4656.306.025 GASKET
ZF Part Number: 4656.306.025 (also written as 4656306025 / 4656.306.025 / 4656 306 025)
Compatible ZF Transmission Models
This gasket is used in the following ZF transmission models:
- ZF 4 WG 260
Part Location in Assembly
| Section | Position No. | Qty |
|---|---|---|
| Shift System | 150 | 1 |
| Shift System | 210 | 1 |
Related Parts in Same Assembly
- 0501.209.719 — INDUCTIVE SENSOR (Qty: 1)
- 0501.213.026 — GEAR PUMP (Qty: 1)
- 0501.214.082 — SUCTION FILTER (Qty: 1)
- 0730.361.182 — SEALING CAP (Qty: 1)
- 4168.037.047 — CONVERTER (Qty: 1)
- 4475.280.138 — UNION SCREW (Qty: 3)
- 4646.254.002 — SHAFT (Qty: 1)
- 4646.301.242 — HOUSING (Qty: 1)
Frequently Asked Questions
What is ZF part number 4656.306.025?
ZF 4656.306.025 is an OEM gasket produced by ZF Friedrichshafen AG, one of the world’s largest automotive suppliers. It is designed for use in ZF powershift transmissions, specifically in models such as 4 WG 260. This is a genuine ZF component, not an aftermarket reproduction.
Which ZF transmissions use 4656.306.025?
This gasket is found in 1 ZF transmission variants, including: 4 WG 260. These transmissions are commonly used in wheel loaders, graders, and other heavy construction equipment. Contact us to verify fitment for your specific machine.
Where is ZF 4656.306.025 installed in the transmission?
This gasket is located in the shift system area of the transmission. It appears in 1 different assembly configurations. In the service manual, look for position number 150 in the Shift System section.
How do I look up ZF part 4656.306.025?
This part can be found under several formats: 4656306025 / 4656.306.025 / 4656 306 025. All formats refer to the same genuine ZF component. When ordering, any of these numbers will work. The official ZF catalog uses the dotted format (4656.306.025).
When should I replace ZF 4656.306.025?
Replace this seal during every transmission overhaul or if you notice oil leakage at the seal location. Seals are wear items and should not be reused after removal.
Can I reuse ZF 4656.306.025 after disassembly?
No. ZF recommends always installing new seals during reassembly. Reusing seals may result in leaks and premature failure.
Where can I buy ZF 4656.306.025?
You can purchase genuine ZF 4656.306.025 from PartsZF.com (operated by Tianjin Xiaohang Construction Machinery Co., Ltd). We maintain direct supply channels with ZF and offer worldwide shipping. Contact our parts specialists for current pricing and lead times.
Need this part? Contact our ZF parts specialist for pricing and availability. We ship worldwide with OEM quality guarantee.

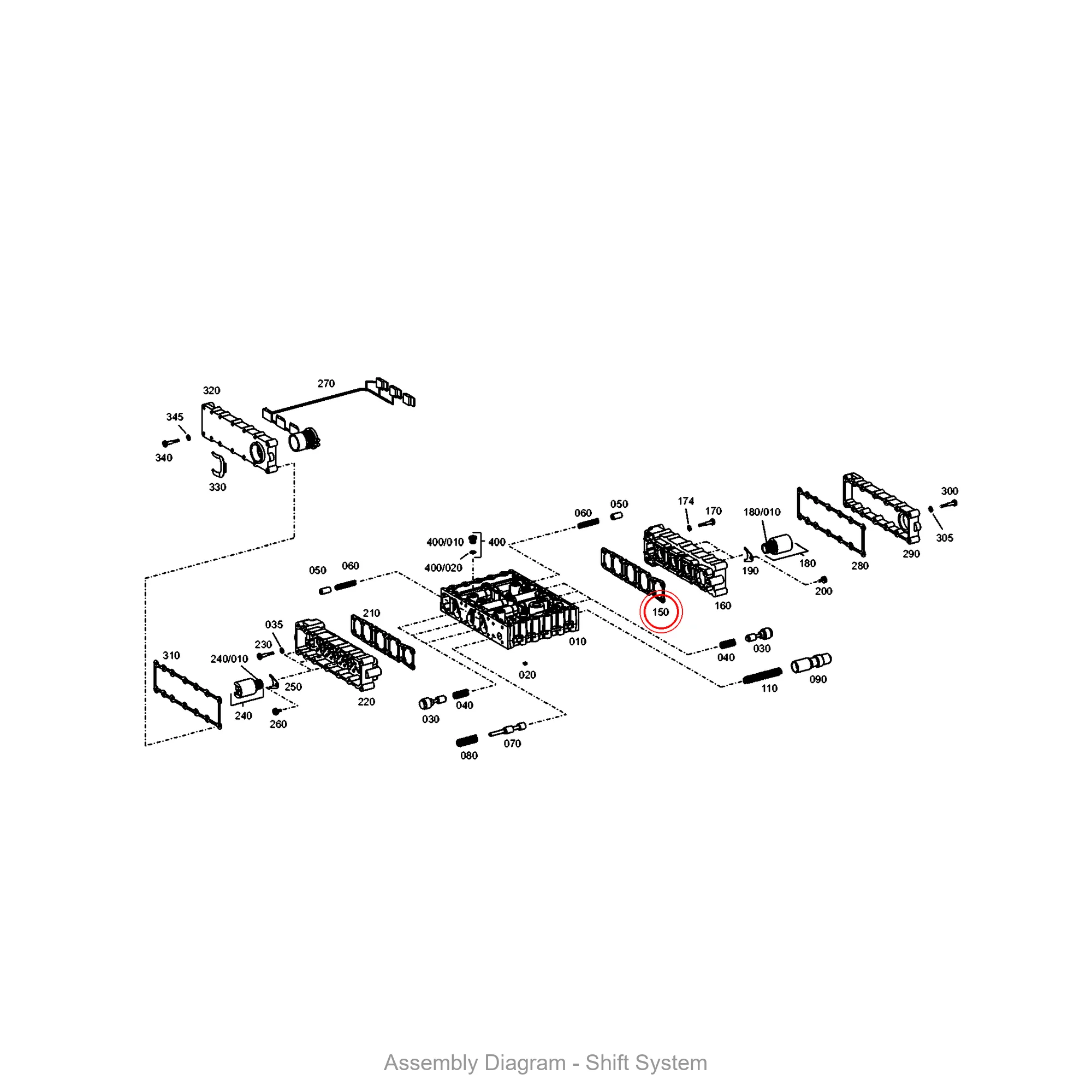

Exploded View / Assembly Diagram
The diagram below shows where ZF 4656.306.025 is located within the transmission assembly.
