ZF 4656.306.078 LOCKING PLATE
ZF Part Number: 4656.306.078 (also written as 4656306078 / 4656.306.078 / 4656 306 078)
OEM Cross Reference / Interchange Numbers
ZF 4656.306.078 (LOCKING PLATE) is the original manufacturer part. The following OEM and third-party part numbers are direct cross-references:
| Brand / OEM | Part Number | Type |
|---|---|---|
| 徐工铲运 | 860521072 | OEM Cross Ref |
| 柳工 | SP111984 | OEM Cross Ref |
This ZF part (4656.306.078) directly replaces the following OEM numbers: 徐工铲运: 860521072; 柳工: SP111984. All listed cross-reference numbers are confirmed compatible with ZF 4656.306.078.
Compatible ZF Transmission Models
This locking plate is used in the following ZF transmission models:
- ZF 4 WG 115
- ZF 6 WG 115
Part Location in Assembly
| Section | Position No. | Qty |
|---|---|---|
| Pressure Regulator | 050 | 1 |
| Pressure Regulator | 070 | 1 |
Related Parts in Same Assembly
- 0501.209.719 — INDUCTIVE SENSOR (Qty: 2)
- 0501.211.384 — VALVE (Qty: 1)
- 0501.214.894 — GEAR PUMP (Qty: 1)
- 0501.333.764 — PRESSURE FILTER (Qty: 1)
- 4168.030.267 — CONVERTER (Qty: 1)
- 4651.231.011 — OIL DIPSTICK (Qty: 1)
- 4656.201.075 — HOUS.FRONT SECT (Qty: 1)
- 4656.303.022 — OUTPUT SHAFT (Qty: 1)
Frequently Asked Questions
What is ZF part number 4656.306.078?
ZF 4656.306.078 is an OEM locking plate produced by ZF Friedrichshafen AG, one of the world’s largest automotive suppliers. It is designed for use in ZF powershift transmissions, specifically in models such as 4 WG 115, 6 WG 115. This is a genuine ZF component, not an aftermarket reproduction.
Which ZF transmissions use 4656.306.078?
This locking plate is found in 2 ZF transmission variants, including: 4 WG 115, 6 WG 115. These transmissions are commonly used in wheel loaders, graders, and other heavy construction equipment. Contact us to verify fitment for your specific machine.
Where is ZF 4656.306.078 installed in the transmission?
This locking plate is located in the pressure regulator area of the transmission. It appears in 30 different assembly configurations. In the service manual, look for position number 050 in the Pressure Regulator section.
How do I look up ZF part 4656.306.078?
This part can be found under several formats: 4656306078 / 4656.306.078 / 4656 306 078. All formats refer to the same genuine ZF component. When ordering, any of these numbers will work. The official ZF catalog uses the dotted format (4656.306.078).
Where can I buy ZF 4656.306.078?
You can purchase genuine ZF 4656.306.078 from PartsZF.com (operated by Tianjin Xiaohang Construction Machinery Co., Ltd). We maintain direct supply channels with ZF and offer worldwide shipping. Contact our parts specialists for current pricing and lead times.
Need this part? Contact our ZF parts specialist for pricing and availability. We ship worldwide with OEM quality guarantee.

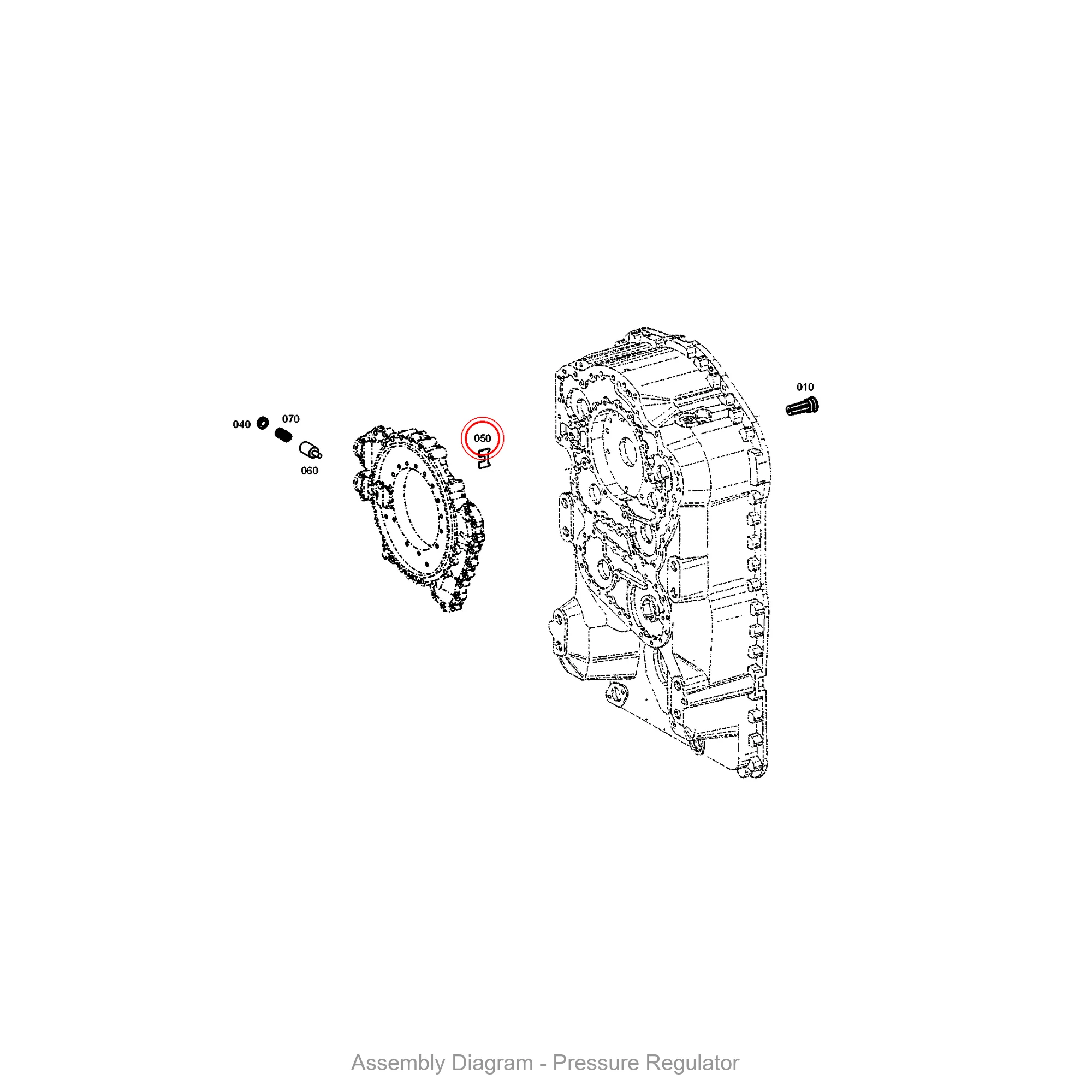

Exploded View / Assembly Diagram
The diagram below shows where ZF 4656.306.078 is located within the transmission assembly.
