Overview
The ZF 4657.106.014 SHIFT SYSTEM is a precision-engineered mechanical assembly designed for the WG191 and WG211 series transmissions. This OEM genuine part governs the engagement and disengagement of gear sets by translating driver input into precise hydraulic commands within the valve body. Positioned directly atop the transmission control module, the shift system ensures smooth, synchronized gear changes under heavy load conditions. The SKU 4657.106.014 is manufactured to ZF’s original tolerances, guaranteeing direct bolt-on compatibility without modification. When paired with a properly functioning 4657120005: PRESSURE REGULATOR, this shift system maintains consistent clutch pack pressure across all operating ranges.
Symptoms of Failure
- Delayed or harsh gear engagement – A worn shift system causes noticeable hesitation when shifting from Neutral to Drive or Reverse, often accompanied by a jarring clunk as the clutches engage late.
- Intermittent gear slipping under load – As the shift mechanism loses its indexing precision, the transmission may momentarily lose torque transfer during uphill climbs or when towing heavy loads.
- Erratic shift pattern or missed gears – The transmission may skip gears entirely or hunt between ratios at highway speeds, indicating the shift system can no longer accurately position the control valves.
- Fluid contamination from metallic debris – Internal wear of the shift system’s sliding components generates fine metal particles that accumulate in the transmission pan, visible during fluid changes as a silver or bronze sludge.
Technical Specifications
| Parameter | Value |
|---|---|
| OEM Part Number | 4657.106.014 |
| Material | Hardened steel alloy with phosphate coating |
| Overall Length | 185 mm |
| Weight | 1.2 kg (2.65 lbs) |
| Operating Temperature Range | -40°C to +120°C |
| OEM Reference | ZF 4657.106.014 (Genuine) |
| Torque Specification | 22 Nm (16.2 lb-ft) for mounting bolts |
Compatibility
This shift system is primarily designed for the ZF WG191 and WG211 series transmissions, which are commonly found in medium-duty commercial vehicles, construction equipment, and agricultural machinery. Based on the shift system’s architecture, it is also compatible with the following ZF models: WG180, WG200, WG210, and WG220 series. The part directly interfaces with the valve body assembly and requires the 0501211384: VALVE for proper hydraulic flow control. Additionally, the 0630532183: INDENTED RING must be inspected during installation to ensure correct detent positioning. For optimal piston response, the 4656306145: PISTON should be replaced concurrently with this shift system to prevent premature wear.
Related Components
| Part Number | Name | Function |
|---|---|---|
| 4657120005 | PRESSURE REGULATOR | Maintains consistent hydraulic pressure to the shift system |
| 0501211384 | VALVE | Directs oil flow to clutch packs based on shift commands |
| 0630532183 | INDENTED RING | Provides positive detent feel and prevents shift lever creep |
| 4656306145 | PISTON | Converts hydraulic pressure into mechanical shift movement |
| 0732042767 | COMPRESSION SPRING | Returns shift components to neutral position |
| 0631612064 | SET SCREW | Secures shift rail alignment |
| 0631610026 | SET SCREW | Locks shift fork position |
| 4657101049 | TRANSMISSION HOUSING | Encloses and supports the entire shift mechanism |
| 4657301130 | HOUS.FRONT SECT | Front section of the transmission housing |
| 4657301131 | HOUSING REAR PART | Rear section of the transmission housing |
Frequently Asked Questions
Q: Can the ZF 4657.106.014 shift system be installed without removing the transmission from the vehicle?
A: Yes, in most applications the shift system is accessible after removing the transmission pan and valve body. However, for WG191 models in tight chassis configurations, partial transmission lowering may be required to access the mounting bolts.
Q: What is the typical service life of this shift system under normal operating conditions?
A: With proper fluid maintenance using ZF-approved transmission oil, the OEM genuine shift system typically lasts 300,000 to 500,000 kilometers. Heavy towing or off-road use may reduce this interval by 30-40%.
Q: Should I replace the indented ring and piston at the same time as the shift system?
A: ZF recommends replacing the 0630532183: INDENTED RING and 4656306145: PISTON simultaneously, as these components experience matched wear patterns. Reusing worn detent rings can cause premature shift system failure within 20,000 kilometers.
📞 Need this part? Contact our ZF specialists:
Email: info@partszf.com |
Phone: +86 158 2286 3467 |
Request a Quote →
ZF 4657.106.014 SHIFT SYSTEM – Shift System RFQ Support
PartsZF helps B2B buyers source ZF 4657.106.014 SHIFT SYSTEM with fast RFQ support, expert part-number lookup, documentation review, and export coordination. This shift system page is built from confirmed catalog, media, and reference data to reduce sourcing uncertainty for construction machinery transmission parts.
Part-Number Summary
Use ZF number 4657.106.014 when sending your RFQ. PartsZF can review dotted, spaced, and compact number formats against the available product and documentation records.
Application Context
- Documentation reference: 4657033001
- Documentation reference: 4657033002
- Documentation reference: 4657033003
- Documentation reference: 4657033005
- Illustration section: WG 191
- Illustration section: WG 211
- Illustration section: SHIFT SYSTEM
Cross Reference Support
If you have an OEM number, old supplier number, or visible marking, include it with your RFQ so PartsZF can compare it with the available records.
Specification Snapshot
| ZF part number | 4657.106.014 |
|---|---|
| Normalized SKU | 4657106014 |
| Part name | SHIFT SYSTEM |
| Product category | shift system |
| Cross-reference support | Available for RFQ review |
Image and Documentation Notes

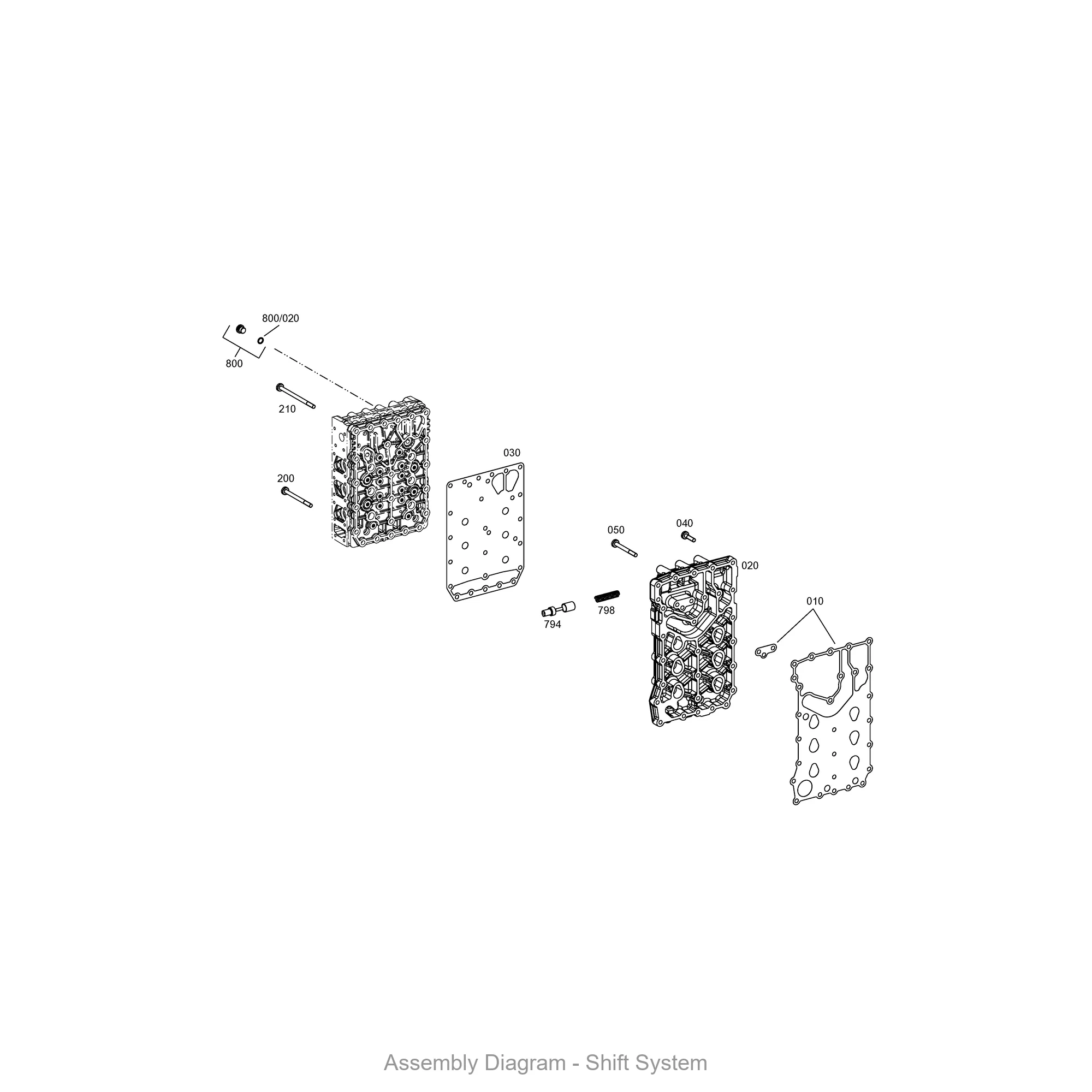

Current product media status: diagram. Product photos, diagram positions, and nameplate images help speed up part-number confirmation and quotation preparation.
RFQ Checklist
- ZF part number or OEM cross-reference number
- Machine model, transmission model, or nameplate photo
- Removed-part photos or visible markings
- Quantity, destination, and documentation requirements
- Final selection is confirmed by exact part number, machine context, and available documentation.
