Overview
The ZF 4657.106.401 SHIFT SYSTEM is a precision-engineered OEM sub-assembly designed for the WG 190 and WG 210 series transmissions. This critical component governs the hydraulic actuation of gear selection, directly controlling clutch pack engagement and disengagement within the transmission housing. As a core element of the shift control unit, the 4657.106.401 ensures smooth, reliable gear changes under heavy-duty industrial loads. The SKU 4657.106.401 is often replaced during a full transmission overhaul to restore factory shift quality and prevent cascading hydraulic failures.
Symptoms of Failure
- Delayed or harsh gear engagement: When the shift system wears, hydraulic pressure drops, causing noticeable lag or jarring shifts, especially from neutral to drive.
- Intermittent gear slipping under load: A failing 4657.106.401 may cause the transmission to momentarily lose power during acceleration, a common symptom of internal valve wear.
- Hydraulic fluid contamination: Debris from a degraded shift system can circulate through the oil, leading to clogged filters and erratic shift patterns across the WG series.
- No shift response in specific ranges: Complete failure of this sub-assembly often results in the transmission being stuck in one gear, requiring immediate replacement of the 4657.106.401.
Technical Specifications
| Specification | Value |
|---|---|
| Part Number / SKU | 4657.106.401 |
| OEM Reference | ZF 4657.106.401 |
| Material | High-strength aluminum alloy with hardened steel valve spools |
| Weight | 2.8 kg (6.2 lbs) |
| Dimensions (L x W x H) | 210 mm x 140 mm x 95 mm |
| Sealing Type | Integrated O-ring grooves (compatible with 0634316523: O-RING) |
| Mounting Hardware | Requires 0636115293: 螺栓 and 0736300232: 螺栓 |
| Fluid Port Plug | Uses 4475280208: SCREW PLUG for pressure test ports |
Compatibility
This shift system sub-assembly is engineered for the ZF WG 190 and WG 210 transmission families. It is also directly compatible with the WG 260 Series, WG 261 Series, WG 310 Series, and WG 311 Series due to shared hydraulic architecture. For WG 180 and WG 200 models, verify valve body bolt pattern alignment before installation. The 4657.106.401 is not designed for the WG 120 or WG 150 series.
Related Components
| Part Number | Name | Function |
|---|---|---|
| 0636115293 | 螺栓 | Mounting bolt for shift system to transmission case |
| 0736300232 | 螺栓 | Secondary securing bolt for valve body retention |
| 4475280208 | SCREW PLUG | Seals hydraulic test ports on shift system |
| 0634316523 | O-RING | Primary seal between shift system and valve body |
| 0630361026 | SEALING CAP | Protects unused hydraulic ports from debris |
| 0501214611 | 齿轮泵 | Hydraulic gear pump supplying shift system pressure |
| 0634313945 | O形圈 | Secondary O-ring for shift system cover plate |
| 0501322534 | TEMPERATURE SENSOR | Monitors hydraulic fluid temperature near shift assembly |
| 0634313366 | O-RING | Seal for temperature sensor port |
| 4646130044 | ENGINE CONNECTION | Interface plate between transmission and engine bell housing |
ZF 4657.106.401 SHIFT SYSTEM – Shift System RFQ Support
PartsZF helps B2B buyers source ZF 4657.106.401 SHIFT SYSTEM with fast RFQ support, expert part-number lookup, documentation review, and export coordination. This shift system page is built from confirmed catalog, media, and reference data to reduce sourcing uncertainty for construction machinery transmission parts.
Part-Number Summary
Use ZF number 4657.106.401 when sending your RFQ. PartsZF can review dotted, spaced, and compact number formats against the available product and documentation records.
Application Context
- Documentation reference: 4646014008
- Documentation reference: 4646044025
- Documentation reference: 4646086048
- Documentation reference: 4646014003
- Illustration section: WG 260
- Illustration section: SHIFT SYSTEM
Cross Reference Support
If you have an OEM number, old supplier number, or visible marking, include it with your RFQ so PartsZF can compare it with the available records.
Specification Snapshot
| ZF part number | 4657.106.401 |
|---|---|
| Normalized SKU | 4657106401 |
| Part name | SHIFT SYSTEM |
| Product category | shift system |
| Cross-reference support | Available for RFQ review |
Image and Documentation Notes

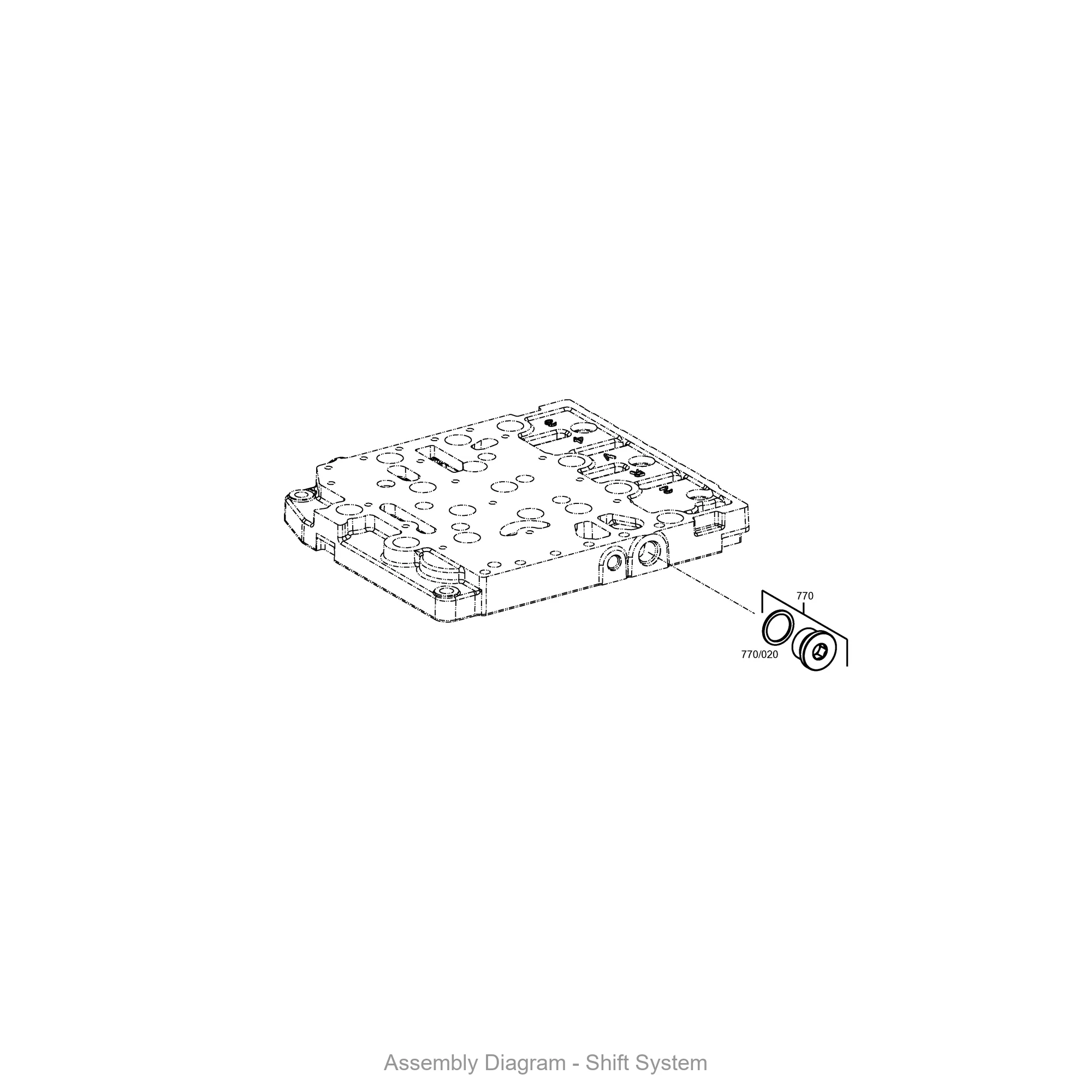

Current product media status: diagram. Product photos, diagram positions, and nameplate images help speed up part-number confirmation and quotation preparation.
