Overview

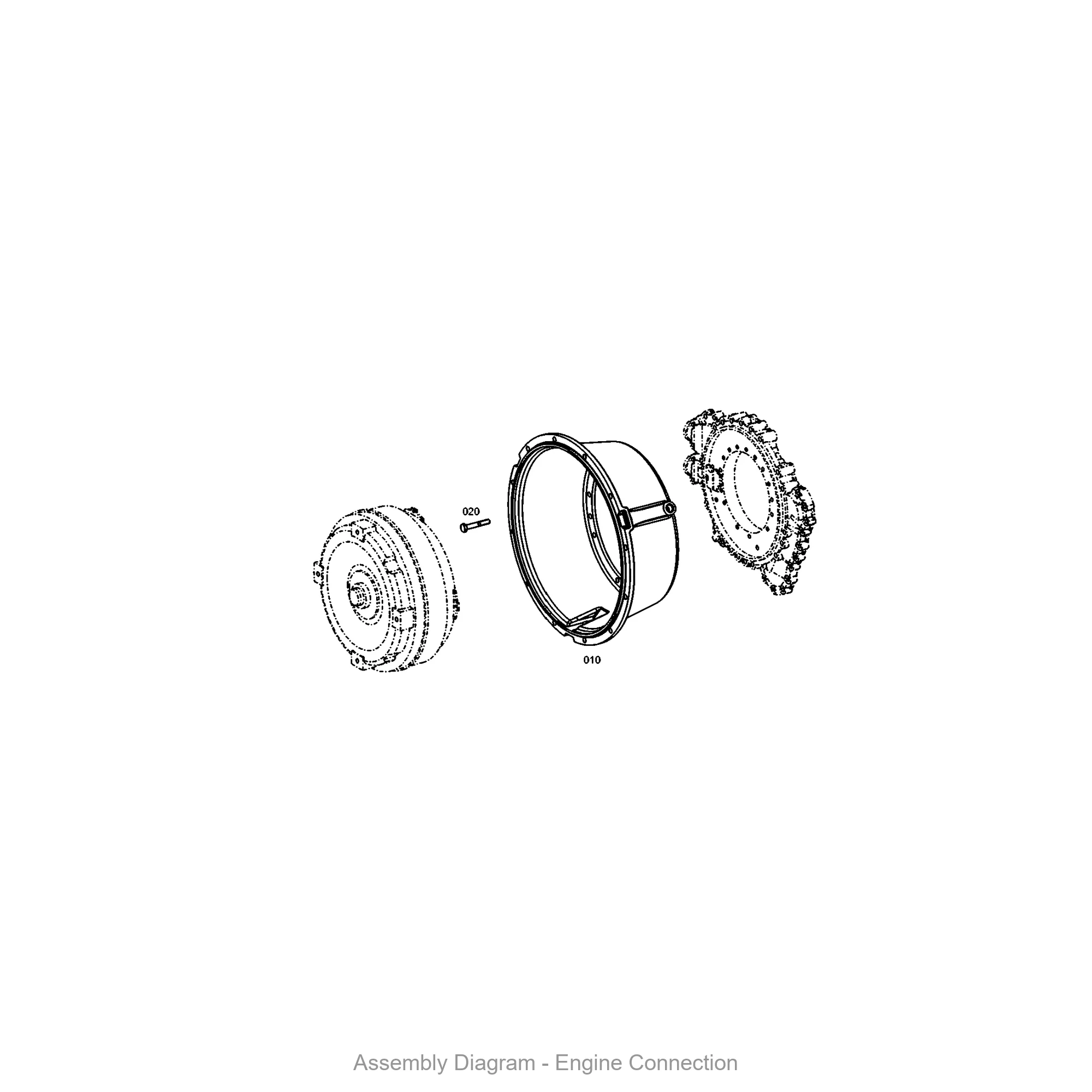

The ZF 4657.130.016 ENGINE CONNECTION is a critical OEM genuine interface component designed for the WG160, WG190, and WG210 series transmissions. This part serves as the primary mechanical link between the transmission assembly and the engine bell housing, ensuring precise alignment and secure torque transfer during operation. As a genuine ZF part, SKU 4657.130.016 guarantees factory tolerances and material integrity, reducing the risk of vibration-induced wear. It sits at the forward end of the transmission, directly interfacing with the TRANSMISSION HOUSING to maintain structural rigidity under heavy loads.
Symptoms of Failure
- Oil seepage at the engine-transmission joint: A worn ENGINE CONNECTION often leads to gradual fluid loss, visible as dark streaks or drips around the mating surface, commonly searched as “ZF WG160 oil leak at bell housing.”
- Abnormal gear engagement noise: When this part degrades, misalignment causes a distinct clunking or grinding sound during shifts, especially under load—a key indicator for “WG190 transmission slipping symptoms.”
- Increased drivetrain vibration: A failing connection allows micro-movement, resulting in noticeable shuddering at highway speeds, often reported as “ZF WG210 vibration when accelerating.”
- Difficulty in transmission removal or installation: Warping or corrosion on the connection face can make service procedures unusually difficult, a symptom mechanics search for as “stuck engine connection ZF transmission.”
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 4657.130.016 |
| Material | High-tensile cast iron with corrosion-resistant coating |
| Weight | 2.4 kg (5.3 lbs) |
| Overall Diameter | 180 mm |
| Bolt Hole Pattern | 6-hole, 120° spacing, M12 threads |
| OEM Reference | ZF 4657.130.016 (Genuine) |
| Operating Temperature Range | -40°C to +120°C |
Compatibility
This ENGINE CONNECTION is engineered for ZF WG160, WG190, and WG210 series transmissions. While the primary fitment covers these three models, the part also applies to the WG180 and WG200 variants due to shared bell housing dimensions. It directly mounts to the HOUS.FRONT SECT and is secured by the HOUSING REAR PART assembly. For complete rear sealing, it integrates with the HOUSING REAR SECTION. Always verify your transmission serial number before ordering.
Related Components
| Part Number | Name | Function |
|---|---|---|
| 4656101056 | TRANSMISSION HOUSING | Main structural casing for gear assembly |
| 4656201075 | HOUS.FRONT SECT | Forward section housing input shaft |
| 4656201077 | HOUSING REAR PART | Rear cover for output shaft support |
| 4656298049 | HOUSING REAR SECTION | Extended rear housing for PTO mounting |
| 0631306816 | CYLINDRICAL PIN | Alignment dowel for housing mating |
| 4656301148 | FIXING PLATE | Secures connection to engine block |
| 0636100817 | CAP SCREW | M12 bolt for housing fastening |
| 4656301016 | SCREEN SHEET | Fine mesh filter for oil return |
| 4656301017 | SCREEN SHEET | Coarse mesh pre-filter for sump |
| 0636100803 | CAP SCREW | M10 bolt for accessory mounting |
Frequently Asked Questions
Q: Can the 4657.130.016 be used on a ZF WG200 transmission?
A: Yes, this ENGINE CONNECTION is compatible with WG200 models as they share the same bell housing bolt pattern and pilot bore dimensions as the WG190 and WG210 series.
Q: What torque specification should I use for the bolts securing this part?
A: ZF recommends tightening the six M12 bolts to 80 Nm (59 ft-lbs) in a star pattern, using thread locker. Always consult your service manual for final values.
Q: Is this part interchangeable with aftermarket alternatives?
A: We strongly advise using only OEM genuine ZF 4657.130.016 parts. Aftermarket copies often have inferior material hardness, leading to premature wear and misalignment with the TRANSMISSION HOUSING.
