ZF 4657.130.058 ENGINE CONNECTION for WG190/WG210 | OEM Genuine Part

Overview

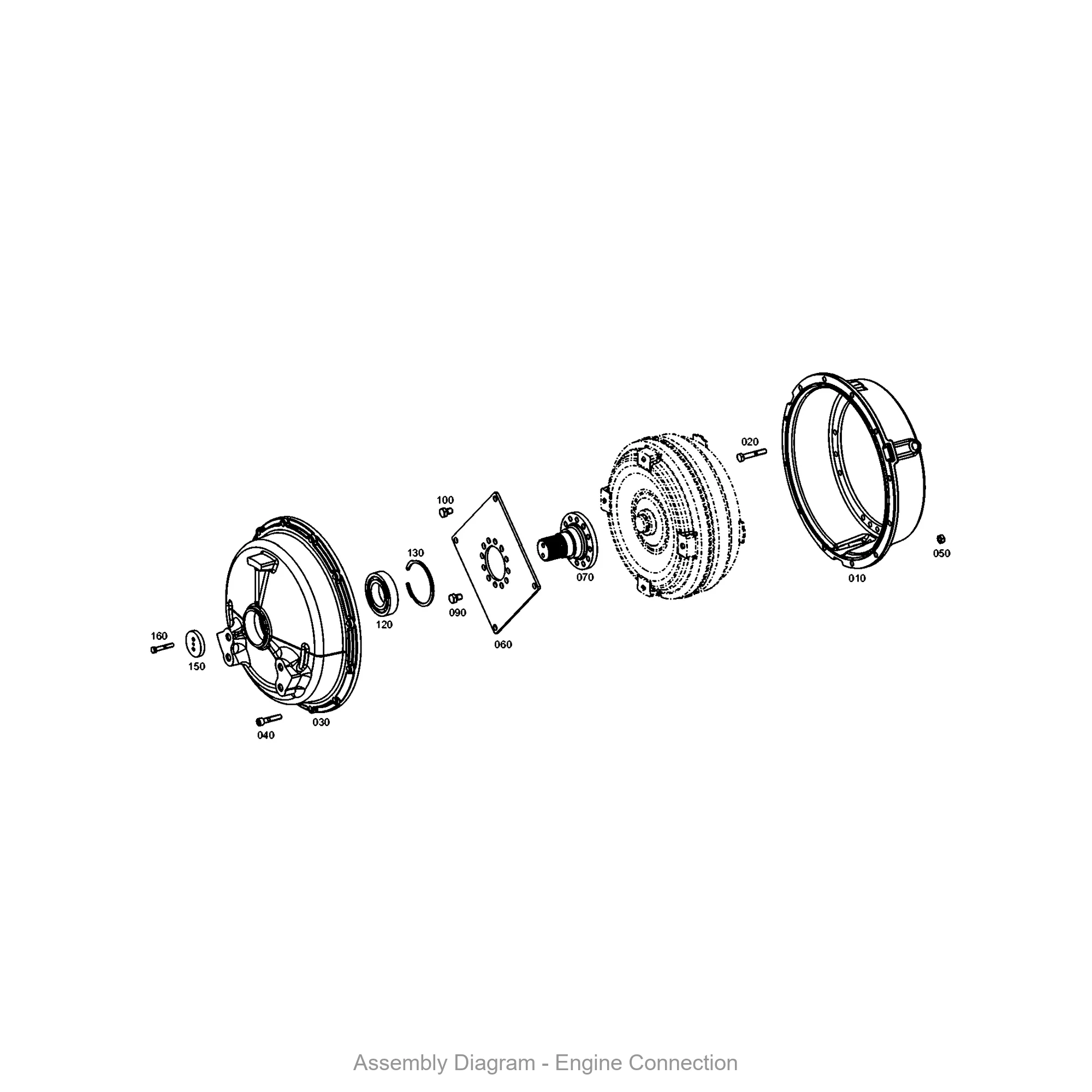

The ZF 4657.130.058 ENGINE CONNECTION is a critical OEM genuine interface component designed specifically for the WG190, WG210, and WG230 series transmissions. This precision-engineered part serves as the primary mechanical link between the transmission housing and the engine bellhousing, ensuring proper alignment and torque transfer during operation. The SKU 4657.130.058 is manufactured to ZF’s exacting tolerances, providing a secure mounting point that absorbs vibrational loads while maintaining driveline integrity. When installed correctly, this engine connection component works in concert with the 4657201132: HOUS.FRONT SECT to create a rigid assembly that withstands heavy-duty industrial applications.

Symptoms of Failure

When the ZF 4657.130.058 ENGINE CONNECTION begins to wear, operators typically notice three to four distinct failure indicators. First, oil seepage at the engine-to-transmission mating surface occurs as the connection loses its sealing integrity, often mistaken for a rear main seal leak. Second, intermittent gear engagement hesitation develops because misalignment alters the input shaft’s position relative to the torque converter. Third, abnormal metallic knocking sounds during acceleration indicate excessive clearance between the connection and the 0631306816: CYLINDRICAL PIN that locates the assembly. Fourth, visible fretting corrosion or galling on the mounting flange surfaces confirms material fatigue from repeated thermal cycling.

Technical Specifications

Compatibility

This engine connection component is engineered for the ZF WG series powershift transmissions. Primary compatibility includes the WG180, WG190, WG200, WG210, and WG230 models. It also fits select WG150 and WG160 variants when used with the appropriate 0636100801: CAP SCREW kit. For proper installation, the 4656301148: FIXING PLATE must be torqued to factory specifications to prevent axial movement during high-load operations.

Related Components

Frequently Asked Questions

Q: Can the ZF 4657.130.058 be reused after removal?
A: ZF recommends replacing this engine connection component whenever the transmission is separated from the engine. The phosphate coating degrades with each thermal cycle, and microscopic deformation can occur at the bolt hole lands. Always install a new 4656301023: GASKET during reassembly to prevent oil leaks.

Q: What torque specification applies to the mounting bolts?
A: For the 0636100801: CAP SCREW fasteners, use 95 Nm ± 5 Nm with thread locker applied. The 4656301148: FIXING PLATE must be bent over the screw heads after torquing to prevent loosening under vibration.

Q: How does this part differ from the WG180 engine connection?
A: The 4657.130.058 features a reinforced flange thickness of 18 mm versus 14 mm on WG180 variants, accommodating the higher torque capacity of WG210/WG230 transmissions. The bolt hole pattern remains identical, but the 0631306816: CYLINDRICAL PIN diameter is increased to 12 mm for improved shear strength.
