ZF 4657.201.175 for WG190/WG210 | OEM Genuine Part

Overview

This OEM genuine ZF part, the 4657.201.175, is a critical internal component engineered specifically for the WG190, WG210, and WG230 series transmissions. It functions as a precision-machined spacer and alignment element within the planetary gear set assembly, ensuring correct axial clearance and load distribution between rotating shafts and clutch packs. The SKU 4657.201.175 is manufactured to ZF’s exacting tolerances, guaranteeing a direct fit and restoring factory-specified gear mesh geometry during a rebuild or overhaul. Without this part, the transmission cannot maintain proper hydraulic pressure sequencing or torque transfer efficiency.

Symptoms of Failure

• Erratic gear engagement and slipping under load: When the 4657.201.175 wears beyond its service limit, axial play increases, causing clutch packs to slip during acceleration. This often triggers a “transmission slipping in 3rd gear” fault code.
• Metallic grinding noise from the bell housing area: A worn spacer allows planetary gears to contact the housing, producing a distinct low-frequency grinding sound that worsens in reverse. This is a classic “ZF WG190 grinding noise” symptom.
• Low hydraulic pressure warnings and delayed shifts: Excessive clearance from a degraded 4657.201.175 disrupts oil flow to the valve body, leading to “delayed forward engagement” and intermittent “transmission overheating” alerts.
• Visible metal debris in the transmission pan: As the part deteriorates, fine metallic particles contaminate the fluid, often mistaken for bearing failure. This debris accelerates wear on adjacent seals and bushings.

Technical Specifications

Compatibility

This genuine ZF part is designed for the WG180, WG190, WG200, WG210, and WG230 series transmissions. It is also compatible with the WG150 and WG160 series in certain heavy-duty off-highway applications. Always verify the transmission serial number before ordering, as the 4657.201.175 is used in both 6-speed and 8-speed variants of these models.

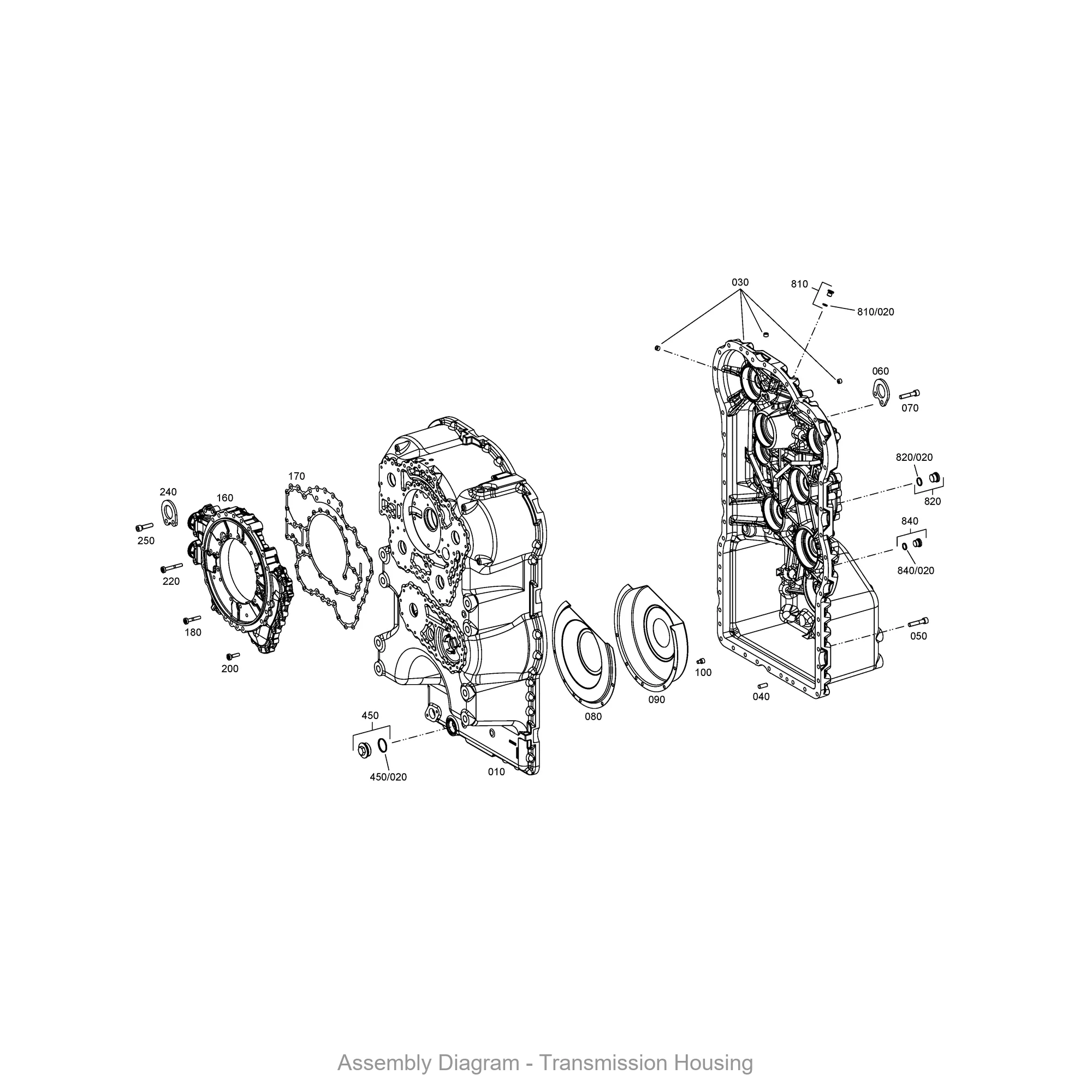

During installation, this part must be paired with the 4657201161: HOUS.FRONT SECT to ensure correct alignment of the input shaft. Secure the assembly using the 0636115293: 螺栓 bolts, torqued to factory specifications. A new 0634313603: O-RING must be replaced simultaneously to prevent fluid bypass, and the 0631306816: CYLINDRICAL PIN ensures precise dowel alignment during reassembly.

Related Components

Frequently Asked Questions

Q: Can I reuse the old 4657.201.175 spacer if it looks clean?
A: No. This part undergoes compressive stress cycling and can develop micro-cracks invisible to the naked eye. Always replace it with a new OEM genuine unit during any major transmission overhaul to avoid premature failure.

Q: Will this part fit a ZF WG230 with a serial number starting in 2019?
A: Yes, the 4657.201.175 is backward-compatible with all WG230 series transmissions produced after 2015. However, verify the thickness of your original spacer—some early WG230 units used a 13.0 mm variant.

Q: What torque specification should I use for the 0636115293 bolts when installing this part?
A: Use 45 Nm (33 ft-lbs) with a thread-locking compound. Over-torquing can distort the 4657.201.175 and cause gear binding.
