Overview

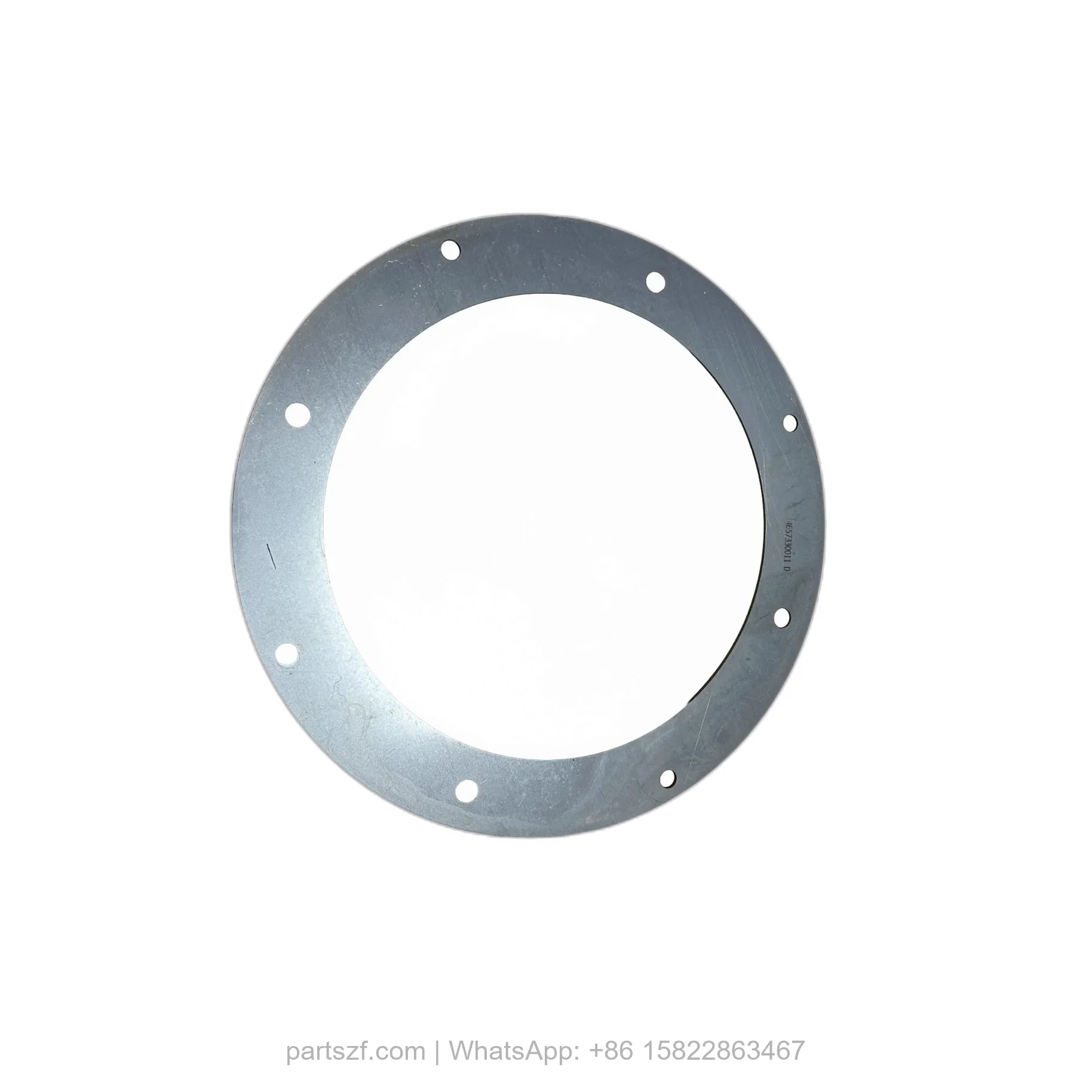

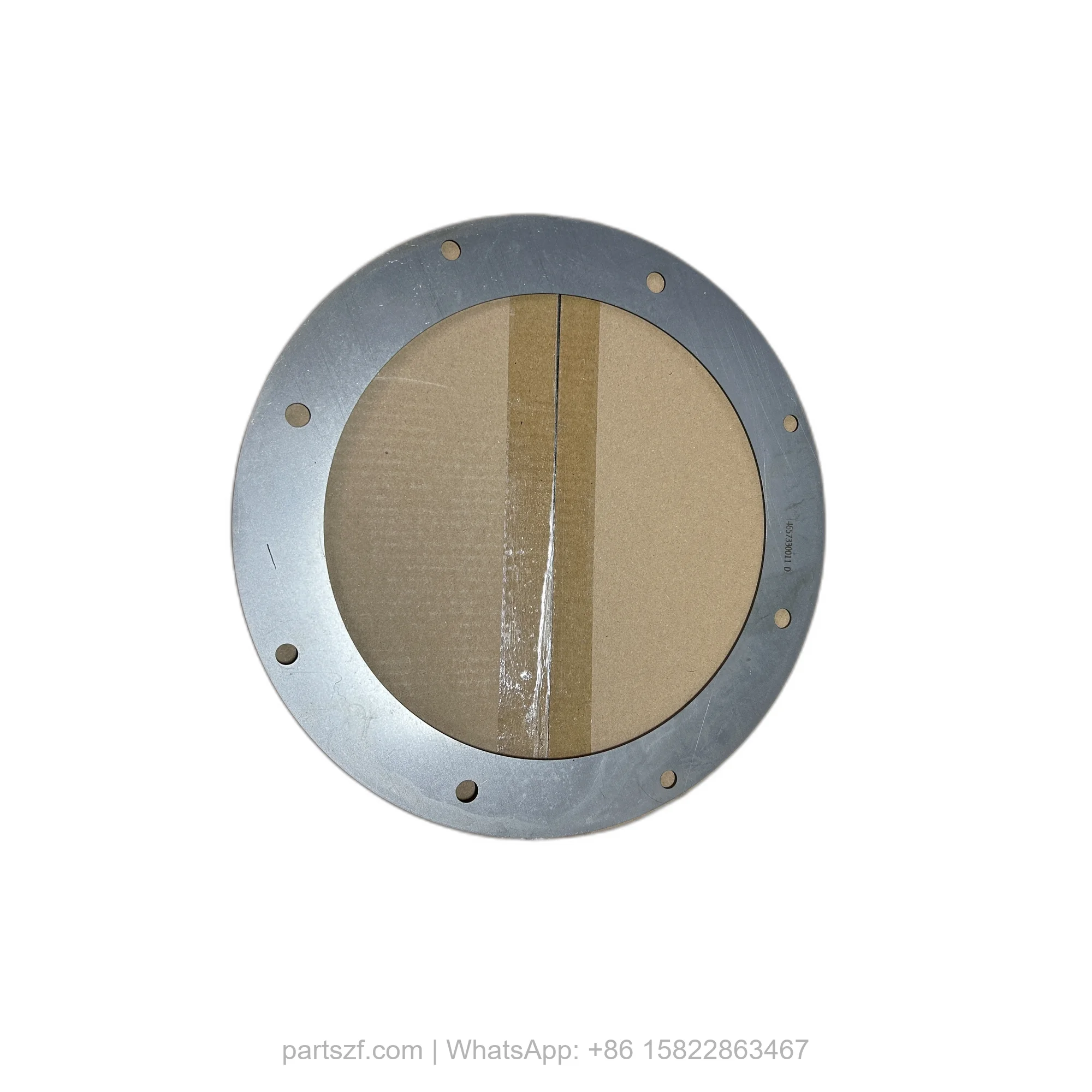

The ZF 4657.330.011 DIAPHRAGM is a critical pneumatic actuation component engineered for the WG160, WG190, WG191, WG210, and WG211 series transmissions. This OEM genuine part functions as a flexible sealing membrane within the clutch or range-change actuator assembly, converting air pressure into mechanical force to engage gear sets. The SKU 4657.330.011 sits directly between the TRANSMISSION HOUSING and the HOUS.FRONT SECT, ensuring a pressurized seal that prevents cross-contamination between the pneumatic system and transmission oil. Without this diaphragm, the transmission cannot reliably shift under load, making it a wear-critical item for fleet maintenance schedules.
Symptoms of Failure
- Gradual air pressure loss and slow gear engagement: When the diaphragm cracks or loses elasticity, the actuator cannot hold pressure, causing delayed shifts—especially in cold weather or under heavy torque.
- Oil contamination in air lines: A ruptured 4657.330.011 allows transmission oil to migrate into the pneumatic system, visible as oil mist from vent ports or wet air filter elements.
- Intermittent gear slipping or range-change failure: Worn material causes the actuator to partially stroke, resulting in incomplete clutch pack engagement and momentary loss of drive power during upshifts.
- Audible air hissing from the actuator housing: A torn diaphragm produces a distinct leak sound near the HOUSING REAR PART or HOUSING REAR PART interface, often misdiagnosed as a loose fitting.
Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | 4657.330.011 |
| Material | Nitrile rubber (NBR) with fabric reinforcement |
| Outer Diameter | 165 mm (estimated) |
| Thickness | 3.5 mm (estimated) |
| Weight | 0.12 kg |
| OEM Reference | ZF 4657 330 011 |
| Operating Pressure Range | 6–12 bar |
| Temperature Range | -40°C to +120°C |
Compatibility
This diaphragm is designed for ZF WG series transmissions with pneumatic shift actuators. Verified direct fitment includes WG160, WG190, WG191, WG210, and WG211 models. It also serves as a replacement in certain WG180 and WG200 variants where the actuator housing dimensions match the 165 mm bolt pattern. Always confirm the actuator cover part number—if your unit uses a HOUS.FRONT SECT with a central pilot bore, this diaphragm is the correct seal. The part is not compatible with older ZF Ecomat or AS Tronic series without adapter kits.
Related Components
| Part Number | Name | Function |
|---|---|---|
| 4656101037 | TRANSMISSION HOUSING | Main structural casing that encloses gear sets and supports the actuator assembly. |
| 4656201075 | HOUS.FRONT SECT | Forward section of the housing that mates with the diaphragm and clutch pack. |
| 4656201035 | HOUSING REAR PART | Rear casing segment that seals the output shaft and rear actuator chamber. |
| 4472239178 | HOUSING REAR PART | Alternate rear housing variant for WG211 series with different bolt spacing. |
| 0631306816 | CYLINDRICAL PIN | Alignment dowel used to locate housing sections during assembly. |
| 4656301148 | FIXING PLATE | Retainer plate that secures the diaphragm to the actuator piston. |
| 0636100817 | CAP SCREW | M8 fastener for attaching the fixing plate to the actuator housing. |
| 4656301016 | SCREEN SHEET | Fine mesh filter that prevents debris from entering the pneumatic port. |
| 4656301017 | SCREEN SHEET | Alternative mesh filter with larger openings for high-flow applications. |
| 0636100803 | CAP SCREW | M6 fastener used for securing the screen sheet and cover plate. |
Frequently Asked Questions
Q: How do I know if my ZF WG190 needs a new 4657.330.011 diaphragm?
A: Perform a leak-down test on the actuator circuit. If the pressure drops more than 0.5 bar in 30 seconds with the engine off, the diaphragm is likely compromised. Also inspect for oil residue inside the air line quick-connects.
Q: Can I replace just the diaphragm without removing the transmission?
A: Yes, on most WG160 and WG190 installations, the actuator cover can be unbolted from the side of the TRANSMISSION HOUSING without dropping the unit. However, you must remove the HOUS.FRONT SECT to access the diaphragm retaining ring.
Q: What is the typical service life of this OEM diaphragm?
A: Under normal highway conditions, expect 400,000–500,000 km. Harsh environments with high moisture or abrasive dust can reduce life to 250,000 km. Always replace the FIXING PLATE and CYLINDRICAL PIN simultaneously to prevent uneven wear.
