Overview
The ZF 4660.139.002 SHIFT SYSTEM is a precision-engineered OEM genuine component designed for the WG200 and WG92 series transmissions. This assembly governs the mechanical selection of forward, neutral, and reverse gears by translating driver input into precise hydraulic valve actuation within the transmission valve body. As a critical interface between the operator and the gear train, the shift system ensures smooth, reliable engagement under heavy-duty cycles. The SKU 4660.139.002 is manufactured to ZF’s original tolerances, guaranteeing direct fitment and long service life. When installed alongside the 4660198001: PERIPHERALS kit, this shift system completes the control circuit for optimal shift quality.
Symptoms of Failure
- Hard or delayed gear engagement: When the shift system wears, internal detents or linkage slop cause hesitation when moving from neutral to drive or reverse, especially under load.
- Intermittent gear slippage: A worn shift fork or worn detent plate can allow the transmission to partially disengage from a selected gear, leading to power loss and RPM flare.
- Erratic shift pattern or stuck in gear: Debris or wear in the shift system can prevent the selector from returning to neutral, locking the transmission in one range.
- Oil seepage at shift shaft seal: Deteriorated seals within the shift housing allow transmission fluid to weep past the shaft, visible as drips near the shift lever base.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 4660.139.002 |
| OEM Reference | ZF 4660.139.002 |
| Material | Hardened steel with zinc-plated finish |
| Weight | 1.8 kg (approx.) |
| Overall Length | 245 mm |
| Mounting Hole Pattern | 4-bolt, 90 mm spacing |
| Seal Type | Integrated double-lip seal |
| Compatible Housing | 4660301018: HOUSING |
Compatibility
This shift system is engineered for ZF’s WG series powershift transmissions, specifically the WG92 and WG200 models. It is also backward-compatible with the WG180 series when used with the correct 0501209818: RANGE SELECTOR assembly. The part mounts directly to the 4660101011: TRANSMISSION HOUSING and interfaces with the internal shift rail. For proper installation, ensure the transmission housing is clean and free of debris; a worn housing bore may require replacement of the housing itself.
Related Components
| Part Number | Name | Function |
|---|---|---|
| 4660198001 | PERIPHERALS | Complete seal and gasket kit for shift system |
| 0501209818 | RANGE SELECTOR | Controls high/low range engagement |
| 4660101011 | TRANSMISSION HOUSING | Main structural case for gear train |
| 4660301018 | HOUSING | Shift system mounting housing |
| 0631306174 | CYLINDRICAL PIN | Locating pin for shift fork alignment |
| 0769123894 | TYPE PLATE | Identification plate for transmission |
| 4660221012 | SUCTION TUBE | Oil pickup tube for lubrication circuit |
| 0634100317 | O-RING | Seal for shift shaft bore |
| 0636103273 | CAP SCREW | Mounting fastener for shift assembly |
| 0750100022 | SCREW PLUG | Oil drain plug for housing |
ZF 4660.139.002 SHIFT SYSTEM – Shift System RFQ Support
PartsZF supports ZF 4660.139.002 SHIFT SYSTEM RFQs by checking the part number, related documentation, and buyer-supplied transmission context before quotation.
Part-Number Summary
Use ZF number 4660.139.002 when sending your RFQ. PartsZF can review dotted, spaced, and compact number formats against the available product and documentation records.
Application Context
- Illustration section: SHIFT SYSTEM
Cross Reference Support
If you have an OEM number, old supplier number, or visible marking, include it with your RFQ so PartsZF can compare it with the available records.
Specification Snapshot
| ZF part number | 4660.139.002 |
|---|---|
| Normalized SKU | 4660139002 |
| Part name | SHIFT SYSTEM |
| Product category | shift system |
| RFQ support | Part-number lookup and documentation review |
| Media support | Product photo or diagram review when available |

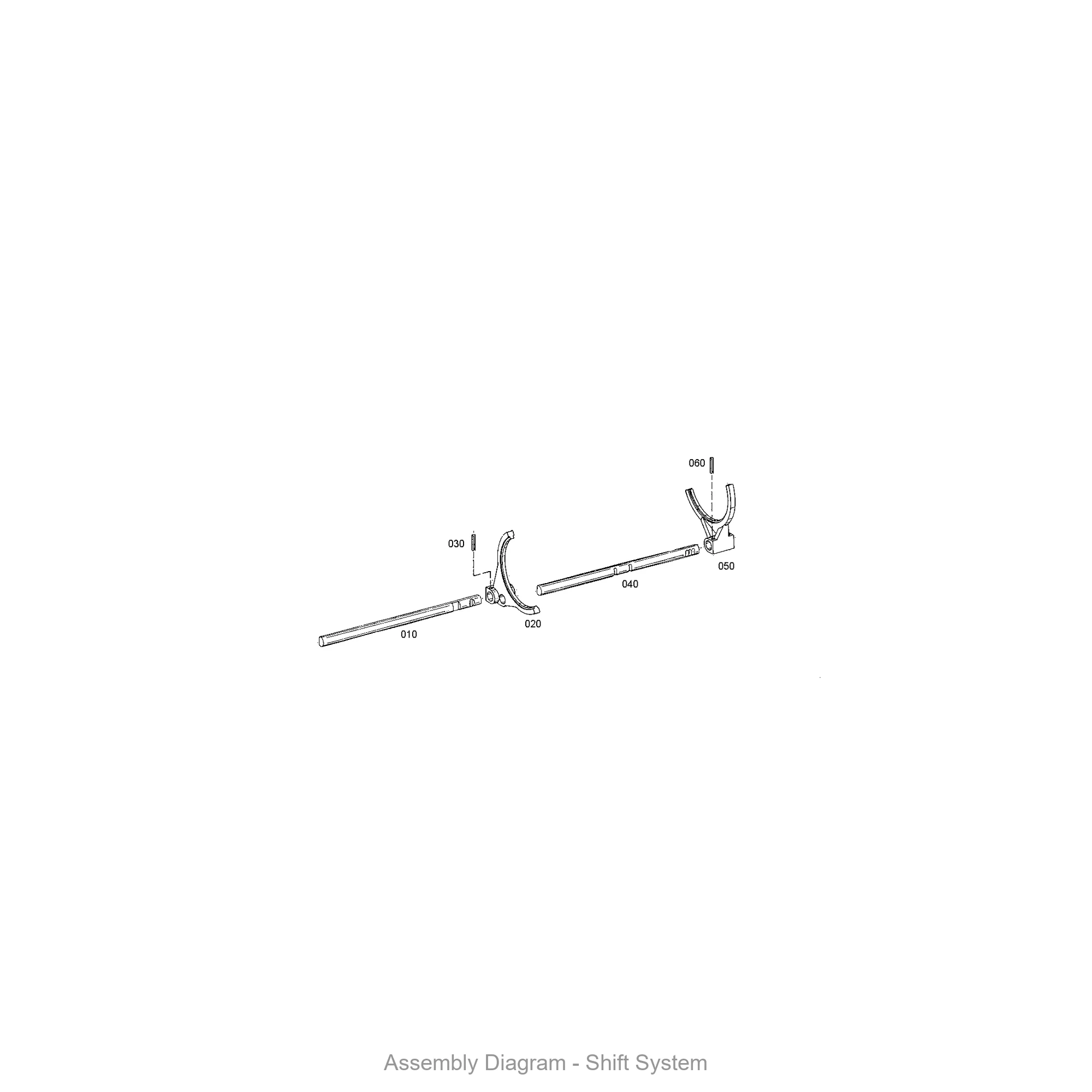

Image and Documentation Notes
Current product media status: diagram. Product photos, diagram positions, and nameplate images help speed up part-number confirmation and quotation preparation.
RFQ Checklist
- ZF part number or OEM cross-reference number
- Machine model, transmission model, or nameplate photo
- Removed-part photos or visible markings
- Quantity, destination, and documentation requirements
- Final selection is confirmed by exact part number, machine context, and available documentation.
