ZF 4660.333.007 INTERMEDIATE SHAFT for WG200/WG92 | OEM Genuine Part

Source ZF 4660.333.007 INTERMEDIATE SHAFT through PartsZF, a focused ZF transmission parts supplier and authorized ZF parts distributor. Get fast RFQ support for shaft, documentation review, and export coordination.

Overview

The ZF 4660.333.007 Intermediate Shaft is a critical load-bearing component engineered for the WG200 and WG92 series transmissions. This OEM genuine part transmits rotational torque from the input shaft to the main shaft gears, ensuring precise power distribution across the gear train. Located within the transmission’s central bore, the 4660.333.007 shaft interfaces directly with the 4660198001 PERIPHERALS assembly and the 0501209818 RANGE SELECTOR mechanism. Its hardened steel construction withstands high cyclic loads, making it essential for heavy-duty commercial vehicle applications.

Symptoms of Failure

  • Gear grinding or slipping during shifting: Worn splines on the intermediate shaft cause misalignment, leading to audible grinding or delayed engagement under load.
  • Vibration at highway speeds: A bent or fatigued shaft creates harmonic vibrations that intensify between 45-65 mph, often mistaken for driveline imbalance.
  • Metallic debris in transmission fluid: Flaking from the shaft’s bearing journals contaminates the oil, visible as silver particles during drain intervals.
  • Intermittent loss of power to wheels: When the shaft’s keyway fractures, torque transfer becomes erratic, causing sudden power drops during acceleration.

Technical Specifications

Parameter Value
Part Number 4660.333.007
Material Case-hardened alloy steel (20MnCr5 equivalent)
Overall Length 412 mm ±0.5 mm
Shaft Diameter 38 mm (bearing journals)
Spline Count 28 involute splines (DIN 5480)
Weight 3.85 kg
OEM Reference ZF 4660.333.007
Hardness 58-62 HRC (case depth 0.8 mm)

Compatibility

This intermediate shaft is specifically designed for ZF’s WG200 and WG92 series transmissions, including models WG180, WG200, WG210, and WG92. It is a direct replacement for units built between 2005-2020. The shaft works in conjunction with the 4660101011 TRANSMISSION HOUSING and the 4660301018 HOUSING to maintain proper gear alignment. Always verify your transmission’s serial number before ordering.

Related Components

Part Number Name Function
4660198001 Peripherals Controls hydraulic pressure to clutch packs
0501209818 Range Selector Engages high/low range planetary gears
4660101011 Transmission Housing Main structural casing for gear train
4660301018 Housing Rear cover housing for output shaft
0631306174 Cylindrical Pin Aligns shaft to gear hub
0769123894 Type Plate Identification label for transmission model
4660221012 Suction Tube Draws oil from sump to pump
0634100317 O-Ring Seals shaft bore against oil leaks
0636103273 Cap Screw Fastens shaft retaining plate
0750100022 Screw Plug Closes inspection port on housing

ZF 4660.333.007 INTERMEDIATE SHAFT – Shaft RFQ Support

For ZF 4660.333.007 INTERMEDIATE SHAFT, send the part number, removed-part photos, and application context so PartsZF can prepare a focused sourcing response.

Get a Quote WhatsApp

Part-Number Summary

Use ZF number 4660.333.007 when sending your RFQ. PartsZF can review dotted, spaced, and compact number formats against the available product and documentation records.

Application Context

  • Illustration section: GEARBOX

Cross Reference Support

If you have an OEM number, old supplier number, or visible marking, include it with your RFQ so PartsZF can compare it with the available records.

Specification Snapshot

ZF part number 4660.333.007
Normalized SKU 4660333007
Part name INTERMEDIATE SHAFT
Product category shaft
RFQ support Part-number lookup and documentation review
Media support Product photo or diagram review when available

Image and Documentation Notes

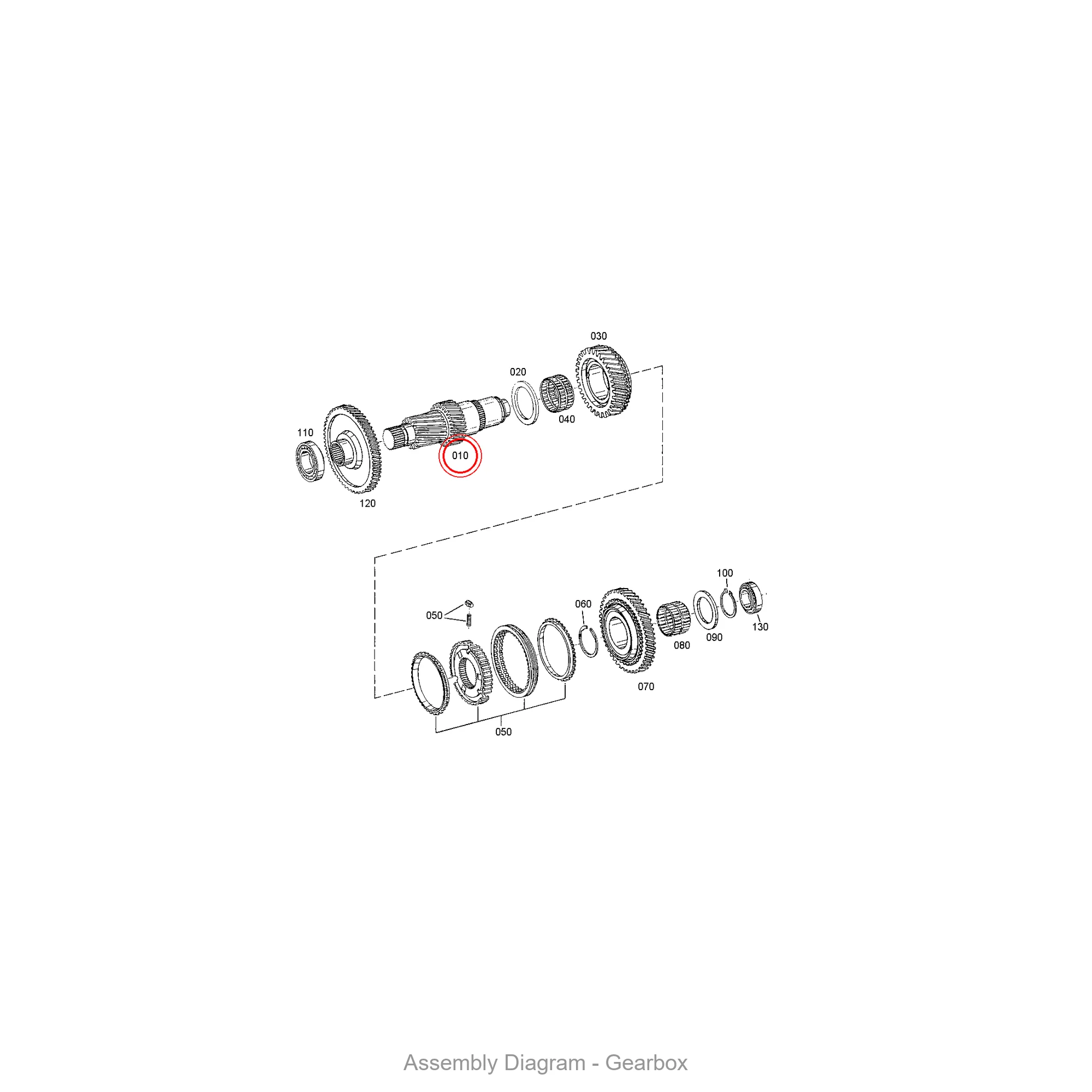

Current product media status: diagram. Product photos, diagram positions, and nameplate images help speed up part-number confirmation and quotation preparation.

RFQ Checklist

  • ZF part number or OEM cross-reference number
  • Machine model, transmission model, or nameplate photo
  • Removed-part photos or visible markings
  • Quantity, destination, and documentation requirements
  • Final selection is confirmed by exact part number, machine context, and available documentation.

Related Parts

Related Lookup Hubs

Transmission Fitment

ZF 6 WG 200(555/3), ZF WG 92, ZF WG 92 S 4

Section

Gearbox
