Overview

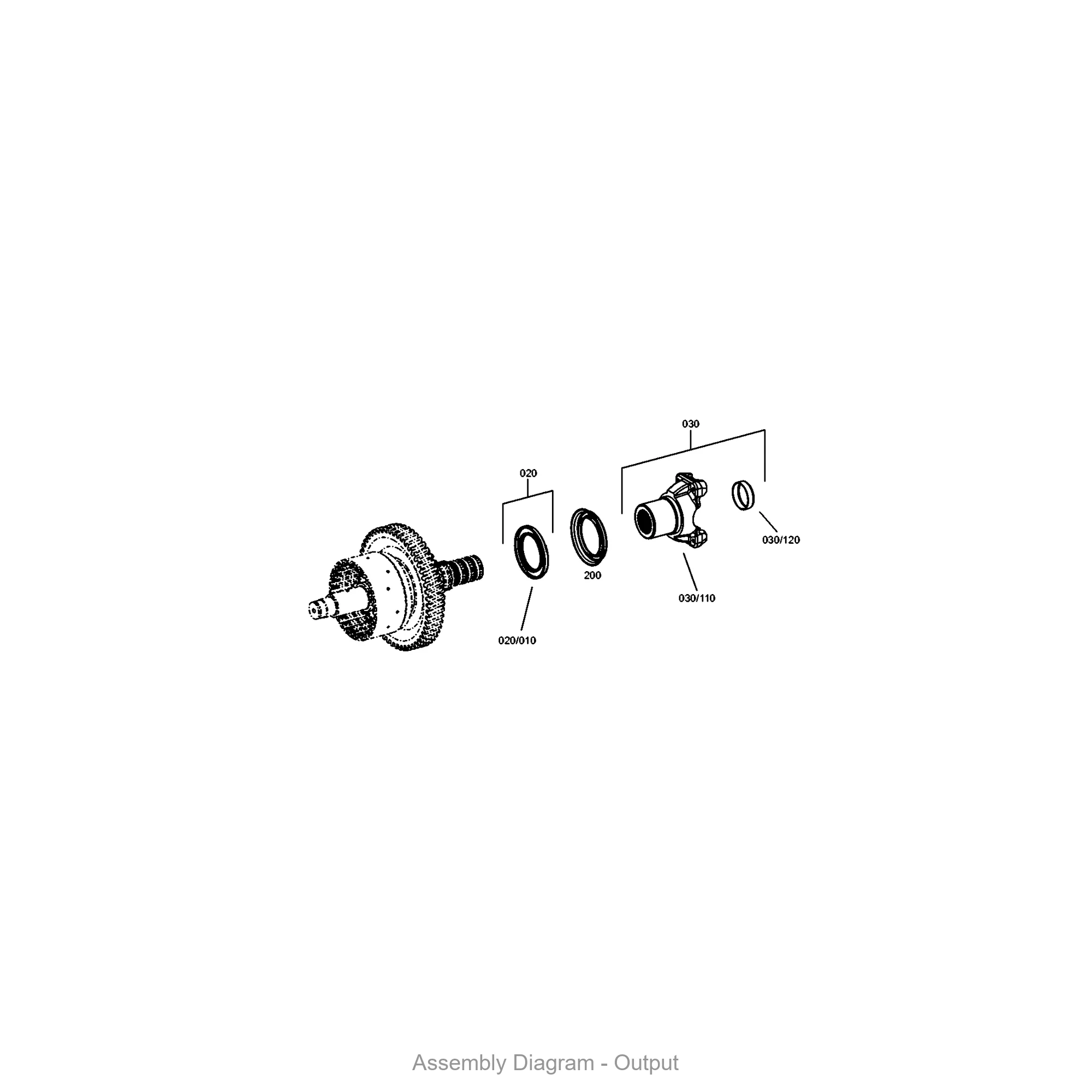

The ZF 4661.103.001 OUTPUT for WG90/WG94 is a critical driveline component engineered to transfer rotational force from the transmission’s planetary gearset to the output shaft. Positioned at the rear of the ZF WG90 and WG94 series transmissions, this OEM genuine part ensures precise torque delivery and alignment under heavy-duty industrial loads. The SKU 4661.103.001 is manufactured to ZF’s exacting tolerances, providing a direct replacement that restores factory performance in off-highway vehicles, construction equipment, and material handlers. When installed alongside the TRANSMISSION HOUSING (4661101001), this output component maintains structural integrity within the gearbox assembly.
Symptoms of Failure
- Oil leaks near the rear output seal: Worn splines or bearing surfaces on the 4661.103.001 can cause seal misalignment, leading to fluid seepage that contaminates the driveline.
- Gear slipping under load: A degraded output hub may fail to engage the planetary carrier correctly, resulting in intermittent power loss during acceleration or uphill operation.
- Excessive driveline vibration: Uneven wear on the output flange creates rotational imbalance, producing noticeable shuddering at highway speeds or during PTO engagement.
- Metallic debris in transmission fluid: Spalling or pitting on the output’s hardened surface generates fine metal particles, often detected during routine oil changes.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 4661.103.001 |
| Material | Case-hardened alloy steel (20MnCr5 equivalent) |
| Weight | 2.85 kg (6.28 lbs) |
| Outer Diameter | 98.5 mm |
| Overall Length | 142.0 mm |
| Spline Count | 24 involute splines (DIN 5480) |
| OEM Reference | ZF 4661.103.001 |
Compatibility
This output component is specifically designed for the ZF WG90 and WG94 transmission series. It also fits select variants of the WG180 and WG200 models where the output shaft interface matches the 24-spline pattern. Always verify the spline count and housing bore dimensions before installation. The part integrates directly with the HOUSING (4661301007) and the TUBE (4661301093) to form the rear seal cavity. For proper alignment, the CYLINDRICAL PIN (0631306174) is used to index the output to the planetary carrier.
Related Components
| Part Number | Name | Function |
|---|---|---|
| 4661101001 | TRANSMISSION HOUSING | Encloses the gear train and supports output shaft bearings |
| 4661301007 | HOUSING | Rear housing section that seals the output area |
| 4661301093 | TUBE | Oil feed tube directing lubrication to the output bearings |
| 0631306174 | CYLINDRICAL PIN | Alignment pin for output-to-carrier positioning |
| 0769123894 | TYPE PLATE | Identification plate for transmission model and serial number |
| 0750100022 | SCREW PLUG | Seals oil passages in the housing |
| 0636302602 | SCREW PLUG | Magnetic drain plug for ferrous debris capture |
| 0634100633 | O-RING | Seals the output shaft bore against oil leakage |
| 4661301029 | NOZZLE | Lubrication nozzle for planetary gear cooling |
| 4661301027 | NOZZLE | Secondary lubrication nozzle for output bearing |
