Overview
The ZF 4681.101.002 TRANSMISSION HOUSING is the central structural core of the BP210 and BP230 series transmissions. This OEM genuine part encloses the planetary gear sets, valve body, and torque converter assembly, providing precise alignment and protection from contaminants. As the main casing, it absorbs torsional loads and maintains oil pressure integrity throughout the drivetrain. The SKU 4681.101.002 is engineered to ZF’s exacting tolerances, ensuring a seamless fit with internal components like the 4681201007: HOUS.FRONT SECT and the 4681201008: HOUSING REAR PART to form a complete, leak-free assembly.
Symptoms of Failure
When the ZF 4681.101.002 transmission housing deteriorates, operators may notice these specific failure indicators:
- Persistent oil leaks at the bell housing seam: Cracks or warping in the housing cause fluid to escape, leading to low transmission fluid levels and erratic shifting.
- Gear slipping under heavy load: A compromised housing can misalign the 4681298001: CASE, reducing clutch pack engagement and causing power loss.
- Excessive drivetrain vibration: Structural fatigue in the housing allows the input shaft to wobble, producing audible humming or grinding noises during acceleration.
- Contaminated transmission fluid: Housing cracks permit dirt and moisture ingress, accelerating wear on internal bearings and seals.
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | 4681.101.002 |
| Material | High-strength aluminum alloy (A356-T6) |
| Weight | 18.5 kg (40.8 lbs) |
| Overall Dimensions | 520 mm x 380 mm x 290 mm |
| Bolt Torque Spec | 45 Nm (M10 bolts) |
| OEM Reference | ZF 4681.101.002 (Genuine) |
| Seal Surface Finish | Ra 0.8 µm |
Compatibility
This transmission housing is designed for ZF’s BP210 and BP230 series, which are commonly used in medium-duty trucks, buses, and construction equipment. It also fits select WG180, WG200, and WG210 models where the housing geometry matches. For proper assembly, the housing must be paired with the 0631306074: CYLINDRICAL PIN for precise dowel alignment. Always verify your transmission’s serial number before ordering.
Related Components
| Part Number | Name | Function |
|---|---|---|
| 4681201007 | HOUS.FRONT SECT | Front section of the transmission housing |
| 4681201008 | HOUSING REAR PART | Rear housing section for output shaft support |
| 4681298001 | CASE | Internal case for planetary gear set |
| 0631306074 | CYLINDRICAL PIN | Alignment dowel for housing mating surfaces |
| 0636100801 | CAP SCREW | M10 bolt for housing flange fastening |
| 4681301015 | FIXING PLATE | Secures oil pump to housing |
| 4681301016 | SCREEN SHEET | Fine mesh filter for oil return circuit |
| 4681301017 | SCREEN SHEET | Coarse mesh pre-filter for sump |
| 0636100803 | CAP SCREW | M12 bolt for heavy-duty housing joints |
| 0750100162 | OIL FEED.HOUSG. | Oil feed line housing for lubrication |
Frequently Asked Questions
Q: Can the ZF 4681.101.002 housing be repaired if cracked?
A: Minor cracks can sometimes be welded by a specialist, but ZF recommends replacement to maintain structural integrity. A repaired housing may not meet OEM torque specs, risking future failure.
Q: What torque should I use for the housing bolts?
A: For the M10 cap screws (part 0636100801), use 45 Nm. For the M12 bolts (0636100803), use 70 Nm. Always tighten in a cross pattern to avoid warping the housing.
Q: Does this housing include the oil feed line?
A: No, the 4681.101.002 is the main casing only. The oil feed line is a separate component (part 0750100162) that must be ordered individually.
📞 Need this part? Contact our ZF specialists:
Email: info@partszf.com |
Phone: +86 158 2286 3467 |
Request a Quote →
ZF 4681.101.002 TRANSMISSION HOUSING – Housing RFQ Support
PartsZF helps B2B buyers source ZF 4681.101.002 TRANSMISSION HOUSING with fast RFQ support, expert part-number lookup, documentation review, and export coordination. This housing page is built from confirmed catalog, media, and reference data to reduce sourcing uncertainty for construction machinery transmission parts.
Part-Number Summary
Use ZF number 4681.101.002 when sending your RFQ. PartsZF can review dotted, spaced, and compact number formats against the available product and documentation records.
Application Context
- Documentation reference: 4681054011
- Documentation reference: 4681054012
- Documentation reference: 4681054013
- Documentation reference: 4681054018
- Illustration section: BP 210
- Illustration section: BP 230
- Illustration section: TRANSMISSION HOUSING
Cross Reference Support
If you have an OEM number, old supplier number, or visible marking, include it with your RFQ so PartsZF can compare it with the available records.
Specification Snapshot
| ZF part number | 4681.101.002 |
|---|---|
| Normalized SKU | 4681101002 |
| Part name | TRANSMISSION HOUSING |
| Product category | housing |
| Cross-reference support | Available for RFQ review |
Image and Documentation Notes

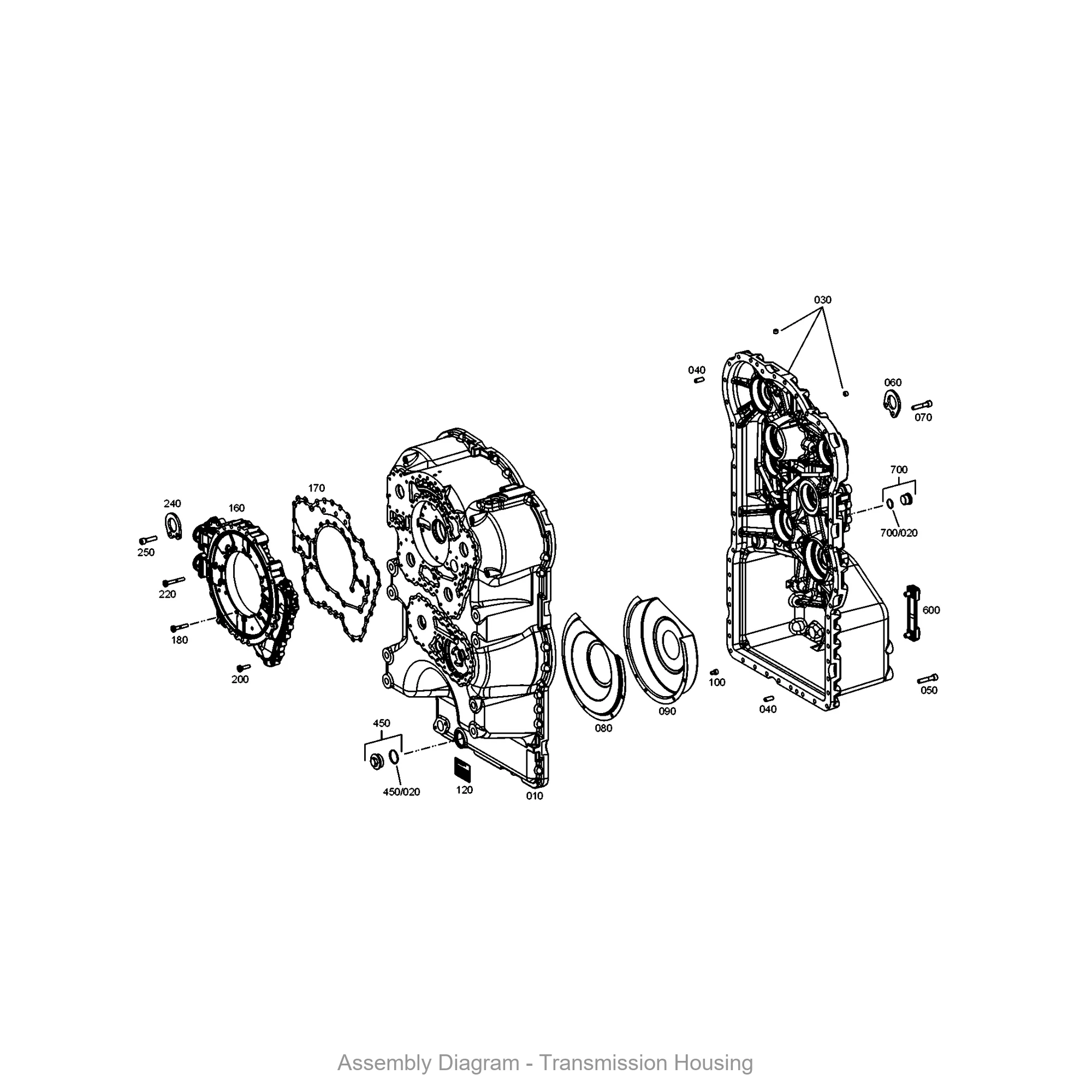

Current product media status: diagram. Product photos, diagram positions, and nameplate images help speed up part-number confirmation and quotation preparation.
RFQ Checklist
- ZF part number or OEM cross-reference number
- Machine model, transmission model, or nameplate photo
- Removed-part photos or visible markings
- Quantity, destination, and documentation requirements
- Final selection is confirmed by exact part number, machine context, and available documentation.
Related Parts
- ZF 4656.306.195 HOUSING
- ZF 4657.298.102 HOUSING REAR SECTION
- ZF 4646.101.190 TRANSMISSION HOUSING
- ZF 4646.301.314 HOUSING
- ZF 4644.301.402 TRANSMISSION HOUSING
