Overview
The ZF 4681.106.006 SHIFT SYSTEM is a precision-engineered OEM genuine component designed exclusively for the BP210 and BP230 series transmissions. This assembly governs the mechanical selection of forward and reverse gears, translating driver input into precise hydraulic valve actuation within the transmission control module. As a critical interface between the operator and the gear train, the shift system ensures smooth, repeatable engagement under heavy-duty industrial loads. The SKU 4681.106.006 is manufactured to ZF’s original tolerances, guaranteeing direct bolt-on replacement without modification. It sits directly atop the main control bore, interfacing with the TRANSMISSION HOUSING and the HOUS.FRONT SECT to form a sealed, lubricated shift cavity.
Symptoms of Failure
- Hard or sticky gear engagement: When the shift system wears, operators often report difficulty moving the lever into gear, especially in cold conditions. This indicates binding within the shift fork or detent mechanism.
- Intermittent gear slipping under load: A worn shift system may fail to fully lock the selected gear, causing the transmission to slip or “pop out” of gear during heavy pulling or incline operation.
- Oil leaks around the shift shaft seal: Degraded seals or worn bushings in the shift system allow transmission fluid to weep past the shaft, leaving visible drips on the HOUSING REAR PART.
- Unusual metallic noise during shifting: A clunking or grinding sound when moving the selector indicates excessive clearance between the shift system components and the internal CASE.
Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number / SKU | 4681.106.006 |
| OEM Reference | ZF 4681.106.006 |
| Material | Hardened alloy steel with zinc-nickel plating |
| Weight | 1.85 kg (4.08 lbs) |
| Overall Length | 245 mm |
| Mounting Hole Centers | 120 mm |
| Operating Temperature Range | -40°C to +120°C |
| Seal Type | Viton dual-lip seal |
Compatibility
This shift system is engineered for the ZF BP210 and BP230 series transmissions, commonly found in mid-range industrial vehicles, forklifts, and construction loaders. Based on its mechanical design and bore pattern, it is also compatible with the WG180 and WG200 series when used with the correct FIXING PLATE. For BP210 and BP230 applications, it directly replaces OEM shift assemblies without adapter kits. Always verify the shift lever interface and detent spring configuration against your specific transmission serial number before installation.
Related Components
| Part Number | Name | Function |
|---|---|---|
| 4681101002 | TRANSMISSION HOUSING | Main structural casing that encloses the gear train and shift system |
| 4681201007 | HOUS.FRONT SECT | Front section housing that supports the input shaft and shift mechanism |
| 4681201008 | HOUSING REAR PART | Rear casing that seals the output shaft and shift linkage |
| 4681298001 | CASE | Complete case assembly for the shift system bore |
| 0631306074 | CYLINDRICAL PIN | Alignment pin for shift fork positioning |
| 0636100801 | CAP SCREW | M10 fastening bolt for shift system cover plate |
| 4681301015 | FIXING PLATE | Retainer plate that secures the shift system to the housing |
| 4681301016 | SCREEN SHEET | Fine mesh filter screen for shift system oil gallery |
| 4681301017 | SCREEN SHEET | Secondary coarse mesh screen for debris protection |
| 0636100803 | CAP SCREW | M12 fastening bolt for shift system bracket |
Frequently Asked Questions
Q: Can the 4681.106.006 shift system be installed without removing the transmission from the vehicle?
A: Yes, in most BP210 and BP230 applications, the shift system can be accessed by removing the side cover plate and the FIXING PLATE. No transmission removal is required unless the TRANSMISSION HOUSING is damaged.
Q: What is the expected service life of this OEM shift system?
A: Under normal industrial duty cycles with proper fluid maintenance, the 4681.106.006 typically lasts 8,000 to 12,000 operating hours. Premature failure is often linked to contaminated hydraulic fluid or worn CYLINDRICAL PIN bushings.
Q: Does this part include the shift lever and knob?
A: No, the 4681.106.006 is the internal shift system assembly only. The external lever and linkage are sold separately. You will need to reuse your existing shift lever or order the appropriate CASE adapter if upgrading.
📞 Need this part? Contact our ZF specialists:
Email: info@partszf.com |
Phone: +86 158 2286 3467 |
Request a Quote →
ZF 4681.106.006 SHIFT SYSTEM – Shift System RFQ Support
PartsZF helps B2B buyers source ZF 4681.106.006 SHIFT SYSTEM with fast RFQ support, expert part-number lookup, documentation review, and export coordination. This shift system page is built from confirmed catalog, media, and reference data to reduce sourcing uncertainty for construction machinery transmission parts.
Part-Number Summary
Use ZF number 4681.106.006 when sending your RFQ. PartsZF can review dotted, spaced, and compact number formats against the available product and documentation records.
Application Context
- Documentation reference: 4681054011
- Documentation reference: 4681054012
- Documentation reference: 4681054013
- Documentation reference: 4681054018
- Illustration section: BP 210
- Illustration section: BP 230
- Illustration section: SHIFT SYSTEM
Cross Reference Support
If you have an OEM number, old supplier number, or visible marking, include it with your RFQ so PartsZF can compare it with the available records.
Specification Snapshot
| ZF part number | 4681.106.006 |
|---|---|
| Normalized SKU | 4681106006 |
| Part name | SHIFT SYSTEM |
| Product category | shift system |
| Cross-reference support | Available for RFQ review |
Image and Documentation Notes

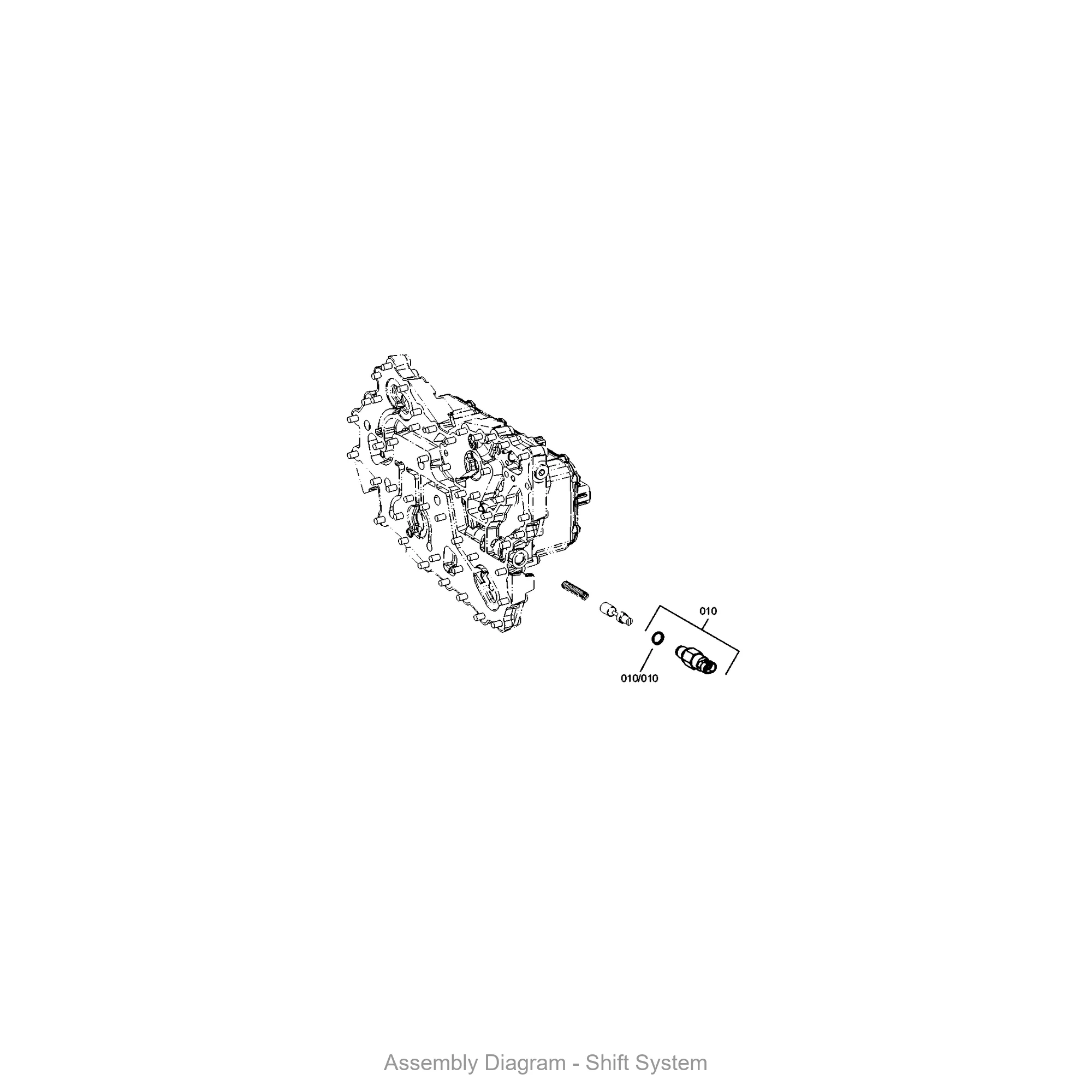

Current product media status: diagram. Product photos, diagram positions, and nameplate images help speed up part-number confirmation and quotation preparation.
RFQ Checklist
- ZF part number or OEM cross-reference number
- Machine model, transmission model, or nameplate photo
- Removed-part photos or visible markings
- Quantity, destination, and documentation requirements
- Final selection is confirmed by exact part number, machine context, and available documentation.
