ZF 4681.330.012 DIAPHRAGM
ZF Part Number: 4681.330.012 (also written as 4681330012 / 4681.330.012 / 4681 330 012)
OEM Cross Reference / Interchange Numbers
ZF 4681.330.012 (DIAPHRAGM) is the original manufacturer part. The following OEM and third-party part numbers are direct cross-references:
| Brand / OEM | Part Number | Type |
|---|---|---|
| 徐工铲运 | 860520903 | OEM Cross Ref |
| 柳工 | SP206954 | OEM Cross Ref |
This ZF part (4681.330.012) directly replaces the following OEM numbers: 徐工铲运: 860520903; 柳工: SP206954. All listed cross-reference numbers are confirmed compatible with ZF 4681.330.012.
Compatible ZF Transmission Models
This diaphragm is used in the following ZF transmission models:
- ZF 4 BP 210
- ZF 4 BP 230
Part Location in Assembly
| Section | Position No. | Qty |
|---|---|---|
| Engine Connection | 070 | 3 |
| Kit Repair Kit | 070 | 3 |
Related Parts in Same Assembly
- 0501.009.431 — CONVERTER (Qty: 1)
- 0501.210.966 — TAPPET SWITCH (Qty: 1)
- 0501.211.384 — VALVE (Qty: 1)
- 0501.219.677 — RANGE SELECTOR (Qty: 1)
- 0501.298.690 — FILTER COMPLETE (Qty: 1)
- 0501.328.675 — SPEED SENSOR (Qty: 3)
- 0501.335.480 — PRESSURE FILTER (Qty: 1)
- 0734.401.267 — PISTON RING (Qty: 2)
Frequently Asked Questions
What is ZF part number 4681.330.012?
ZF 4681.330.012 is an OEM diaphragm produced by ZF Friedrichshafen AG, one of the world’s largest automotive suppliers. It is designed for use in ZF powershift transmissions, specifically in models such as 4 BP 210, 4 BP 230. This is a genuine ZF component, not an aftermarket reproduction.
Which ZF transmissions use 4681.330.012?
This diaphragm is found in 2 ZF transmission variants, including: 4 BP 210, 4 BP 230. These transmissions are commonly used in wheel loaders, graders, and other heavy construction equipment. Contact us to verify fitment for your specific machine.
Where is ZF 4681.330.012 installed in the transmission?
This diaphragm is located in the engine connection, kit repair kit area of the transmission. It appears in 19 different assembly configurations. In the service manual, look for position number 070 in the Engine Connection section.
How do I look up ZF part 4681.330.012?
This part can be found under several formats: 4681330012 / 4681.330.012 / 4681 330 012. All formats refer to the same genuine ZF component. When ordering, any of these numbers will work. The official ZF catalog uses the dotted format (4681.330.012).
Where can I buy ZF 4681.330.012?
You can purchase genuine ZF 4681.330.012 from PartsZF.com (operated by Tianjin Xiaohang Construction Machinery Co., Ltd). We maintain direct supply channels with ZF and offer worldwide shipping. Contact our parts specialists for current pricing and lead times.
Need this part? Contact our ZF parts specialist for pricing and availability. We ship worldwide with OEM quality guarantee.

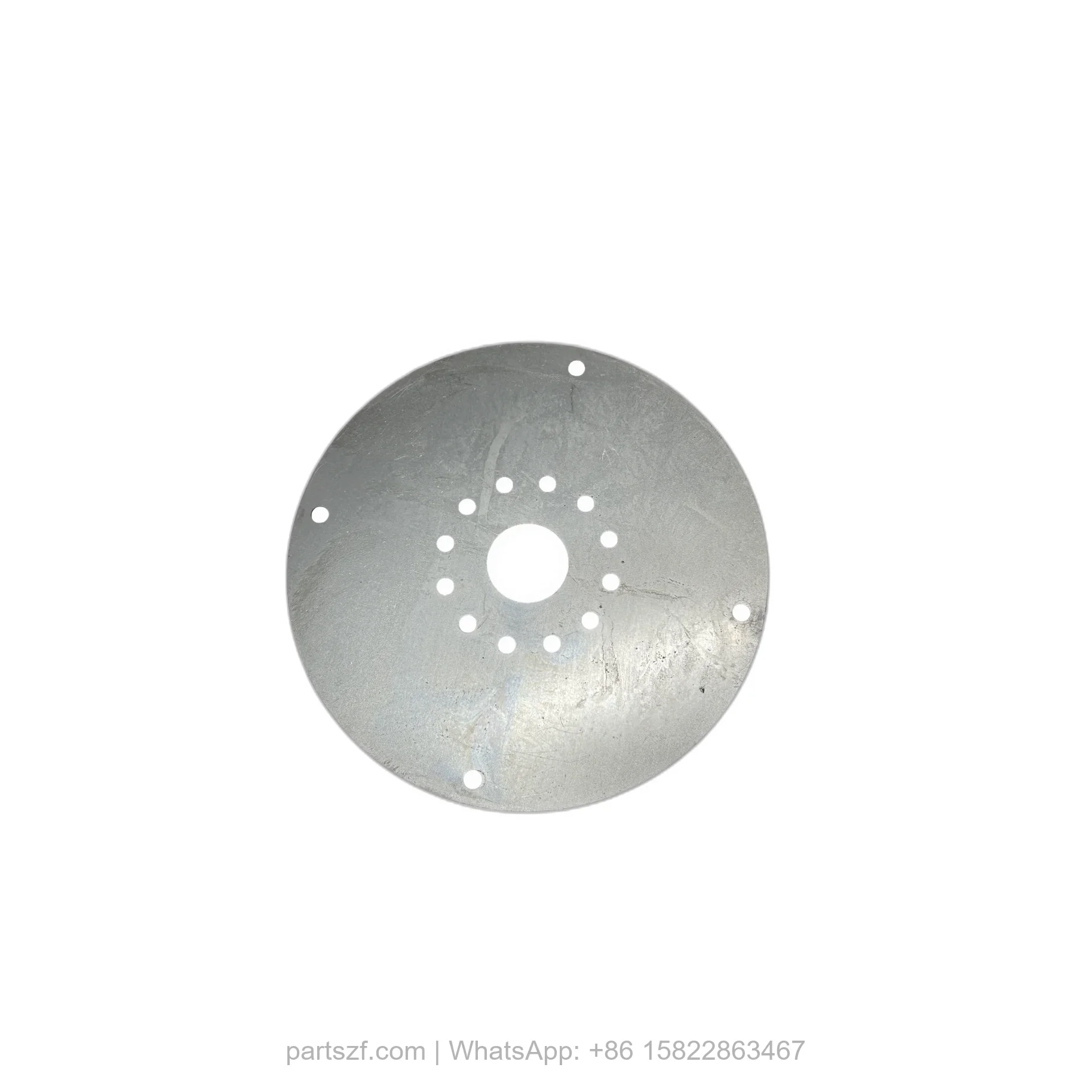

Product Photos

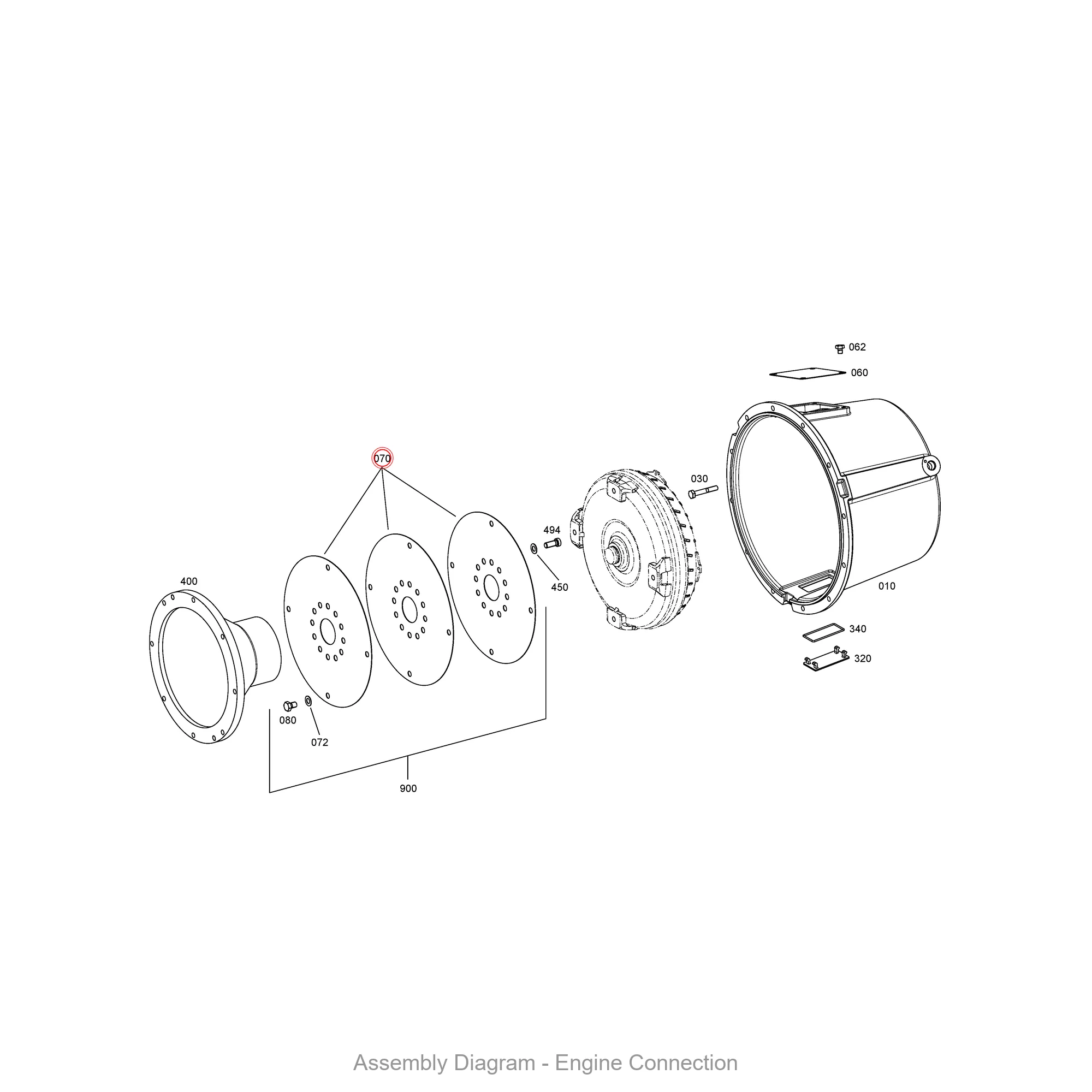

Exploded View / Assembly Diagram
The diagram below shows where ZF 4681.330.012 is located within the transmission assembly.
