ZF 4699.270.040 ASSEMBLY PARTS
ZF Part Number: 4699.270.040 (also written as 4699270040 / 4699.270.040 / 4699 270 040)
Part Location in Assembly
| Section | Position No. | Qty |
|---|---|---|
| Motor | 020 | 1 |
| Viewer Gp25 Table 0 | 020 | 1 |
| Viewer Gp25 Table 0 | 25.020 | 1 |
| Viewer Gp27 Table 0 | 040 | 1 |
Application / Compatibility
| Assembly | Section | Model |
|---|---|---|
| 4699.825.151 | MOTOR | — |
| 4699.825.199 | MOTOR | — |
| 4699.825.200 | MOTOR | — |
| 4699.825.209 | ASSEMBLY PARTS | — |
| 4699.825.209 | Viewer_GP25_table_0 | — |
| 4699.825.210 | ASSEMBLY PARTS | — |
| 4699.825.210 | Viewer_GP25_table_0 | — |
| 4699.825.225 | ASSEMBLY PARTS | — |
| 4699.825.225 | Viewer_GP25_table_0 | — |
| 4699.825.226 | ASSEMBLY PARTS | — |
Related Parts in Same Assembly
- 0501.335.277 — MOTOR (Qty: 1)
- 0501.336.102 — BRAKE (Qty: 1)
- 4699.025.150 — GP25 (Qty: 1)
- 4699.101.138 — HOUSING (Qty: 1)
- 4699.298.047 — GEAR SHAFT (Qty: 1)
- 4699.301.218 — HOUSING (Qty: 1)
- 4699.302.217 — DRIVE PINION (Qty: 1)
- 4699.303.207 — WHEEL SHAFT (Qty: 1)
Frequently Asked Questions
What is ZF part number 4699.270.040?
ZF 4699.270.040 is an OEM assembly parts produced by ZF Friedrichshafen AG, one of the world’s largest automotive suppliers. It is designed for use in ZF powershift transmissions, specifically in models such as various ZF transmission models. This is a genuine ZF component, not an aftermarket reproduction.
Where is ZF 4699.270.040 installed in the transmission?
This assembly parts is located in the assembly parts, motor, viewer_gp25_table_0 area of the transmission. It appears in 27 different assembly configurations. In the service manual, look for position number 020 in the Motor section.
How do I look up ZF part 4699.270.040?
This part can be found under several formats: 4699270040 / 4699.270.040 / 4699 270 040. All formats refer to the same genuine ZF component. When ordering, any of these numbers will work. The official ZF catalog uses the dotted format (4699.270.040).
Where can I buy ZF 4699.270.040?
You can purchase genuine ZF 4699.270.040 from PartsZF.com (operated by Tianjin Xiaohang Construction Machinery Co., Ltd). We maintain direct supply channels with ZF and offer worldwide shipping. Contact our parts specialists for current pricing and lead times.
Need this part? Contact our ZF parts specialist for pricing and availability. We ship worldwide with OEM quality guarantee.

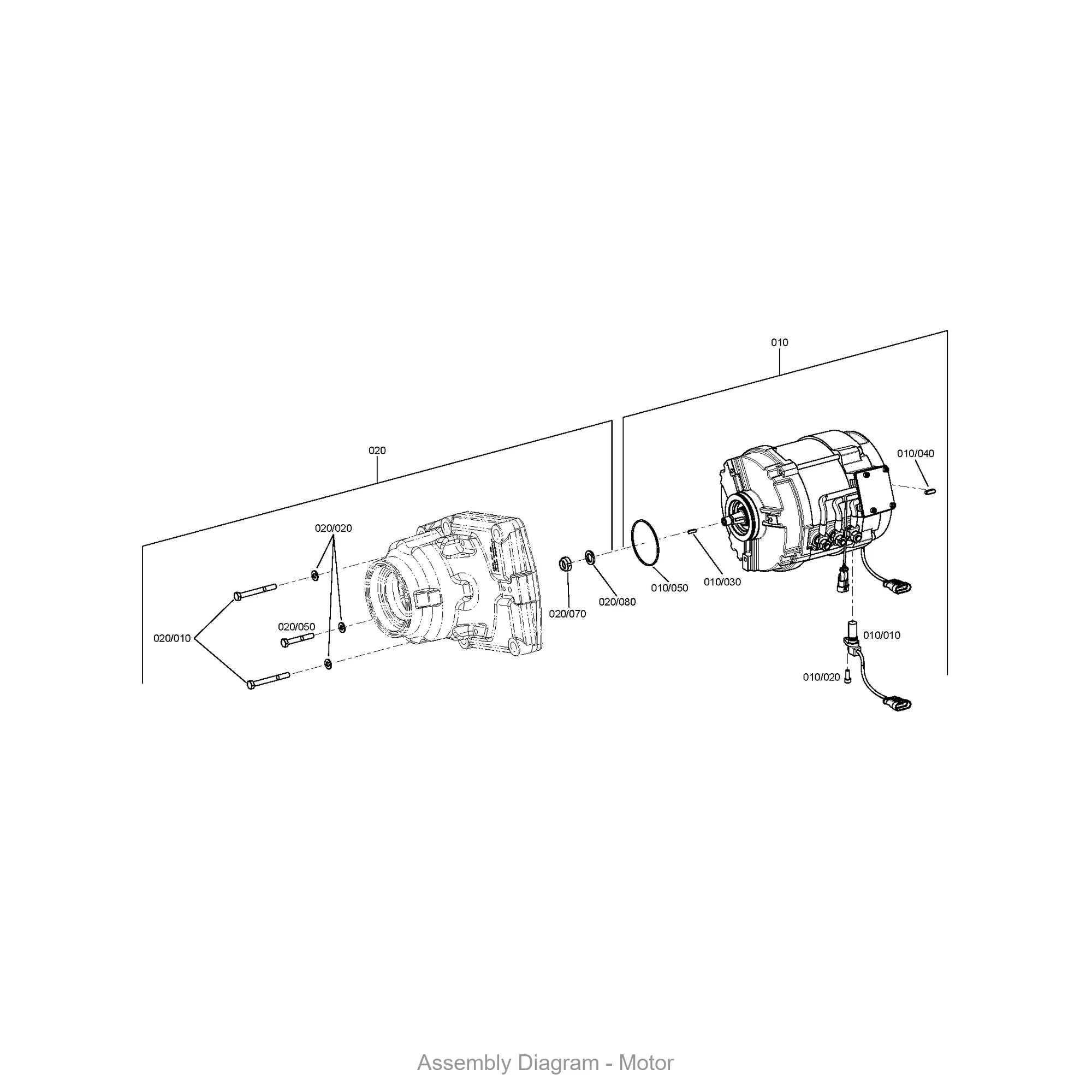

Exploded View / Assembly Diagram
The diagram below shows where ZF 4699.270.040 is located within the transmission assembly.
