Overview
This genuine ZF 6009.065.452 CONTROL UNIT is the electronic brain of the WG160 transmission series. Mounted directly to the valve body assembly, it governs shift timing, pressure modulation, and torque converter lockup. The SKU 6009.065.452 interprets signals from the vehicle’s ECU and transmission speed sensors to ensure precise gear engagement under varying load conditions. As an OEM part, it is engineered to match the exact hydraulic and electrical tolerances required by ZF’s original design, making it a direct replacement for failed units in heavy-duty commercial applications.
Symptoms of Failure
- Erratic shifting or delayed engagement: When the 6009.065.452 control unit loses calibration, you may experience harsh upshifts or a noticeable lag when moving from neutral to drive. This often triggers a transmission warning light on the dashboard.
- Intermittent gear slipping under load: A failing control unit can cause the transmission to momentarily lose hydraulic pressure, resulting in a slipping sensation during acceleration or while climbing grades.
- No communication with diagnostic tools: If the unit’s internal circuitry fails, the transmission control module (TCM) may not recognize the part, leading to a “no communication” fault code and forcing the transmission into a default limp-home mode.
- Unexpected downshifting or gear hunting: A worn control unit may send erratic signals, causing the transmission to constantly search for the correct gear on flat terrain, increasing fuel consumption and driveline wear.
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | 6009.065.452 |
| OEM Reference | ZF 6009.065.452 |
| Material | Die-cast aluminum housing with sealed electronic PCB |
| Weight | 1.8 kg (4.0 lbs) |
| Dimensions (L x W x H) | 210 mm x 140 mm x 55 mm |
| Operating Voltage | 12V / 24V DC (vehicle dependent) |
| Connector Type | 40-pin AMP/TE sealed connector |
| Temperature Range | -40°C to +125°C |
Compatibility
This control unit is specifically designed for the ZF WG160 series transmissions. Based on its electronic architecture and mounting pattern, it is also compatible with the WG180 and WG200 models that share the same valve body interface. It is not backward-compatible with older WG120 or WG150 units without significant harness modification. Always verify your transmission’s serial number against the OEM parts catalog before installation.
Related Components
When replacing the control unit, inspect the surrounding assembly for wear. The 4656101032: TRANSMISSION HOUSING provides the structural enclosure, while the 4656201075: HOUS.FRONT SECT and 4656201034: HOUSING REAR PART seal the gear train. For complete rear-end service, the 4472239177: HOUSING REAR PART is also available.
Related Components
| Part Number | Name | Function |
|---|---|---|
| 4656101032 | TRANSMISSION HOUSING | Main structural casing for gear assembly |
| 4656201075 | HOUS.FRONT SECT | Front section housing torque converter |
| 4656201034 | HOUSING REAR PART | Rear housing for output shaft support |
| 4472239177 | HOUSING REAR PART | Alternate rear housing variant |
| 0631306816 | CYLINDRICAL PIN | Alignment pin for housing assembly |
| 0636100817 | CAP SCREW | Fastener for control unit mounting |
| 4656301016 | SCREEN SHEET | Filter screen for hydraulic circuit |
| 4656301017 | SCREEN SHEET | Secondary filter screen variant |
| 0636100803 | CAP SCREW | Mounting bolt for valve body |
| 4681301040 | OIL FEED.HOUSG. | Oil supply line housing |
Frequently Asked Questions
Q: Can the 6009.065.452 control unit be repaired, or must it be replaced?
A: This unit is a sealed electronic assembly. Internal circuit board damage or corrosion typically requires full replacement. Attempting to repair it often leads to intermittent failures and voided warranty.
Q: How do I know if my WG160 needs a new control unit versus a simple software update?
A: If the transmission exhibits hard shifting or gear hunting but still communicates with a diagnostic scanner, a software reflash may resolve the issue. However, if the unit fails to communicate at all or shows internal short-circuit codes, replacement with SKU 6009.065.452 is necessary.
Q: Is this control unit interchangeable with the WG180 or WG200 series?
A: Yes, the 6009.065.452 is physically and electrically compatible with WG180 and WG200 transmissions that use the same 40-pin connector and valve body layout. Always cross-reference your transmission model number to confirm.
📞 Need this part? Contact our ZF specialists:
Email: info@partszf.com |
Phone: +86 158 2286 3467 |
Request a Quote →
ZF 6009.065.452 CONTROL UNIT – Control Unit RFQ Support
PartsZF helps B2B buyers source ZF 6009.065.452 CONTROL UNIT with fast RFQ support, expert part-number lookup, documentation review, and export coordination. This control unit page is built from confirmed catalog, media, and reference data to reduce sourcing uncertainty for construction machinery transmission parts.
Part-Number Summary
Use ZF number 6009.065.452 when sending your RFQ. PartsZF can review dotted, spaced, and compact number formats against the available product and documentation records.
Application Context
- Documentation reference: 4656054042
- Documentation reference available for RFQ review

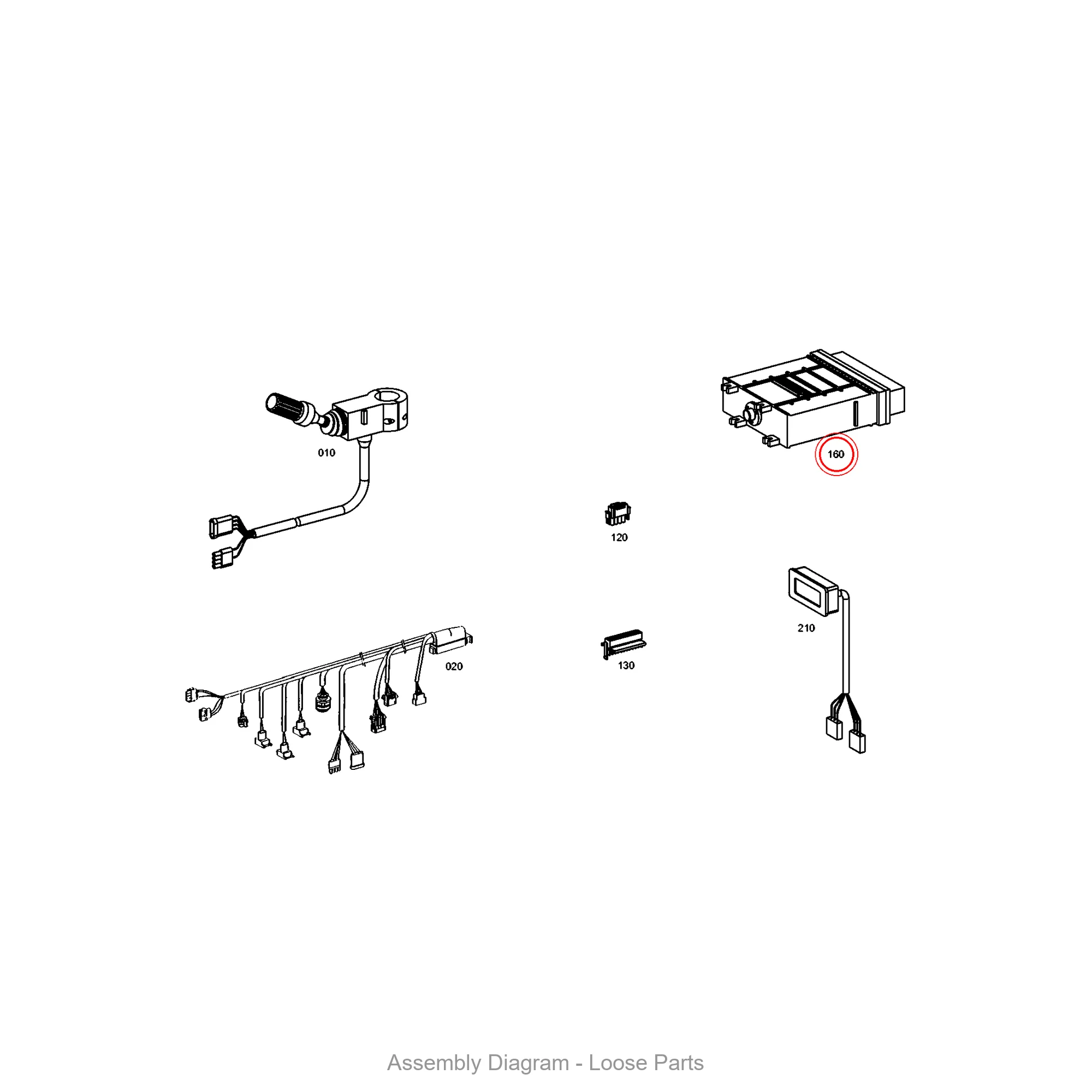

- Illustration section: LOOSE PARTS
Cross Reference Support
If you have an OEM number, old supplier number, or visible marking, include it with your RFQ so PartsZF can compare it with the available records.
Specification Snapshot
| ZF part number | 6009.065.452 |
|---|---|
| Normalized SKU | 6009065452 |
| Part name | CONTROL UNIT |
| Product category | control unit |
| Cross-reference support | Available for RFQ review |
Image and Documentation Notes
Current product media status: diagram. Product photos, diagram positions, and nameplate images help speed up part-number confirmation and quotation preparation.
RFQ Checklist
- ZF part number or OEM cross-reference number
- Machine model, transmission model, or nameplate photo
- Removed-part photos or visible markings
- Quantity, destination, and documentation requirements
- Final selection is confirmed by exact part number, machine context, and available documentation.
