Overview
The ZF 6009.092.941 CONTROL UNIT is the electronic brain governing shift logic and hydraulic pressure modulation within the WG210 series transmission. Positioned directly on the valve body assembly, this OEM genuine part interprets input from vehicle sensors to command clutch engagement and gear selection. The SKU 6009.092.941 is precision-calibrated for the WG210 platform, ensuring seamless communication between the transmission control module and the hydraulic actuation system. When paired with a robust TRANSMISSION HOUSING, this control unit maintains consistent oil flow paths and electronic signal integrity under heavy-duty cycles.
Symptoms of Failure
- Erratic shift timing or harsh engagement — A failing control unit causes delayed or abrupt gear changes, often accompanied by a “limp mode” activation. This is a common search query for “WG210 transmission shifting problems.”
- Intermittent loss of drive — The transmission may suddenly drop into neutral or refuse to engage a gear, particularly after thermal cycling. This symptom points directly to internal electronic degradation in the 6009.092.941.
- Hydraulic pressure warning codes — Diagnostic trouble codes (DTCs) related to solenoid circuit faults or pressure sensor mismatch often trace back to a compromised control unit. Search terms like “ZF WG210 pressure control failure” align with this issue.
- Oil contamination in electrical connectors — Leaking seals within the control unit allow transmission fluid to migrate into the wiring harness, causing corrosion and short circuits. This is a known failure mode for “ZF control unit oil leak” queries.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 6009.092.941 |
| OEM Reference | ZF 6009.092.941 |
| Material | Die-cast aluminum housing with sealed electronics |
| Weight | 1.85 kg (4.08 lbs) |
| Dimensions (L x W x H) | 210 mm x 140 mm x 65 mm |
| Operating Voltage | 12V / 24V DC |
| Connector Type | 40-pin AMP sealed connector |
Compatibility
This control unit is engineered specifically for the ZF WG210 series, but its electronic architecture shares cross-compatibility with several other ZF powershift models. It is directly interchangeable with units in the WG180, WG200, and WG211 transmissions when used with the appropriate valve body. The 6009.092.941 also integrates with the HOUS.FRONT SECT and HOUSING REAR PART to form a sealed electronic enclosure. For mechanical retention, the CYLINDRICAL PIN ensures precise alignment during assembly. Always verify your transmission serial number before ordering.
Related Components
| Part Number | Name | Function |
|---|---|---|
| 4657101039 | TRANSMISSION HOUSING | Main structural casing for gear train and valve body |
| 4657201028 | HOUS.FRONT SECT | Front section housing for control unit and pump |
| 4657201013 | HOUSING REAR PART | Rear enclosure for output shaft and sensors |
| 0631306792 | CYLINDRICAL PIN | Alignment dowel for housing mating surfaces |
| 0636100801 | CAP SCREW | M10 fastener for control unit mounting |
| 4656301148 | FIXING PLATE | Retaining plate for solenoid harness |
| 4657301034 | SCREEN SHEET | Fine mesh filter for valve body inlet |
| 4657301035 | SCREEN SHEET | Coarse mesh filter for return line |
| 0636100803 | CAP SCREW | M8 fastener for housing cover |
| 4681301040 | OIL FEED.HOUSG. | Pressurized oil supply conduit to control unit |
Frequently Asked Questions
Q: Can the 6009.092.941 be repaired, or must it be replaced?
A: Due to the sealed epoxy construction and proprietary firmware, ZF does not recommend field repair. Replacement with this OEM genuine part is the only reliable solution for restoring full transmission functionality.
Q: Does this control unit require programming after installation?
A: Yes. The 6009.092.941 must be flashed with the correct software version for your specific vehicle application using ZF’s diagnostic tool. Installation without programming may result in fault codes or improper shift patterns.
Q: What is the typical lifespan of this control unit?
A: In normal operating conditions with clean fluid and proper thermal management, the unit can last 8-10 years. Premature failure is often linked to fluid contamination or voltage spikes from the vehicle electrical system.
📞 Need this part? Contact our ZF specialists:
Email: info@partszf.com |
Phone: +86 158 2286 3467 |
Request a Quote →
ZF 6009.092.941 CONTROL UNIT – Control Unit RFQ Support
PartsZF helps B2B buyers source ZF 6009.092.941 CONTROL UNIT with fast RFQ support, expert part-number lookup, documentation review, and export coordination. This control unit page is built from confirmed catalog, media, and reference data to reduce sourcing uncertainty for construction machinery transmission parts.
Part-Number Summary
Use ZF number 6009.092.941 when sending your RFQ. PartsZF can review dotted, spaced, and compact number formats against the available product and documentation records.
Application Context
- Documentation reference: 4657054076
- Documentation reference: 4657054116
- Documentation reference available for RFQ review
- Documentation reference: 4657054076
- Illustration section: LOOSE PARTS
Cross Reference Support
If you have an OEM number, old supplier number, or visible marking, include it with your RFQ so PartsZF can compare it with the available records.
Specification Snapshot
| ZF part number | 6009.092.941 |
|---|---|
| Normalized SKU | 6009092941 |
| Part name | CONTROL UNIT |
| Product category | control unit |
| Cross-reference support | Available for RFQ review |
Image and Documentation Notes

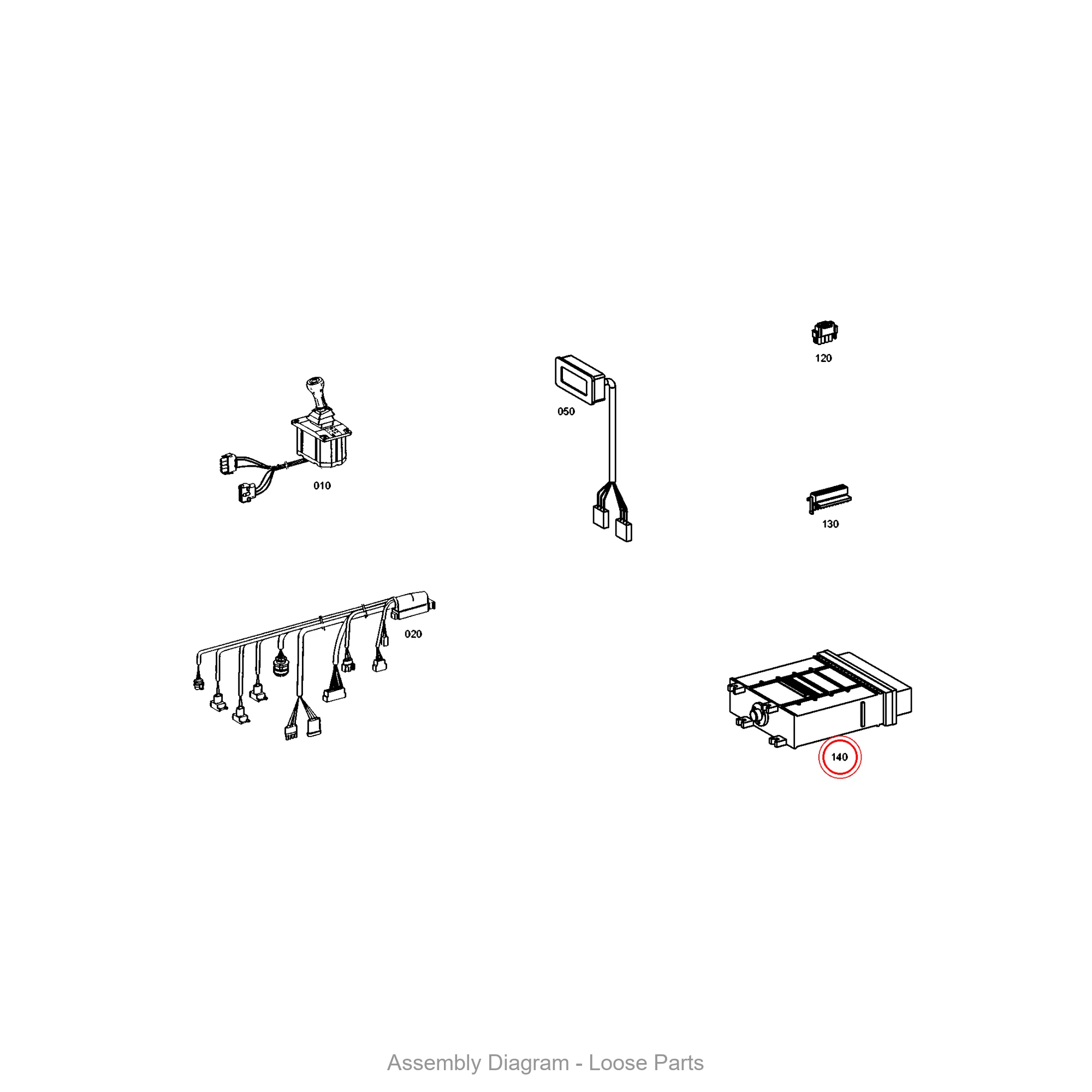

Current product media status: diagram. Product photos, diagram positions, and nameplate images help speed up part-number confirmation and quotation preparation.
