ZF 0501.207.745 BRAKE CAM
ZF Part Number: 0501.207.745 (also written as 0501207745 / 0501.207.745 / 0501 207 745)
OEM Cross Reference / Interchange Numbers
ZF 0501.207.745 (BRAKE CAM) is the original manufacturer part. The following OEM and third-party part numbers are direct cross-references:
| Brand / OEM | Part Number | Type |
|---|---|---|
| 山东临工 | 7200002217 | OEM Cross Ref |
If you are looking for 山东临工 7200002217, the correct ZF original part number is 0501.207.745. This is a 100% ZF replacement, guaranteed to be fully compatible with 山东临工 equipment that uses ZF transmissions.
Compatible ZF Transmission Models
This brake cam is used in the following ZF transmission models:
- ZF 4 WG 150
- ZF 4 WG 180
- ZF 4 WG 180(500)
- ZF 4 WG 200(500)
- ZF 4 WG 200(555)
- ZF 4 WG 200(555/5)
- ZF 6 WG 150
- ZF 6 WG 200(555/5)
Part Location in Assembly
| Section | Position No. | Qty |
|---|---|---|
| Parking Brake | 010/070 | 1 |
Related Parts in Same Assembly
- 0501.003.819 — BRAKE (Qty: 1)
- 4168.030.081 — CONVERTER (Qty: 1)
- 4642.221.149 — SUCTION TUBE (Qty: 1)
- 4642.301.208 — TRANSMISSION HOUSING (Qty: 1)
- 4642.302.161 — INPUT SHAFT (Qty: 1)
- 4642.303.002 — OUTPUT SHAFT (Qty: 1)
- 4642.306.276 — VALVE BLOCK (Qty: 1)
- 4642.306.324 — GASKET (Qty: 1)
Frequently Asked Questions
What is ZF part number 0501.207.745?
ZF 0501.207.745 is an OEM brake cam produced by ZF Friedrichshafen AG, one of the world’s largest automotive suppliers. It is designed for use in ZF powershift transmissions, specifically in models such as 4 WG 150, 4 WG 180, 4 WG 180(500), 4 WG 200(500), 4 WG 200(555). Use this page for ZF part-number lookup and RFQ confirmation, not an aftermarket reproduction.
Which ZF transmissions use 0501.207.745?
This brake cam is found in 8 ZF transmission variants, including: 4 WG 150, 4 WG 180, 4 WG 180(500), 4 WG 200(500), 4 WG 200(555), 4 WG 200(555/5), 6 WG 150, 6 WG 200(555/5). These transmissions are commonly used in wheel loaders, graders, and other heavy construction equipment. Contact us to verify fitment for your specific machine.
Where is ZF 0501.207.745 installed in the transmission?
This brake cam is located in the parking brake area of the transmission. It appears in 19 different assembly configurations. In the service manual, look for position number 010/070 in the Parking Brake section.
How do I look up ZF part 0501.207.745?
This part can be found under several formats: 0501207745 / 0501.207.745 / 0501 207 745. All formats refer to the same ZF component. When ordering, any of these numbers will work. The official ZF catalog uses the dotted format (0501.207.745).
Where can I buy ZF 0501.207.745?
You can purchase ZF 0501.207.745 from PartsZF.com (operated by Tianjin Xiaohang Construction Machinery Co., Ltd). We maintain direct supply channels with ZF and offer worldwide shipping. Contact our parts specialists for current pricing and lead times.
Need this part? Contact our ZF parts specialist for pricing and availability. We ship worldwide with fitment confirmation required.

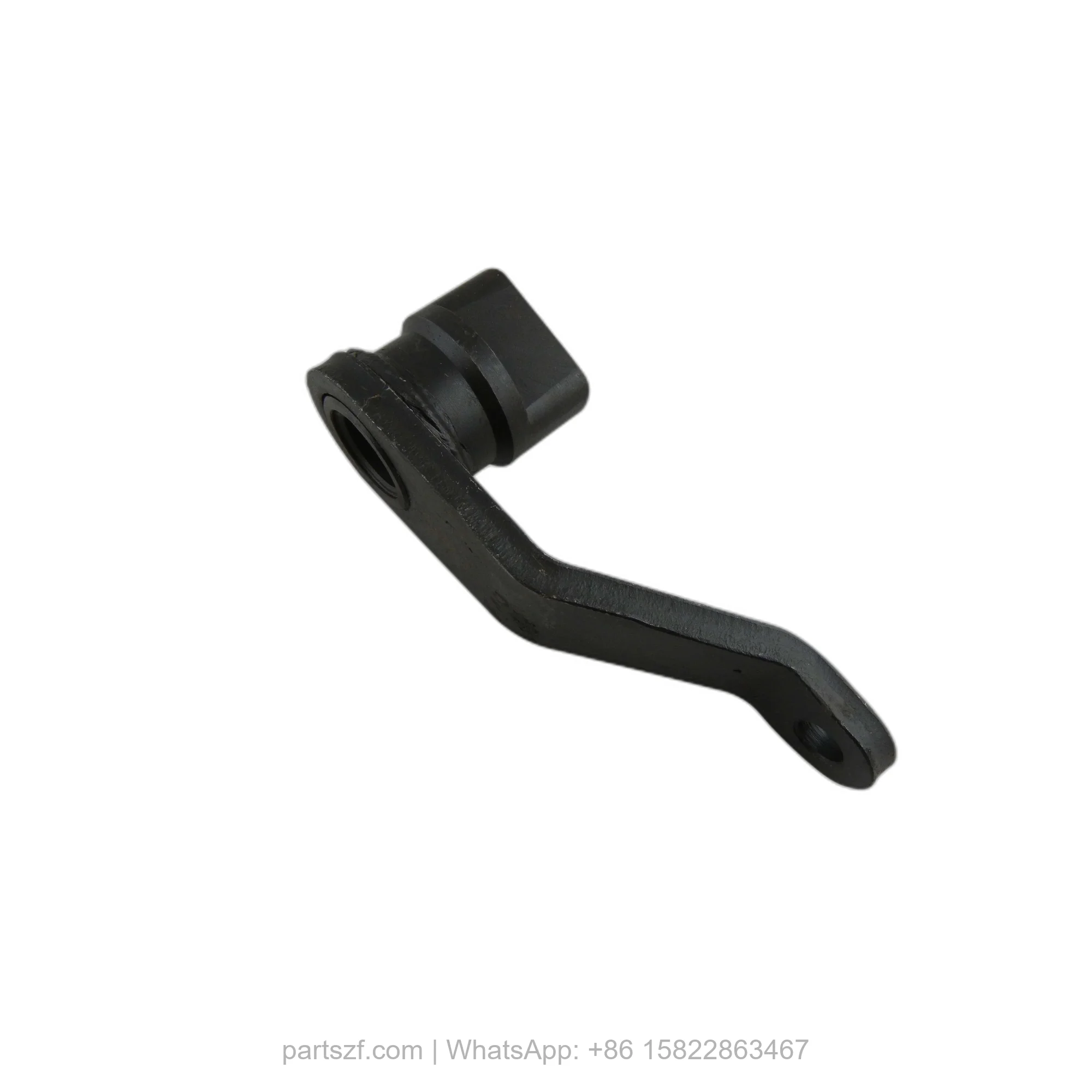

Product Photos

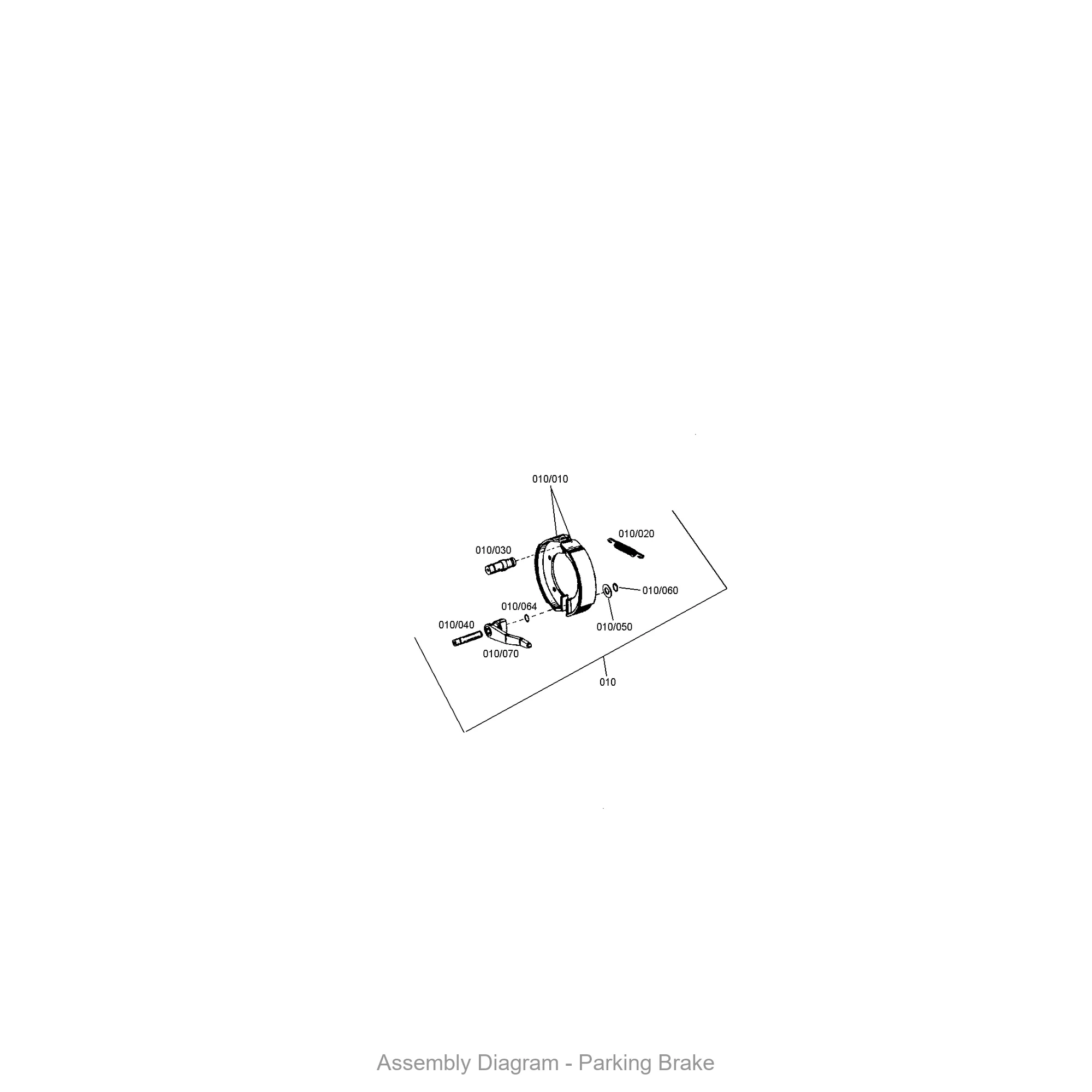

Exploded View / Assembly Diagram
The diagram below shows where ZF 0501.207.745 is located within the transmission assembly.

ZF 0501.207.745 Part Context
ZF 0501.207.745 is listed in the local BOM as BRAKE CAM. Use the exact ZF number when confirming replacement or RFQ details.
Compatibility and Assembly Context
4 WG 150, 4 WG 180, 4 WG 180(500), 4 WG 200(500), 4 WG 200(555), 4 WG 200(555/5), 6 WG 150, 6 WG 200(555/5)
Cross Reference
7200002217
Replacement Scenario
Use this brake cam listing to confirm the part number, assembly section, and image evidence before procurement.
Specification Snapshot
| ZF Number | 0501.207.745 |
|---|---|
| Name | BRAKE CAM |
| Sections | PARKING BRAKE |
Related PartsZF Hubs
FAQ
Can this part be ordered directly from the number?
Use the ZF number as the primary lookup key, then confirm assembly context and cross-reference evidence before purchase.
Does this page replace fitment confirmation?
No. Final fitment should be confirmed against the machine, transmission family, and available BOM or diagram evidence.
