ZF 0501.223.089 HOSE PIPE
ZF Part Number: 0501.223.089 (also written as 0501223089 / 0501.223.089 / 0501 223 089)
OEM Cross Reference / Interchange Numbers
ZF 0501.223.089 (HOSE PIPE) is the original manufacturer part. The following OEM and third-party part numbers are direct cross-references:
| Brand / OEM | Part Number | Type |
|---|---|---|
| 柳工 | SP191313 | OEM Cross Ref |
If you are looking for 柳工 SP191313, the correct ZF original part number is 0501.223.089. This is a 100% genuine ZF replacement, guaranteed to be fully compatible with 柳工 equipment that uses ZF transmissions.
Compatible ZF Transmission Models
This hose pipe is used in the following ZF transmission models:
- ZF 3 WG 260
- ZF 4 WG 258
- ZF 4 WG 260
- ZF 4 WG 260(2)
- ZF 4 WG 260(4)
- ZF 4 WG 308
- ZF 4 WG 310
- ZF 5 WG 260
- ZF 6 WG 258
- ZF 6 WG 260
Part Location in Assembly
| Section | Position No. | Qty |
|---|---|---|
| Oil Pipe | 300 | 1 |
| Oil Pipes | 300 | 1 |
Related Parts in Same Assembly
- 0501.006.922 — BRAKE (Qty: 1)
- 0501.214.082 — SUCTION FILTER (Qty: 1)
- 0501.214.611 — GEAR PUMP (Qty: 1)
- 0501.216.209 — RANGE SELECTOR (Qty: 1)
- 0637.100.196 — PIPE UNION (Qty: 1)
- 4168.037.054 — CONVERTER (Qty: 1)
- 4475.280.011 — SCREW PLUG (Qty: 3)
- 4644.306.558 — VALVE BLOCK (Qty: 1)
Frequently Asked Questions
What is ZF part number 0501.223.089?
ZF 0501.223.089 is an OEM hose pipe produced by ZF Friedrichshafen AG, one of the world’s largest automotive suppliers. It is designed for use in ZF powershift transmissions, specifically in models such as 3 WG 260, 4 WG 258, 4 WG 260, 4 WG 260(2), 4 WG 260(4). This is a genuine ZF component, not an aftermarket reproduction.
Which ZF transmissions use 0501.223.089?
This hose pipe is found in 10 ZF transmission variants, including: 3 WG 260, 4 WG 258, 4 WG 260, 4 WG 260(2), 4 WG 260(4), 4 WG 308, 4 WG 310, 5 WG 260, 6 WG 258, 6 WG 260. These transmissions are commonly used in wheel loaders, graders, and other heavy construction equipment. Contact us to verify fitment for your specific machine.
Where is ZF 0501.223.089 installed in the transmission?
This hose pipe is located in the oil pipe, oil pipes area of the transmission. It appears in 30 different assembly configurations. In the service manual, look for position number 300 in the Oil Pipe section.
How do I look up ZF part 0501.223.089?
This part can be found under several formats: 0501223089 / 0501.223.089 / 0501 223 089. All formats refer to the same genuine ZF component. When ordering, any of these numbers will work. The official ZF catalog uses the dotted format (0501.223.089).
Where can I buy ZF 0501.223.089?
You can purchase genuine ZF 0501.223.089 from PartsZF.com (operated by Tianjin Xiaohang Construction Machinery Co., Ltd). We maintain direct supply channels with ZF and offer worldwide shipping. Contact our parts specialists for current pricing and lead times.
Need this part? Contact our ZF parts specialist for pricing and availability. We ship worldwide with OEM quality guarantee.

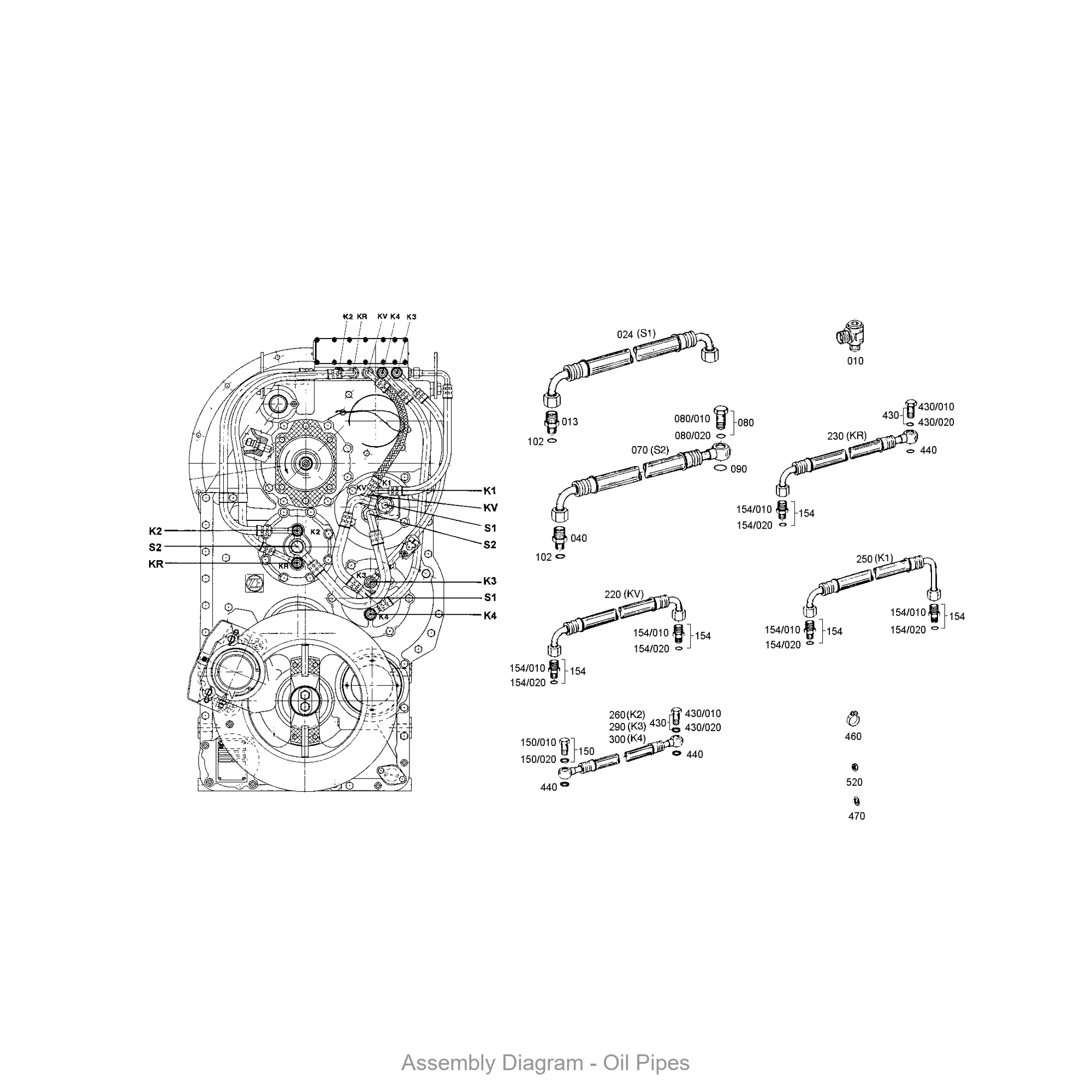

Exploded View / Assembly Diagram
The diagram below shows where ZF 0501.223.089 is located within the transmission assembly.
