Overview
The ZF 4656.159.019 SHIFT SYSTEM is a precision-engineered OEM genuine assembly designed for the WG260 and related heavy-duty transmission series. This critical component governs the hydraulic and mechanical selection of gear ratios, converting driver input into precise clutch and brake actuation within the transmission valve body. As the central command interface, the shift system ensures smooth, reliable power delivery under extreme torque loads. The SKU 4656.159.019 is manufactured to ZF’s original specifications, guaranteeing exact fitment and long service life. When installing this unit, always secure it with the proper 0636115293 螺栓 and 0736300232 螺栓 to maintain correct clamping force and prevent vibration loosening.
Symptoms of Failure
- Erratic or delayed gear engagement: A worn shift system causes hesitation or harsh engagement when moving from Neutral to Drive or Reverse, especially under load.
- Internal hydraulic pressure loss: Degraded seals within the assembly lead to low line pressure, resulting in clutch slip and overheating during operation.
- Oil leaks at the shift shaft bore: Visible transmission fluid seepage around the shift mechanism indicates a compromised O-ring or housing wear, requiring immediate inspection.
- Inability to hold gear under torque: The transmission may unexpectedly drop out of gear on inclines or during hard acceleration, signaling internal shift valve failure.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number (SKU) | 4656.159.019 |
| OEM Reference | ZF 4656.159.019 |
| Material | High-strength aluminum alloy / hardened steel |
| Weight | 2.8 kg (6.2 lbs) |
| Dimensions (L x W x H) | 210 mm x 140 mm x 95 mm |
| Sealing Type | Integrated O-rings & gaskets |
| Operating Pressure | 12-18 bar (174-261 psi) |
Compatibility
This shift system is engineered for the ZF WG260 transmission series and is also compatible with the following models: BP 210, BP 230, WG 110, WG 115, WG 130, WG 131, WG 160, WG 171, WG 190, WG 191, WG 210, WG 211, WG 230, WG 261, WG 310, and WG 311. It is a direct replacement for the original equipment in these heavy-duty powershift transmissions used in construction, agricultural, and material handling machinery. Always verify your transmission model code before ordering.
During replacement, it is strongly recommended to also install a new 0634316523 O-RING on the shift shaft to prevent future leaks, and to inspect the 4475280208 SCREW PLUG for thread damage or corrosion.
Related Components
| Part Number | Name | Function |
|---|---|---|
| 0636115293 | 螺栓 | Mounting bolt for shift system housing |
| 0736300232 | 螺栓 | Secondary fastening bolt for valve body |
| 4475280208 | SCREW PLUG | Seals hydraulic test port on shift assembly |
| 0634316523 | O-RING | Seals shift shaft bore against fluid loss |
| 0630361026 | SEALING CAP | Protects shift linkage from debris ingress |
| 0501214611 | 齿轮泵 | Hydraulic gear pump supplying shift pressure |
| 0634313945 | O形圈 | Internal seal for shift valve spool |
| 0501322534 | TEMPERATURE SENSOR | Monitors transmission fluid temperature |
| 0634313366 | O-RING | Seals temperature sensor port |
| 4646130044 | ENGINE CONNECTION | Interface flange between engine and transmission |
ZF 4656.159.019 SHIFT SYSTEM – Fast RFQ Support
PartsZF helps B2B buyers source ZF 4656.159.019 SHIFT SYSTEM with expert part-number lookup, documentation review, and export coordination. As an authorized ZF parts distributor and focused ZF transmission parts supplier, we help reduce sourcing uncertainty before purchase.
ZF Part Number
Use ZF part number 4656.159.019 when sending an RFQ. The normalized lookup number is 4656.159.019, and our team can check dotted, spaced, and compact number formats.
Application or Assembly Context
Use this page for Shift System / Control System sourcing inquiries. Send the machine model, transmission nameplate, removed-part photos, or visible markings so PartsZF can prepare a focused RFQ review.
Cross Reference
Use ZF 4656.159.019 as the primary lookup key. If you have an OEM number or an old supplier number, include it with your RFQ and our team will review it against the available documentation.
Replacement / Failure Scenario
This SHIFT SYSTEM is relevant for service teams comparing a removed component, preparing a transmission repair quotation, or matching a diagram position before purchase. PartsZF supports WG / BP / HL / ERGOPOWER transmission parts inquiries for construction machinery buyers.
Specification Table
| ZF part number | 4656.159.019 |
|---|---|
| Normalized number | 4656.159.019 |
| Part name | SHIFT SYSTEM |
| Group | Shift System / Control System |
| BOM occurrence count | 0 |
| Illustration count | 0 |
| Weight | 6.0 |
Image or Diagram Note

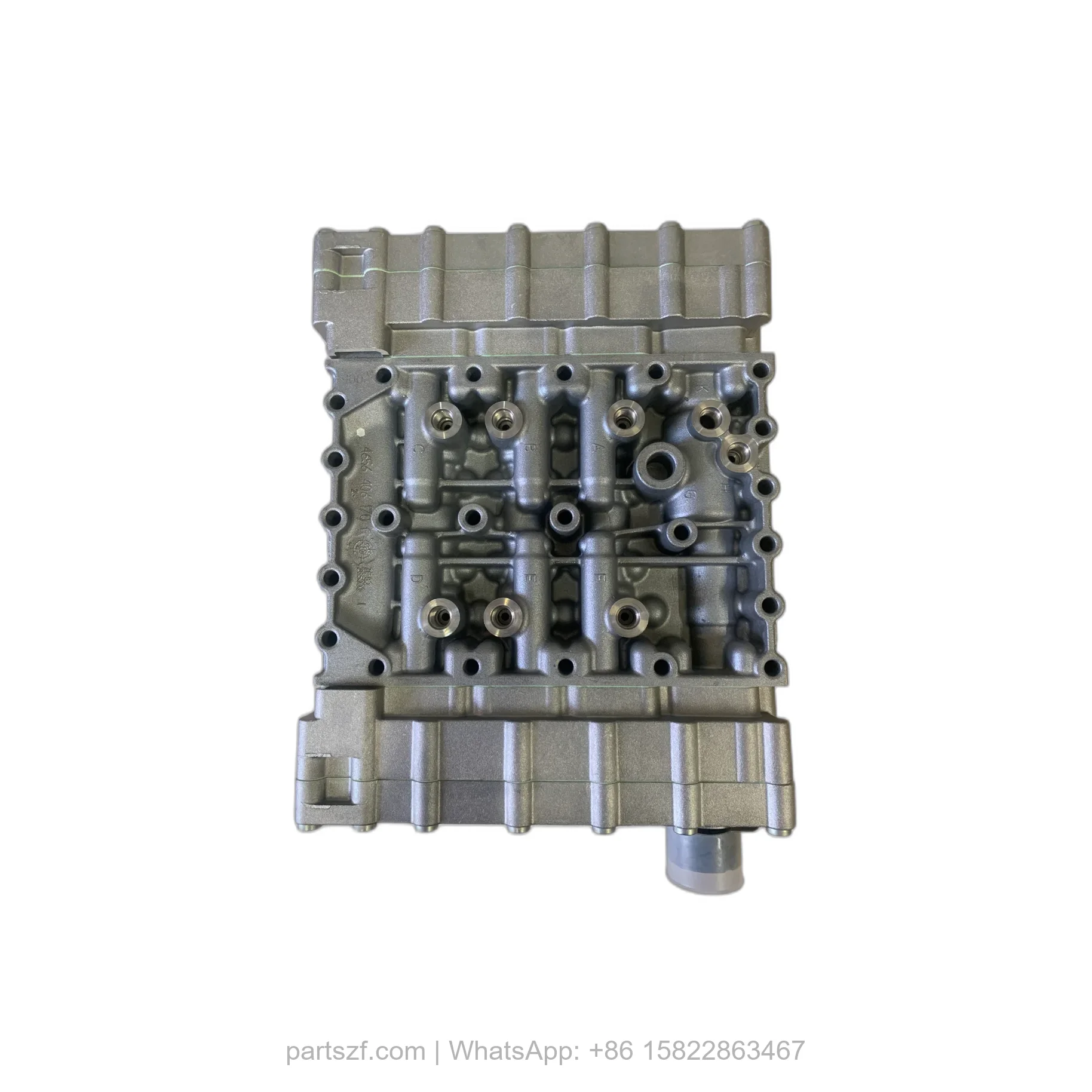

Current image support for this product is real photo. Share product photos, nameplate photos, or diagram positions with your RFQ to speed up part-number confirmation.
RFQ Confirmation Checklist
- ZF part number or OEM cross-reference number
- Transmission family or assembly number
- Machine model, serial number, or visible nameplate photo
- Removed-part photo and diagram position if available
- Quantity, destination, and documentation requirements
- Final selection is confirmed by exact part number, machine context, and available documentation.
