ZF 0501.298.562 BRAKE LINING KIT
ZF Part Number: 0501.298.562 (also written as 0501298562 / 0501.298.562 / 0501 298 562)
OEM Cross Reference / Interchange Numbers
ZF 0501.298.562 (BRAKE LINING KIT) is the original manufacturer part. The following OEM and third-party part numbers are direct cross-references:
| Brand / OEM | Part Number | Type |
|---|---|---|
| 徐工铲运RZ | 860337651 | OEM Cross Ref |
| 徐工铲运 | 860157047 | OEM Cross Ref |
| 柳工 | SP155054 | OEM Cross Ref |
This ZF part (0501.298.562) directly replaces the following OEM numbers: 徐工铲运RZ: 860337651; 徐工铲运: 860157047; 柳工: SP155054. All listed cross-reference numbers are confirmed compatible with ZF 0501.298.562.
Compatible ZF Transmission Models
This brake lining kit is used in the following ZF transmission models:
- ZF 4 WG 115
- ZF 4 WG 200(555/5)
- ZF 6 WG 115
- ZF 6 WG 158
- ZF 6 WG 200
- ZF 6 WG 200(555/5)
Part Location in Assembly
| Section | Position No. | Qty |
|---|---|---|
| Accessories | 060/070 | 1 |
| Loose Parts | 010/070 | 1 |
| Parking Brake | 010/070 | 1 |
Related Parts in Same Assembly
- 0501.009.459 — CONVERTER (Qty: 1)
- 0501.216.078 — BRAKE (Qty: 1)
- 0501.317.160 — INDUCTIVE SENSOR (Qty: 1)
- 4644.221.197 — SUCTION TUBE (Qty: 1)
- 4644.301.407 — HOUSING (Qty: 1)
- 4644.302.188 — INPUT SHAFT (Qty: 1)
- 4644.303.216 — OUTPUT SHAFT (Qty: 1)
- 4644.306.362 — GASKET (Qty: 1)
Frequently Asked Questions
What is ZF part number 0501.298.562?
ZF 0501.298.562 is an OEM brake lining kit produced by ZF Friedrichshafen AG, one of the world’s largest automotive suppliers. It is designed for use in ZF powershift transmissions, specifically in models such as 4 WG 115, 4 WG 200(555/5), 6 WG 115, 6 WG 158, 6 WG 200. This is a genuine ZF component, not an aftermarket reproduction.
Which ZF transmissions use 0501.298.562?
This brake lining kit is found in 6 ZF transmission variants, including: 4 WG 115, 4 WG 200(555/5), 6 WG 115, 6 WG 158, 6 WG 200, 6 WG 200(555/5). These transmissions are commonly used in wheel loaders, graders, and other heavy construction equipment. Contact us to verify fitment for your specific machine.
Where is ZF 0501.298.562 installed in the transmission?
This brake lining kit is located in the parking brake area of the transmission. It appears in 30 different assembly configurations. In the service manual, look for position number 060/070 in the Accessories section.
How do I look up ZF part 0501.298.562?
This part can be found under several formats: 0501298562 / 0501.298.562 / 0501 298 562. All formats refer to the same genuine ZF component. When ordering, any of these numbers will work. The official ZF catalog uses the dotted format (0501.298.562).
Where can I buy ZF 0501.298.562?
You can purchase genuine ZF 0501.298.562 from PartsZF.com (operated by Tianjin Xiaohang Construction Machinery Co., Ltd). We maintain direct supply channels with ZF and offer worldwide shipping. Contact our parts specialists for current pricing and lead times.
Need this part? Contact our ZF parts specialist for pricing and availability. We ship worldwide with OEM quality guarantee.

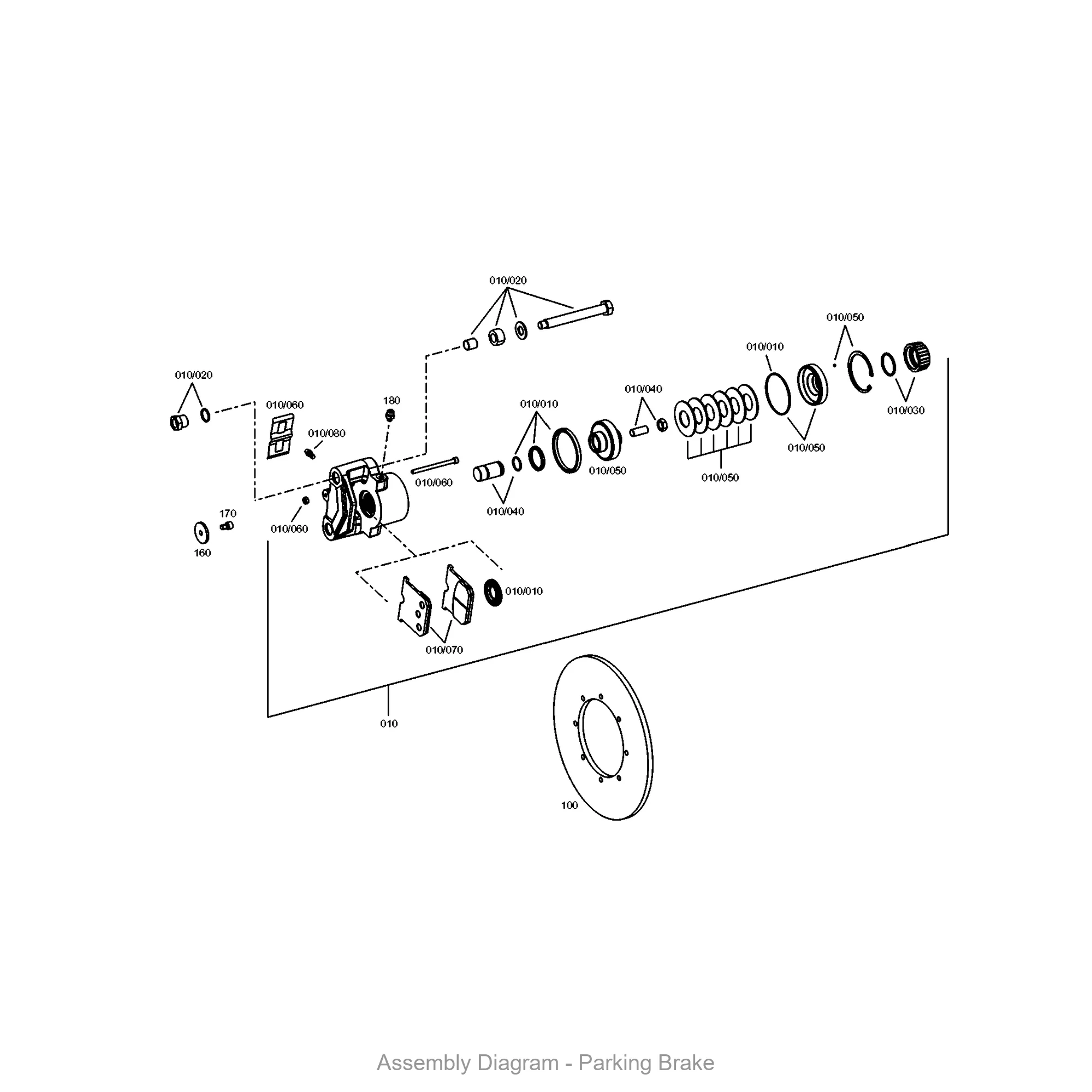

Exploded View / Assembly Diagram
The diagram below shows where ZF 0501.298.562 is located within the transmission assembly.
