ZF 0501.216.078 BRAKE
ZF Part Number: 0501.216.078 (also written as 0501216078 / 0501.216.078 / 0501 216 078)
OEM Cross Reference / Interchange Numbers
ZF 0501.216.078 (BRAKE) is the original manufacturer part. The following OEM and third-party part numbers are direct cross-references:
| Brand / OEM | Part Number | Type |
|---|---|---|
| 徐工铲运RZ | 860151870 | OEM Cross Ref |
| 柳工 | SP155052 | OEM Cross Ref |
This ZF part (0501.216.078) directly replaces the following OEM numbers: 徐工铲运RZ: 860151870; 柳工: SP155052. All listed cross-reference numbers are confirmed compatible with ZF 0501.216.078.
Compatible ZF Transmission Models
This brake is used in the following ZF transmission models:
- ZF 4 WG 115
- ZF 4 WG 200(555/5)
- ZF 6 WG 115
- ZF 6 WG 158
- ZF 6 WG 200
- ZF 6 WG 200(555/5)
Part Location in Assembly
| Section | Position No. | Qty |
|---|---|---|
| Accessories | 060 | 1 |
| Loose Parts | 010 | 1 |
| Parking Brake | 010 | 1 |
Related Parts in Same Assembly
- 0501.009.459 — CONVERTER (Qty: 1)
- 0501.317.160 — INDUCTIVE SENSOR (Qty: 1)
- 4644.221.197 — SUCTION TUBE (Qty: 1)
- 4644.301.407 — HOUSING (Qty: 1)
- 4644.302.188 — INPUT SHAFT (Qty: 1)
- 4644.303.216 — OUTPUT SHAFT (Qty: 1)
- 4644.306.362 — GASKET (Qty: 1)
- 4644.306.558 — VALVE BLOCK (Qty: 1)
Supersessions
0501.216.078 → 0501.216.078
Frequently Asked Questions
What is ZF part number 0501.216.078?
ZF 0501.216.078 is an OEM brake produced by ZF Friedrichshafen AG, one of the world’s largest automotive suppliers. It is designed for use in ZF powershift transmissions, specifically in models such as 4 WG 115, 4 WG 200(555/5), 6 WG 115, 6 WG 158, 6 WG 200. This is a genuine ZF component, not an aftermarket reproduction.
Which ZF transmissions use 0501.216.078?
This brake is found in 6 ZF transmission variants, including: 4 WG 115, 4 WG 200(555/5), 6 WG 115, 6 WG 158, 6 WG 200, 6 WG 200(555/5). These transmissions are commonly used in wheel loaders, graders, and other heavy construction equipment. Contact us to verify fitment for your specific machine.
Where is ZF 0501.216.078 installed in the transmission?
This brake is located in the parking brake area of the transmission. It appears in 30 different assembly configurations. In the service manual, look for position number 060 in the Accessories section.
How do I look up ZF part 0501.216.078?
This part can be found under several formats: 0501216078 / 0501.216.078 / 0501 216 078. All formats refer to the same genuine ZF component. When ordering, any of these numbers will work. The official ZF catalog uses the dotted format (0501.216.078).
Where can I buy ZF 0501.216.078?
You can purchase genuine ZF 0501.216.078 from PartsZF.com (operated by Tianjin Xiaohang Construction Machinery Co., Ltd). We maintain direct supply channels with ZF and offer worldwide shipping. Contact our parts specialists for current pricing and lead times.
Need this part? Contact our ZF parts specialist for pricing and availability. We ship worldwide with OEM quality guarantee.

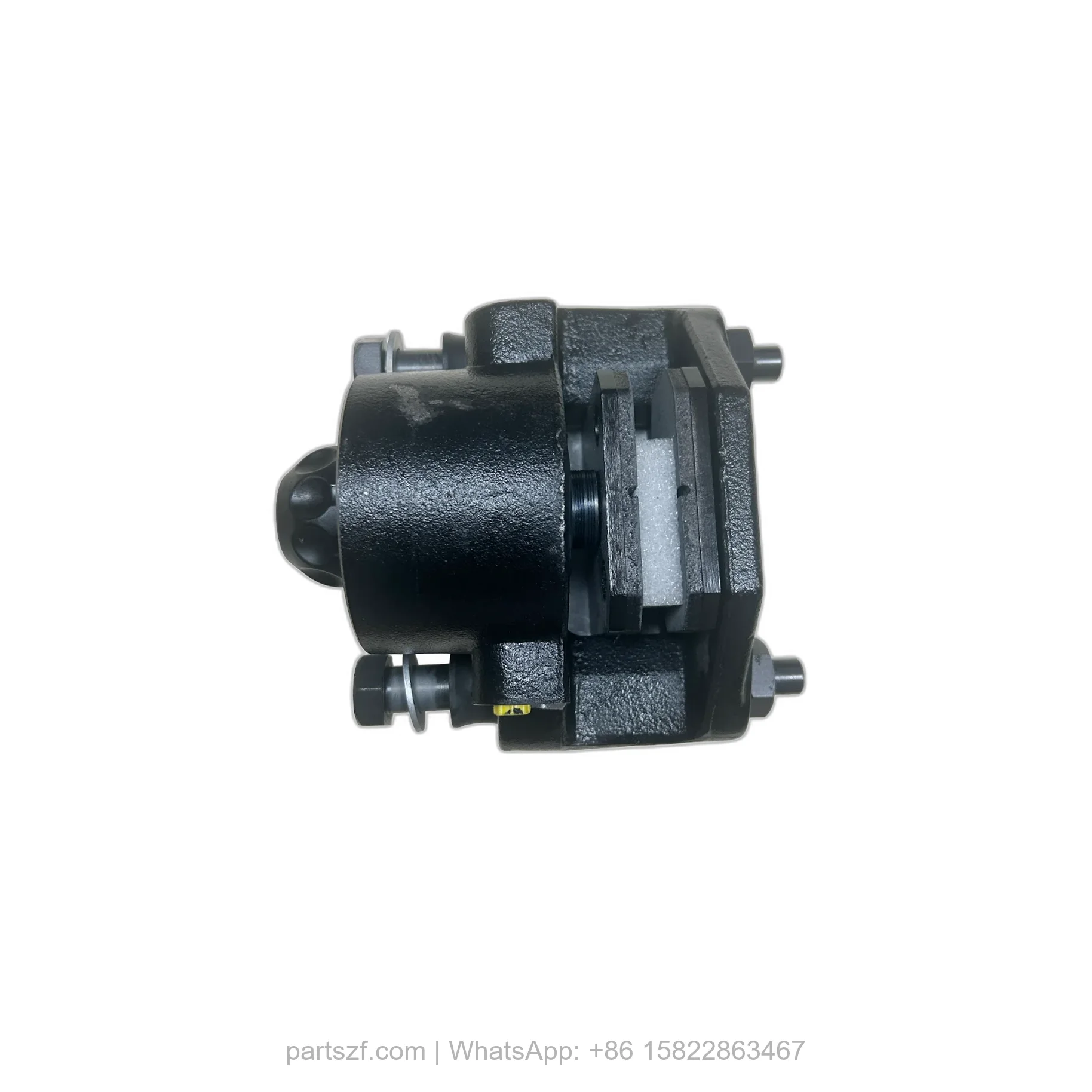

Product Photos

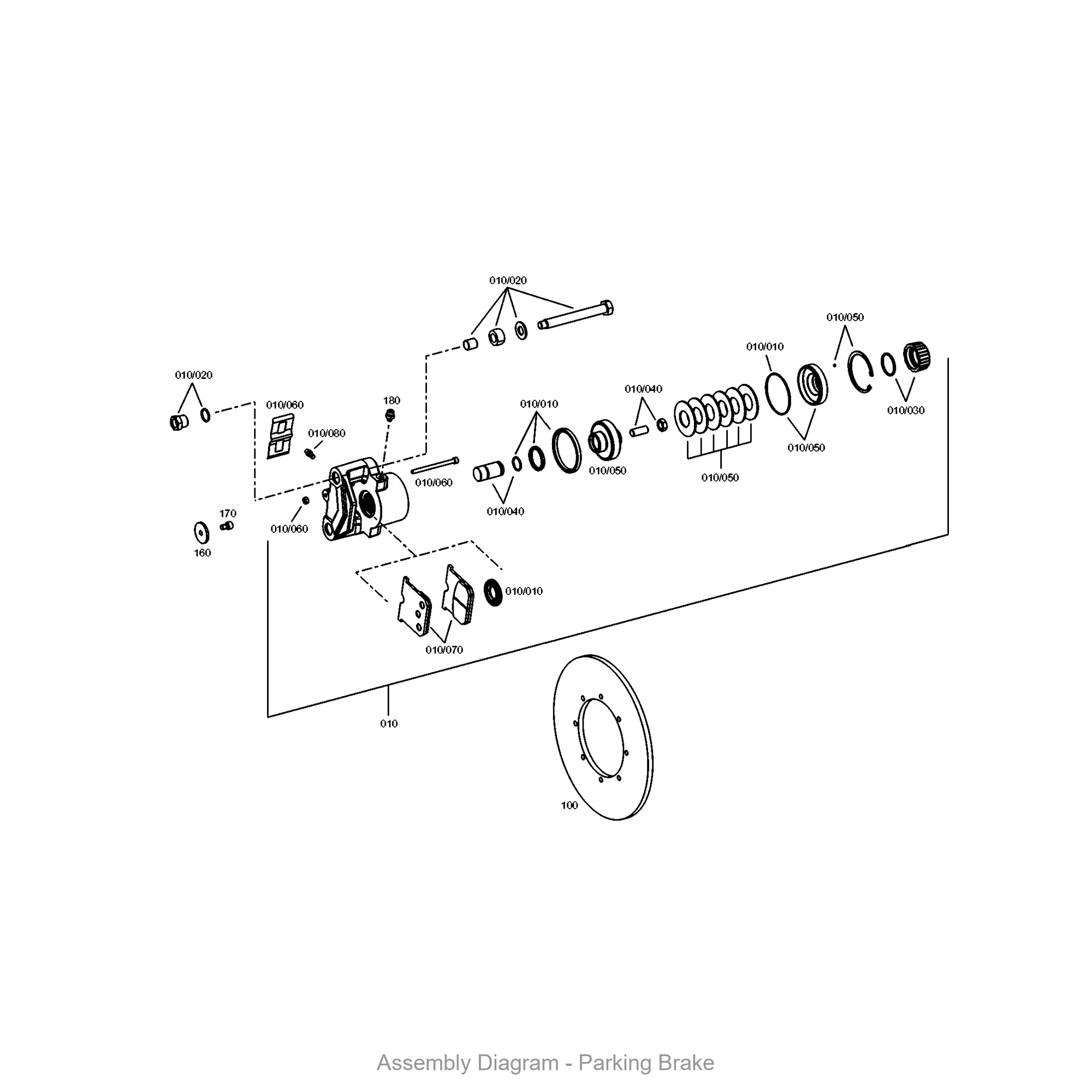

Exploded View / Assembly Diagram
The diagram below shows where ZF 0501.216.078 is located within the transmission assembly.
ZF 0501.216.078 Part Context
ZF 0501.216.078 is listed in the local BOM as BRAKE. Use the exact ZF number when confirming replacement or RFQ details.
Compatibility and Assembly Context
4 WG 115, 4 WG 200(555/5), 6 WG 115, 6 WG 158, 6 WG 200, 6 WG 200(555/5)
Cross Reference
860151870, SP155052
Replacement Scenario
Use this brake listing to confirm the part number, assembly section, and image evidence before procurement.
Specification Snapshot
| ZF Number | 0501.216.078 |
|---|---|
| Name | BRAKE |
| Sections | PARKING BRAKE |
Related PartsZF Hubs
FAQ
Can this part be ordered directly from the number?
Use the ZF number as the primary lookup key, then confirm assembly context and cross-reference evidence before purchase.
Does this page replace fitment confirmation?
No. Final fitment should be confirmed against the machine, transmission family, and available BOM or diagram evidence.
