ZF 0501.307.817 PIN
ZF Part Number: 0501.307.817 (also written as 0501307817 / 0501.307.817 / 0501 307 817)
OEM Cross Reference / Interchange Numbers
ZF 0501.307.817 (PIN) is the original manufacturer part. The following OEM and third-party part numbers are direct cross-references:
| Brand / OEM | Part Number | Type |
|---|---|---|
| 山东临工 | 7200002213 | OEM Cross Ref |
If you are looking for 山东临工 7200002213, the correct ZF original part number is 0501.307.817. This is a 100% genuine ZF replacement, guaranteed to be fully compatible with 山东临工 equipment that uses ZF transmissions.
Compatible ZF Transmission Models
This pin is used in the following ZF transmission models:
- ZF 3 WG 100(400)
- ZF 3 WG 100(500)
- ZF 4 WG 100(500)
- ZF 4 WG 150
- ZF 4 WG 180
- ZF 4 WG 180(500)
- ZF 4 WG 200(500)
- ZF 4 WG 200(555)
- ZF 4 WG 200(555/5)
- ZF 6 WG 150
- ZF 6 WG 200(555/5)
Part Location in Assembly
| Section | Position No. | Qty |
|---|---|---|
| Parking Brake | 010/040 | 1 |
| Parking Brake | 010/140 | 1 |
Related Parts in Same Assembly
- 0501.003.819 — BRAKE (Qty: 1)
- 4168.030.081 — CONVERTER (Qty: 1)
- 4642.221.149 — SUCTION TUBE (Qty: 1)
- 4642.301.208 — TRANSMISSION HOUSING (Qty: 1)
- 4642.302.161 — INPUT SHAFT (Qty: 1)
- 4642.303.002 — OUTPUT SHAFT (Qty: 1)
- 4642.306.276 — VALVE BLOCK (Qty: 1)
- 4642.306.324 — GASKET (Qty: 1)
Frequently Asked Questions
What is ZF part number 0501.307.817?
ZF 0501.307.817 is an OEM pin produced by ZF Friedrichshafen AG, one of the world’s largest automotive suppliers. It is designed for use in ZF powershift transmissions, specifically in models such as 3 WG 100(400), 3 WG 100(500), 4 WG 100(500), 4 WG 150, 4 WG 180. This is a genuine ZF component, not an aftermarket reproduction.
Which ZF transmissions use 0501.307.817?
This pin is found in 11 ZF transmission variants, including: 3 WG 100(400), 3 WG 100(500), 4 WG 100(500), 4 WG 150, 4 WG 180, 4 WG 180(500), 4 WG 200(500), 4 WG 200(555), 4 WG 200(555/5), 6 WG 150. These transmissions are commonly used in wheel loaders, graders, and other heavy construction equipment. Contact us to verify fitment for your specific machine.
Where is ZF 0501.307.817 installed in the transmission?
This pin is located in the parking brake area of the transmission. It appears in 30 different assembly configurations. In the service manual, look for position number 010/040 in the Parking Brake section.
How do I look up ZF part 0501.307.817?
This part can be found under several formats: 0501307817 / 0501.307.817 / 0501 307 817. All formats refer to the same genuine ZF component. When ordering, any of these numbers will work. The official ZF catalog uses the dotted format (0501.307.817).
Where can I buy ZF 0501.307.817?
You can purchase genuine ZF 0501.307.817 from PartsZF.com (operated by Tianjin Xiaohang Construction Machinery Co., Ltd). We maintain direct supply channels with ZF and offer worldwide shipping. Contact our parts specialists for current pricing and lead times.
Need this part? Contact our ZF parts specialist for pricing and availability. We ship worldwide with OEM quality guarantee.

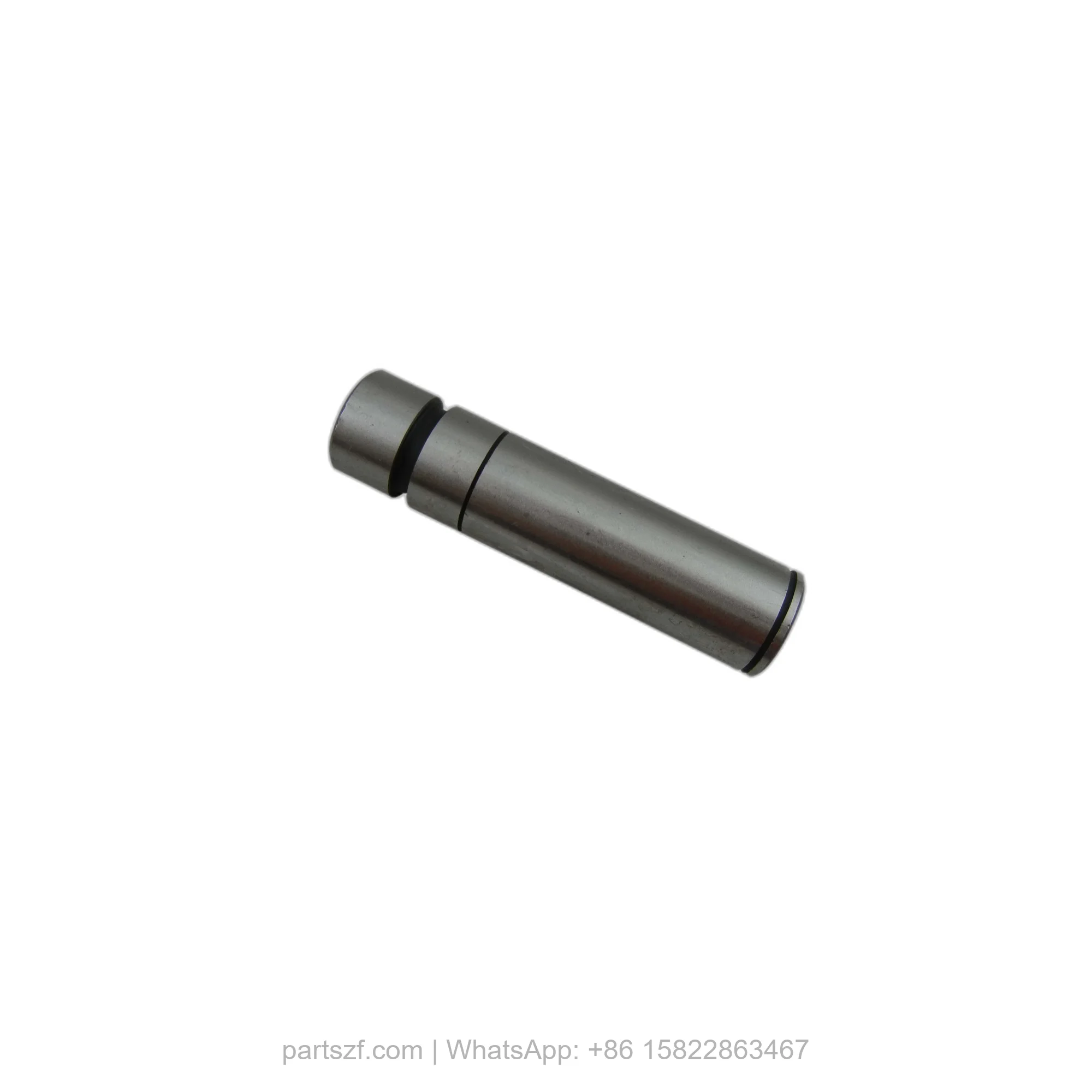

Product Photos

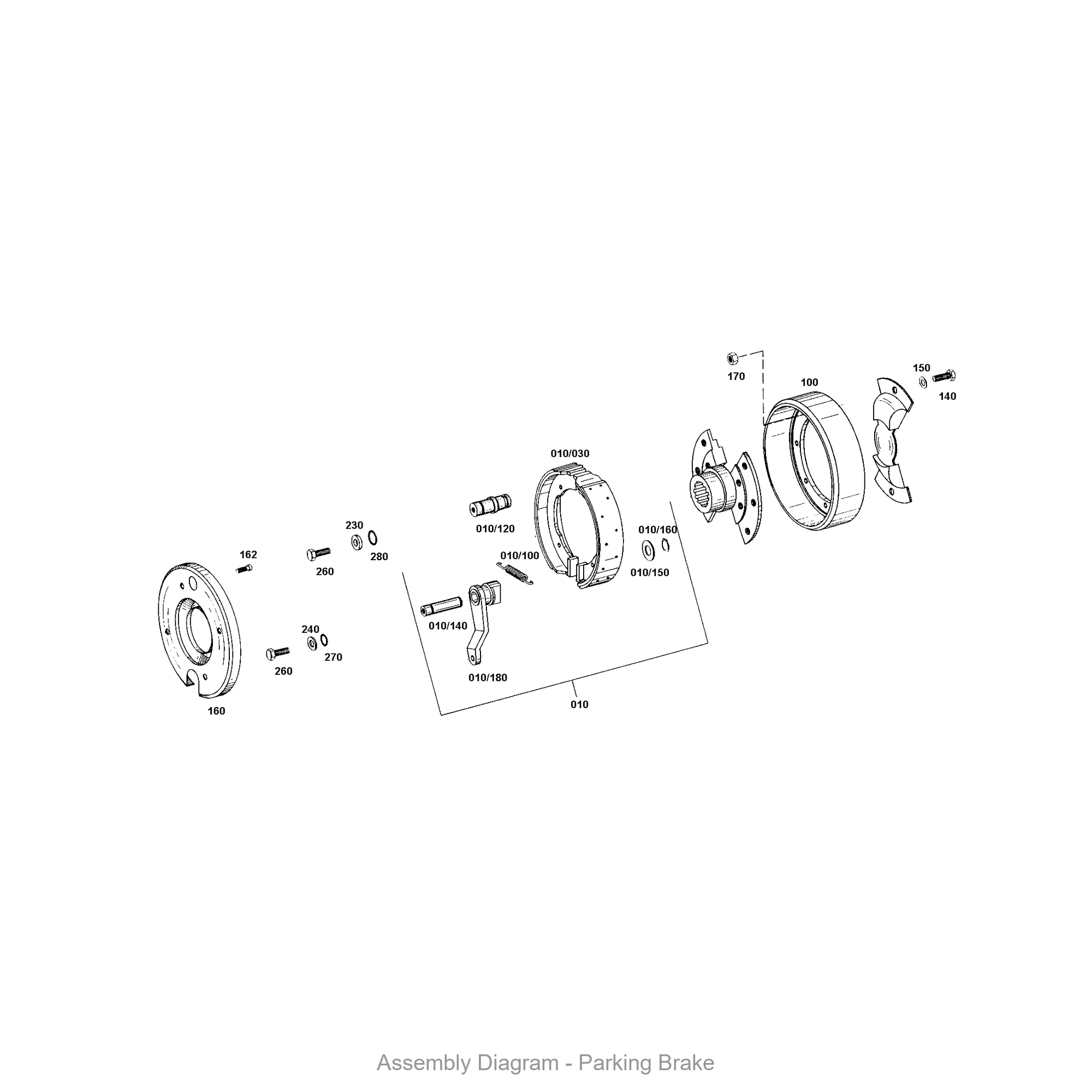

Exploded View / Assembly Diagram
The diagram below shows where ZF 0501.307.817 is located within the transmission assembly.
