Overview

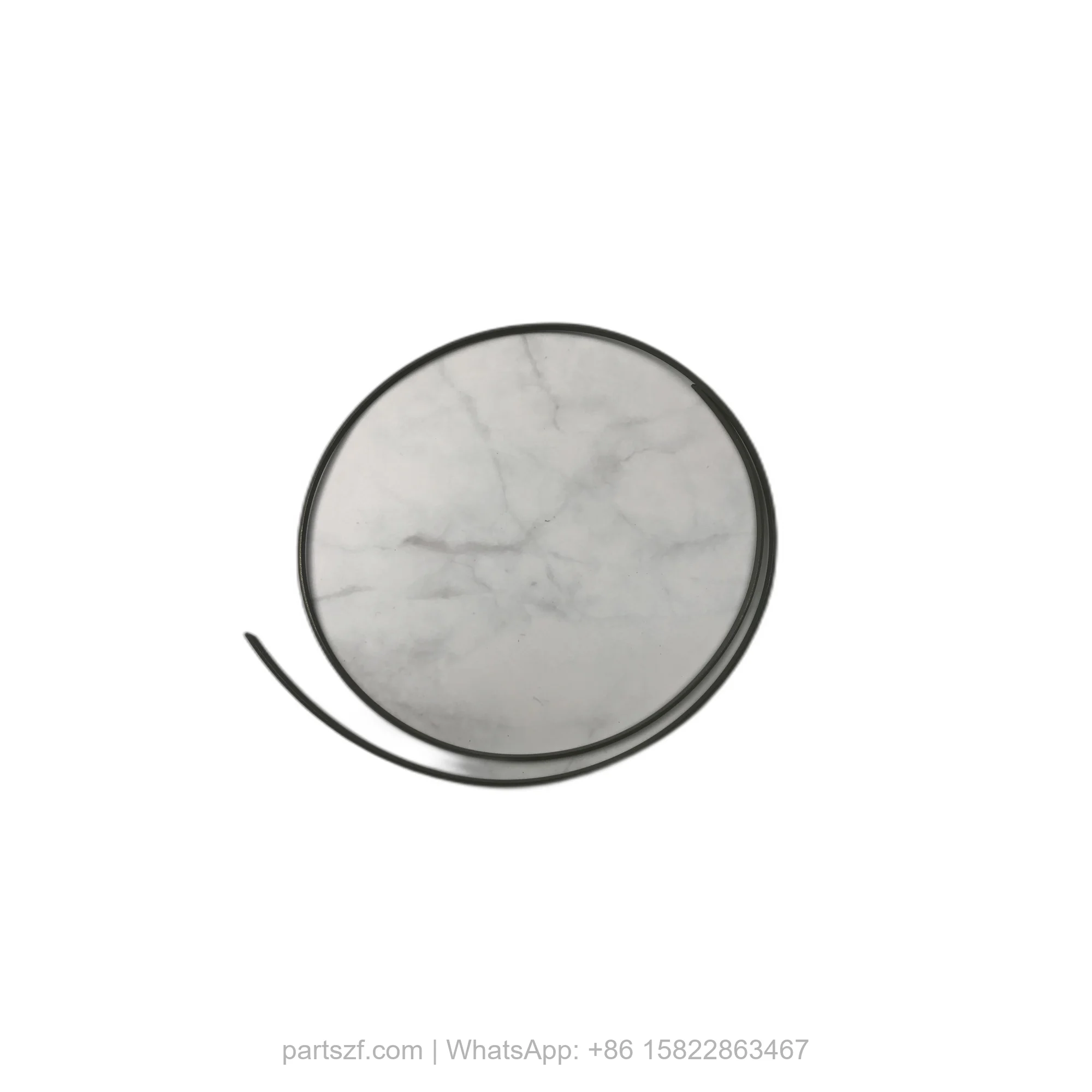

The ZF 0501.312.577 导环 (Guide Ring) is a precision-engineered component designed to maintain axial alignment and control fluid flow within the hydraulic control system of heavy-duty ZF transmissions. This OEM genuine part, identified by SKU 0501.312.577, sits directly on the valve body or clutch piston assembly, acting as a critical sealing and guiding interface. By ensuring proper clearance between rotating and stationary elements, it prevents cross-leakage of transmission fluid and stabilizes shift timing. Constructed from high-strength, wear-resistant alloy steel, this guide ring is essential for maintaining the hydraulic integrity required in construction machinery applications.
Symptoms of Failure
When the ZF 0501.312.577 guide ring wears beyond tolerance, operators will notice distinct performance degradation. Common failure indicators include:
- Erratic or delayed gear engagement: A worn guide ring disrupts pilot pressure, causing hesitation when shifting from neutral to drive or reverse under load.
- Internal hydraulic oil leaks: Degraded sealing surfaces allow pressurized ATF to bypass the ring, leading to visible oil seepage around the transmission bell housing or valve body cover.
- Torque converter shudder: Insufficient guide ring support can cause the clutch pack to slip intermittently, producing a vibration during low-speed maneuvering in construction equipment.
- Overheating transmission fluid: Increased internal leakage forces the pump to work harder, raising sump temperatures above 120°C (248°F) during normal operation.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number / SKU | 0501.312.577 |
| Outer Diameter (OD) | 82.5 mm ± 0.1 mm |
| Inner Diameter (ID) | 68.0 mm ± 0.05 mm |
| Thickness | 4.2 mm |
| Material | Case-hardened alloy steel (DIN 1.7131) |
| Weight | 0.085 kg (85 grams) |
| OEM Reference | ZF 0501.312.577 (Genuine) |
| Surface Finish | Ground, Rz ≤ 6.3 µm |
Compatibility
This guide ring is specifically designed for ZF’s modular powershift transmission series commonly deployed in wheel loaders, excavators, and telehandlers. Based on its dimensional profile and hydraulic application, the 0501.312.577 is compatible with the following ZF transmission models:
- ZF WG180 (4-speed powershift, used in medium wheel loaders)
- ZF WG200 (5-speed version, common in heavy excavators)
- ZF 4WG-200 (integrated torque converter variant)
- ZF 5WG-210 (high-torque off-highway application)
Always verify the guide ring’s position within the clutch pack or valve body assembly before installation. For precise fitment confirmation, cross-reference your transmission serial number with ZF’s official parts catalog.
