ZF 0501.317.159 INDUCTIVE SENSOR
ZF Part Number: 0501.317.159 (also written as 0501317159 / 0501.317.159 / 0501 317 159)
OEM Cross Reference / Interchange Numbers
ZF 0501.317.159 (INDUCTIVE SENSOR) is the original manufacturer part. The following OEM and third-party part numbers are direct cross-references:
| Brand / OEM | Part Number | Type |
|---|---|---|
| 徐工筑路 | 860546802 | OEM Cross Ref |
| 柳工 | SP100016 | OEM Cross Ref |
This ZF part (0501.317.159) directly replaces the following OEM numbers: 徐工筑路: 860546802; 柳工: SP100016. All listed cross-reference numbers are confirmed compatible with ZF 0501.317.159.
Compatible ZF Transmission Models
This inductive sensor is used in the following ZF transmission models:
- ZF 4 WG 65
- ZF 4 WG 65 II(D)
Part Location in Assembly
| Section | Position No. | Qty |
|---|---|---|
| Inductive Sensor | 010 | 1 |
| Inductive Sensor | 030 | 1 |
| Inductive Sensor | 040 | 1 |
| Inductive Sensor | 041 | 1 |
| Inductive Sensor | 050 | 1 |
| Inductive Sensor | 25.010 | 3 |
| Inductive Sensor | 25.030 | 3 |
| Speedometer | 040 | 1 |
| Speedometer | 07.230 | 1 |
| Speedometer | 230 | 1 |
Related Parts in Same Assembly
- 4616.101.059 — TRANSMISSION HOUSING (Qty: 1)
- 4616.101.401 — TRANSMISSION HOUSING (Qty: 1)
- 4616.102.021 — INPUT (Qty: 1)
- 4616.102.406 — INPUT (Qty: 1)
- 4616.103.048 — OUTPUT (Qty: 1)
- 4616.105.014 — OUTPUT (Qty: 1)
- 4616.106.014 — SHIFT SYSTEM (Qty: 1)
- 4616.159.018 — SHIFT SYSTEM (Qty: 1)
Frequently Asked Questions
What is ZF part number 0501.317.159?
ZF 0501.317.159 is an OEM inductive sensor produced by ZF Friedrichshafen AG, one of the world’s largest automotive suppliers. It is designed for use in ZF powershift transmissions, specifically in models such as 4 WG 65, 4 WG 65 II(D). Use this page for ZF part-number lookup and RFQ confirmation, not an aftermarket reproduction.
Which ZF transmissions use 0501.317.159?
This inductive sensor is found in 2 ZF transmission variants, including: 4 WG 65, 4 WG 65 II(D). These transmissions are commonly used in wheel loaders, graders, and other heavy construction equipment. Contact us to verify fitment for your specific machine.
Where is ZF 0501.317.159 installed in the transmission?
This inductive sensor is located in the inductive sensor area of the transmission. It appears in 30 different assembly configurations. In the service manual, look for position number 010 in the Inductive Sensor section.
How do I look up ZF part 0501.317.159?
This part can be found under several formats: 0501317159 / 0501.317.159 / 0501 317 159. All formats refer to the same ZF component. When ordering, any of these numbers will work. The official ZF catalog uses the dotted format (0501.317.159).
Where can I buy ZF 0501.317.159?
You can purchase ZF 0501.317.159 from PartsZF.com (operated by Tianjin Xiaohang Construction Machinery Co., Ltd). We maintain direct supply channels with ZF and offer worldwide shipping. Contact our parts specialists for current pricing and lead times.
Need this part? Contact our ZF parts specialist for pricing and availability. We ship worldwide with fitment confirmation required.

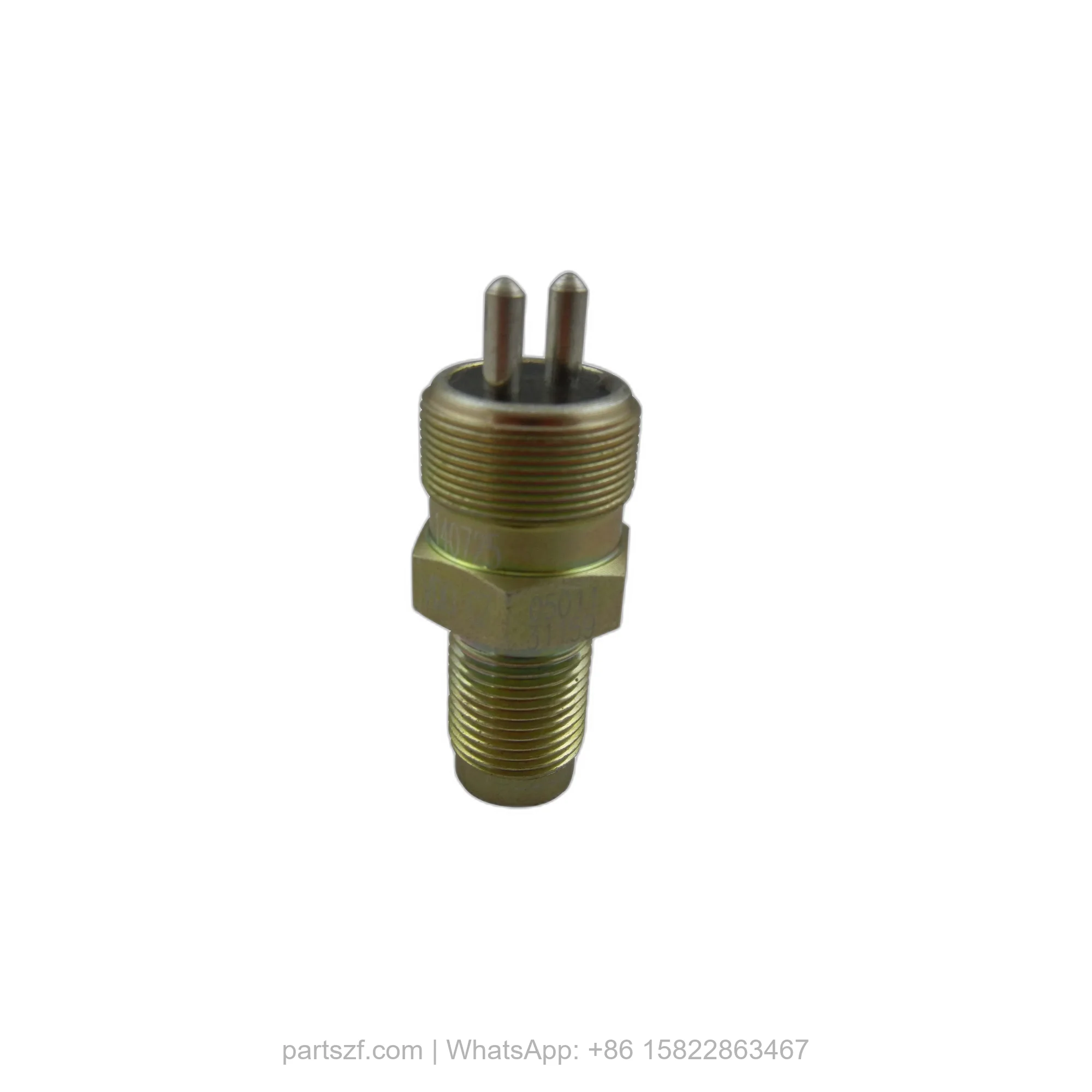

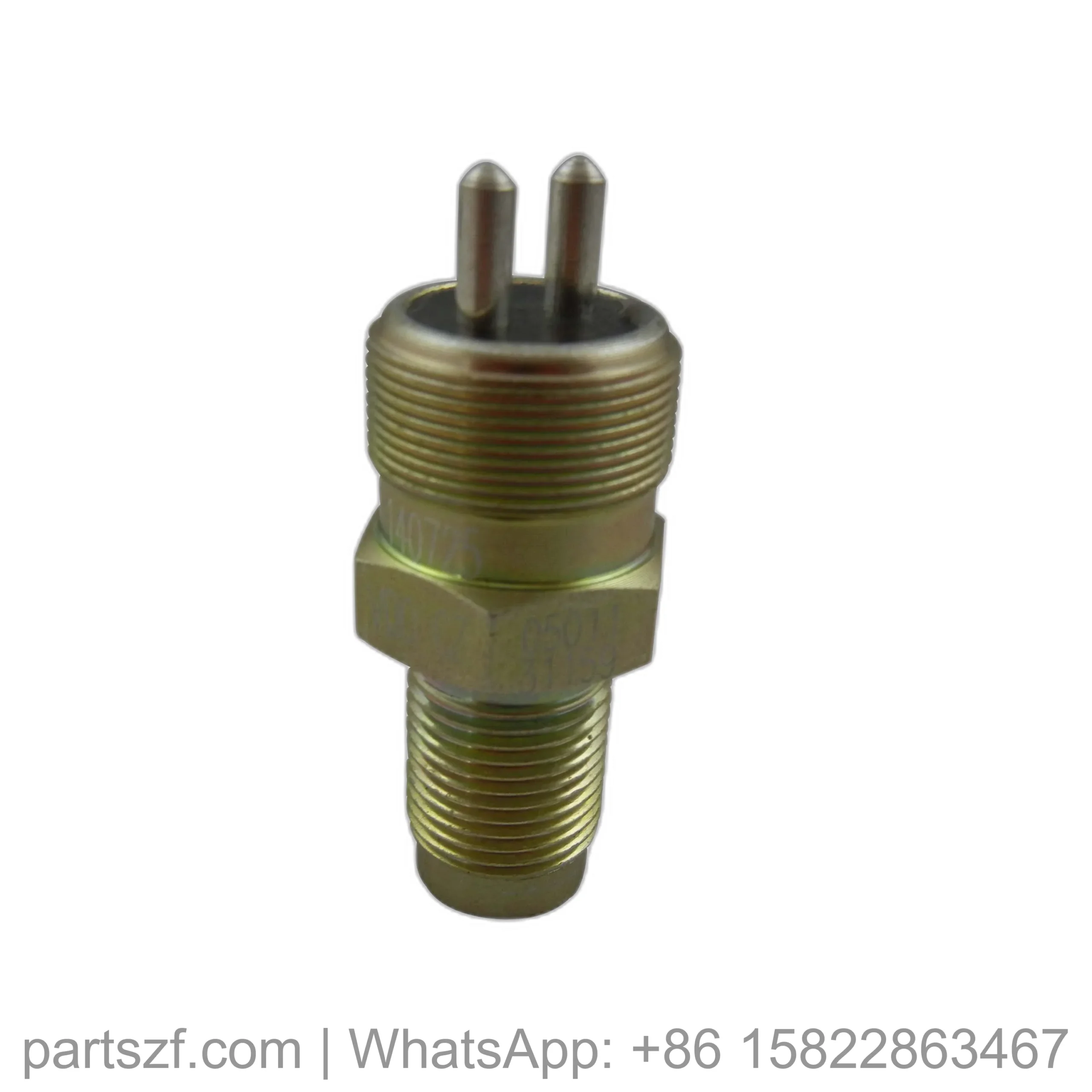

Product Photos

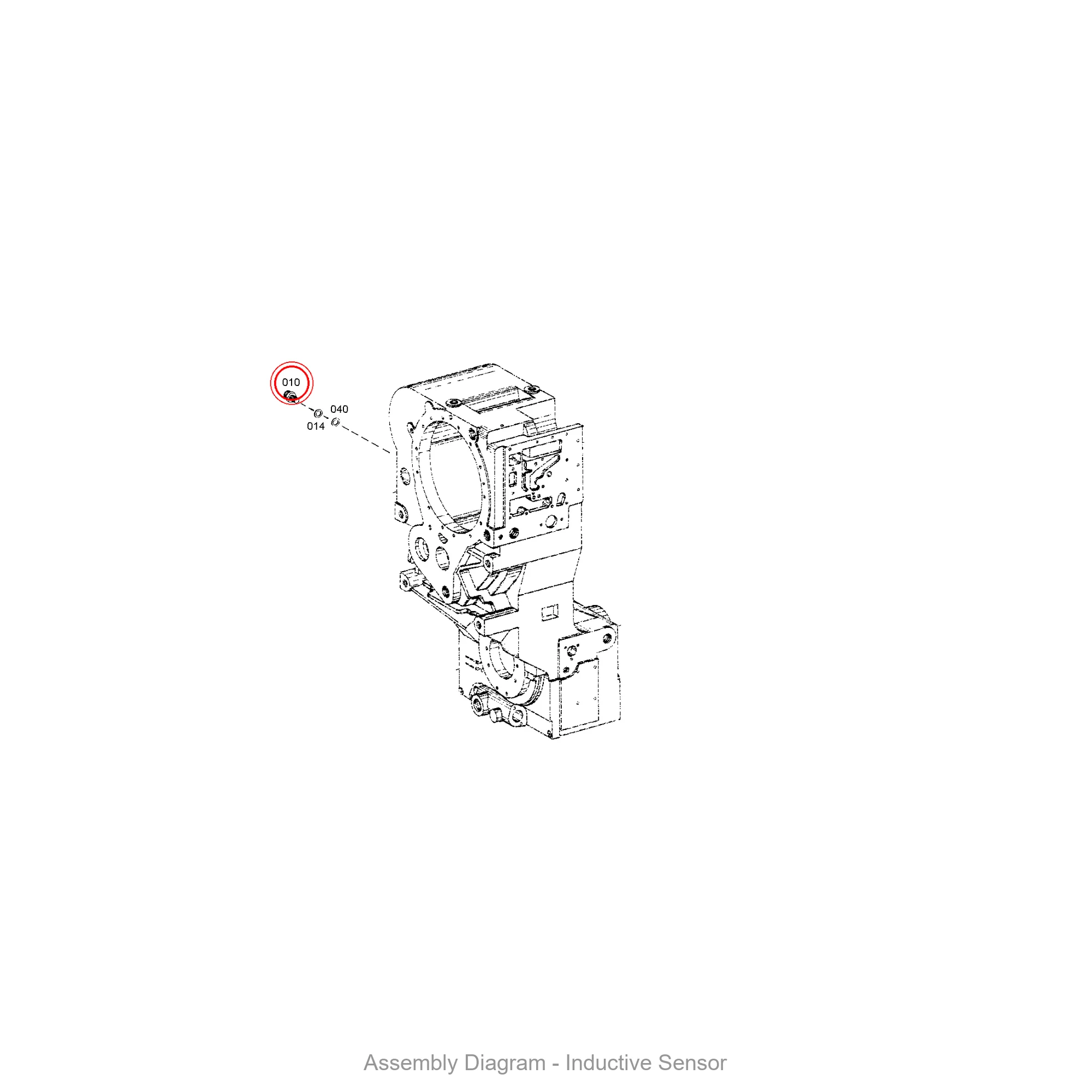

Exploded View / Assembly Diagram
The diagram below shows where ZF 0501.317.159 is located within the transmission assembly.
ZF 0501.317.159 Part Context
ZF 0501.317.159 is listed in the local BOM as INDUCTIVE SENSOR. Use the exact ZF number when confirming replacement or RFQ details.
Compatibility and Assembly Context
4 WG 65, 4 WG 65 II(D)
Cross Reference
860546802, SP100016
Replacement Scenario
Use this inductive sensor listing to confirm the part number, assembly section, and image evidence before procurement.
Specification Snapshot
| ZF Number | 0501.317.159 |
|---|---|
| Name | INDUCTIVE SENSOR |
| Sections | INDUCTIVE SENSOR |
Related PartsZF Hubs
FAQ
Can this part be ordered directly from the number?
Use the ZF number as the primary lookup key, then confirm assembly context and cross-reference evidence before purchase.
Does this page replace fitment confirmation?
No. Final fitment should be confirmed against the machine, transmission family, and available BOM or diagram evidence.
